Crestron DM-RMC-SCALER-C User Manual

DigitalMedia 8G+ Receiver Crestron DM-RMC-SCALER-C
14
•
DigitalMedia 8G+ Receiver: DM-RMC-SCALER-C Operations & Installation Guide – DOC. 7231B

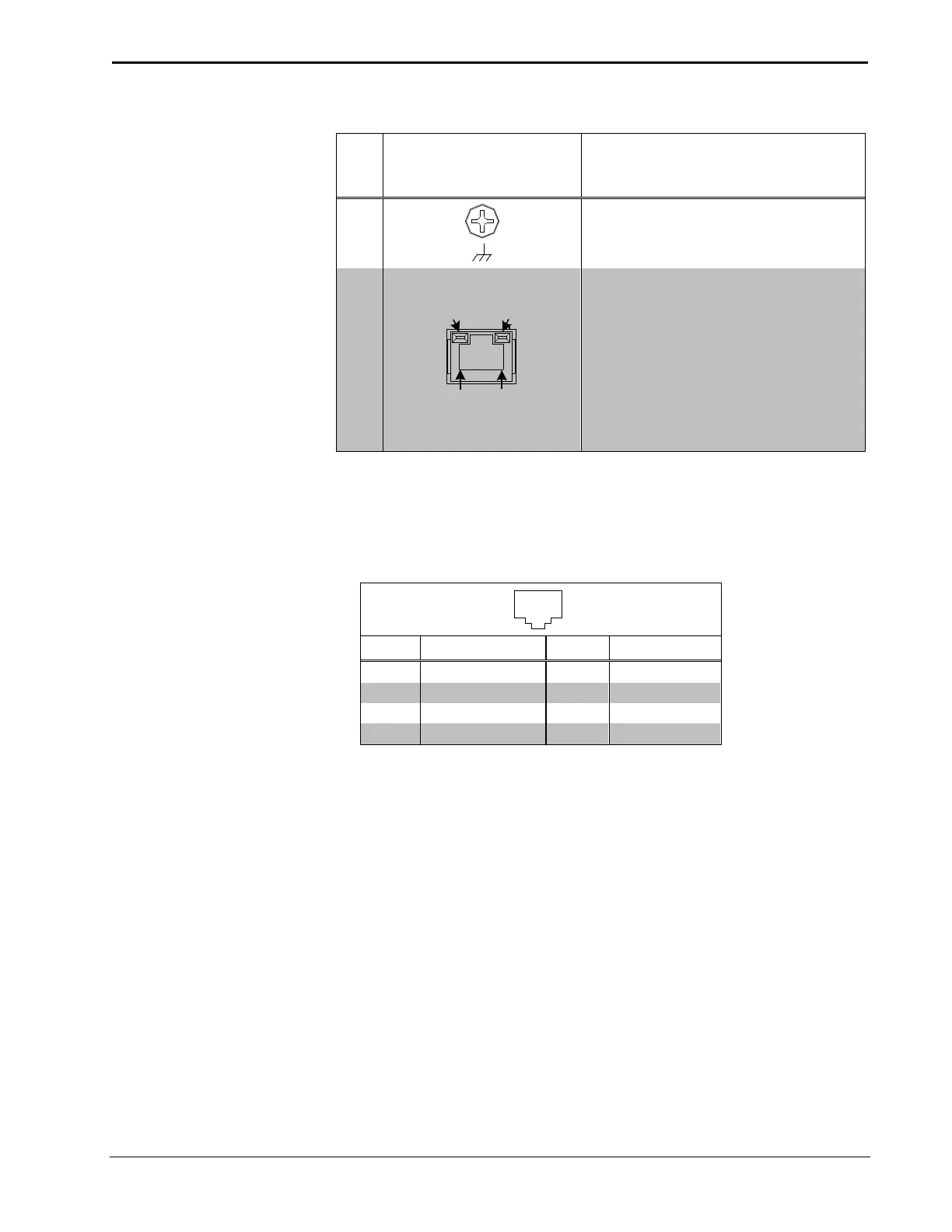

Connectors, Controls, and Indicators (Continued)
# CONNECTORS,
1
CONTROLS, AND
INDICATORS
DESCRIPTION
13
G
(1) 6-32 screw, chassis ground lug
14 DM IN
4
Amber
LED
Green
LED
Pin 1
Pin 8
(1) 8-pin RJ-45 female, shielded, with
two LED indicators;
DM 8G+ input, HDBaseT compliant;
Connects to DM 8G+ output of a DM
switcher, transmitter, or other DM device
or to an HDBaseT device via CAT5e or
Crestron DM-CBL-8G cable;
5
Green LED indicates DM link status;
Solid amber LED indicates HDCP video;
Blinking amber LED indicates non-HDCP
video
1. Interface connectors for the COM and IR ports are provided with the unit.
2. The HDMI output requires an appropriate adapter or interface cable to accommodate a DVI signal.
CBL-HD-DVI interface cables sold separately.
3. Maximum string length for serial commands sent via the IR port should be no greater than
40 characters.
4. The DM IN port consists of one RJ-45 connector. Refer to the following table for the
connector pinouts.
DM IN Connector Pinouts
1 8
PIN # WIRE COLOR PIN # WIRE COLOR
1 Orange/White 5 Blue/White
2 Orange 6 Green
3 Green/White 7 Brown/White
4 Blue 8 Brown
5. For DM 8G+ or HDBaseT wiring, use Crestron DM-CBL-8G DigitalMedia 8G cable, Crestron
DM-CBL DigitalMedia cable, Crestron DM-CBL-D DigitalMedia D cable, or third-party CAT5e (or
better) UTP or STP. Maximum wire length for DM 8G+ is 330 feet (100 meters) between devices.
Shielded cable and connectors are recommended to safeguard against unpredictable environmental
electrical noise which may impact performance at resolutions above 1080p. For complete system
design guidelines, refer to the Crestron DigitalMedia Design Guide (Doc. 4546). DM 8G+ is
compatible with HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment.
All wire and cables sold separately.

Crestron DM-RMC-SCALER-C Specifications

General

Product color	Black
Heat dissipation	41 BTU/h
Housing material	Metal
Scaled resolutions	640 x 480, 800 x 600, 848 x 480, 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 768, 1280 x 800, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1600 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200
RJ-45 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC adapter frequency	50/60 Hz
AC adapter input current	0.75 A
AC adapter input voltage	100-240 V

Weight and Dimensions

Depth	37 mm
Width	194 mm
Weight	870 g
