Operations & Installation Guide – DOC. 7231B DigitalMedia 8G+ Receiver: DM-RMC-SCALER-C
•
17

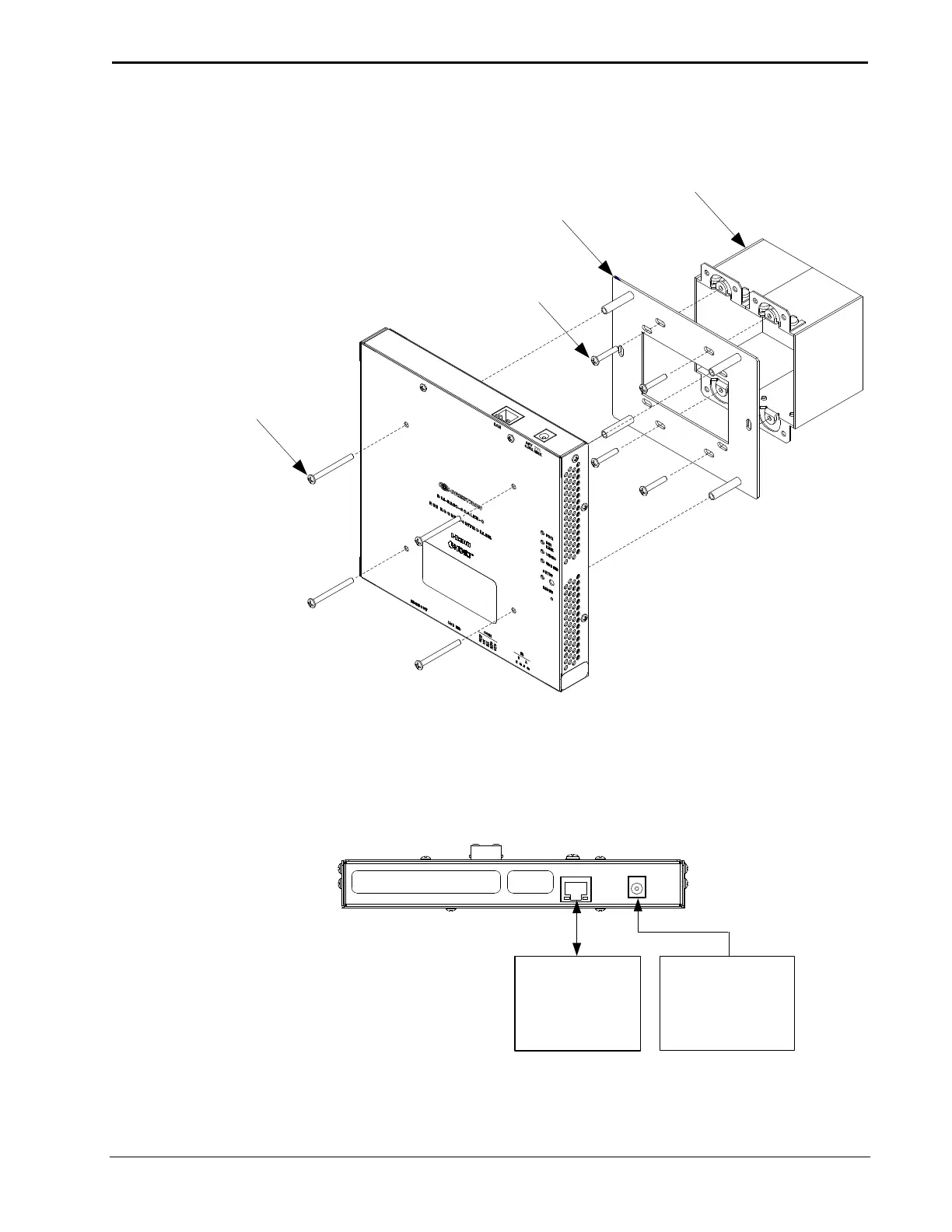

Mounting the DM-RMC-SCALER-C
2-Gang
Electrical Box
(Not Included)
Mounting
Bracket
(2021253)
#6-32 x 3/4”
Slot Head Screws (4)
(2009211)
#6-32 x 1”
Phillips Head Screws (4)
(2007250)
Hardware Hookup
Make the necessary connections as called out in the following illustrations. Refer to
“Network Wiring” on page 15. Apply power after all connections have been made.
Hardware Connections for the DM-RMC-SCALER-C (Top Panel View)
LAN:
10BASE-T/
100BASE-TX
Ethernet to Local
Network Device
24 V
0.75A MAX:
From Power Pack
(Included)

Crestron DM-RMC-SCALER-C Specifications

General

Product color	Black
Heat dissipation	41 BTU/h
Housing material	Metal
Scaled resolutions	640 x 480, 800 x 600, 848 x 480, 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 768, 1280 x 800, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1600 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200
RJ-45 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC adapter frequency	50/60 Hz
AC adapter input current	0.75 A
AC adapter input voltage	100-240 V

Weight and Dimensions

Depth	37 mm
Width	194 mm
Weight	870 g
