Crestron DM-RMC-SCALER-C User Manual

DigitalMedia 8G+ Receiver Crestron DM-RMC-SCALER-C
18
•
DigitalMedia 8G+ Receiver: DM-RMC-SCALER-C Operations & Installation Guide – DOC. 7231B

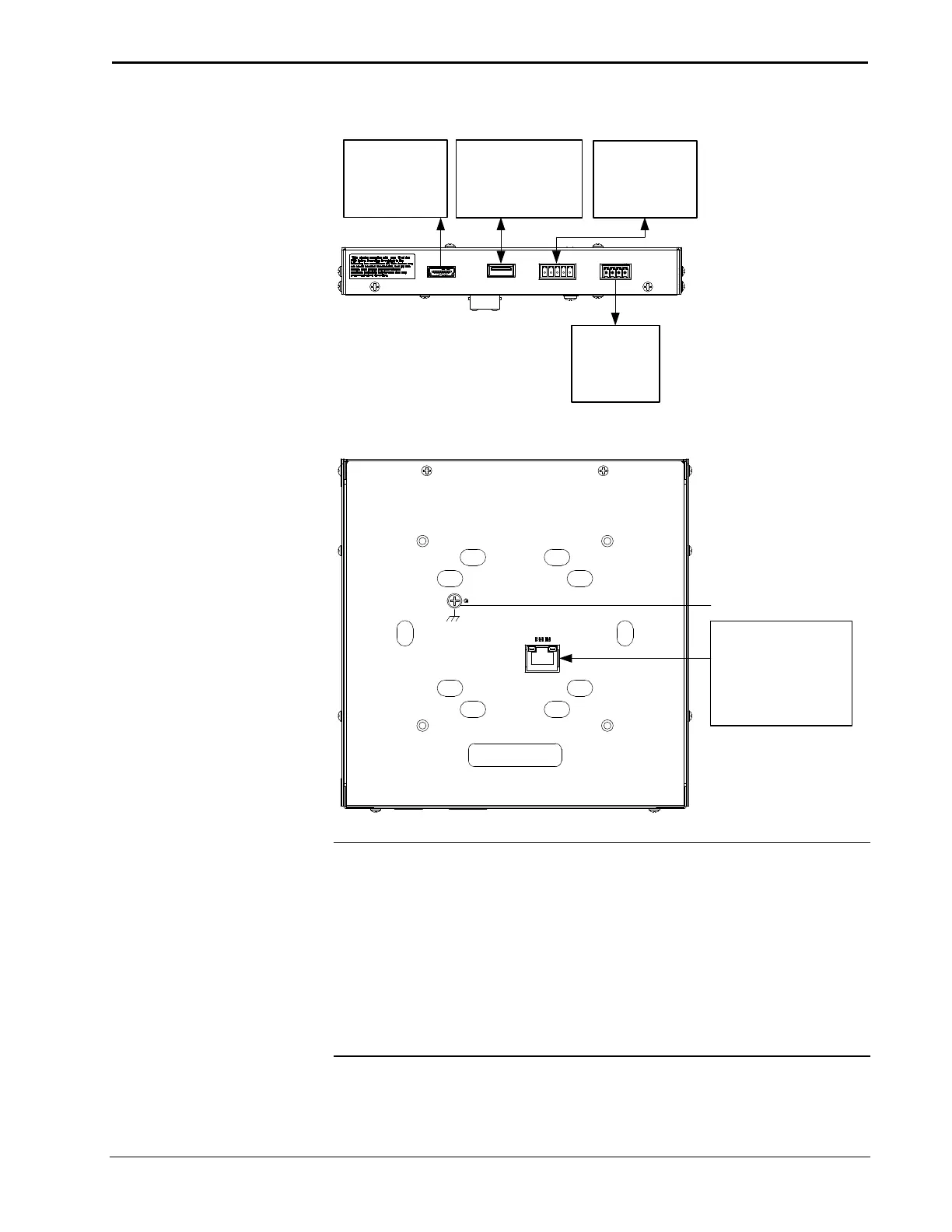

Hardware Connections for the DM-RMC-SCALER-C (Bottom Panel View)
HDMI OUT:
Digital Video/
Audio Output
USB HID:
From USB
HID-Compliant
Device
COM:
To RS-232
Device
IR:
To IR
Controllable
Device
Hardware Connections for the DM-RMC-SCALER-C (Rear Panel View)
Ground
DM IN:
From DM Switcher,
Transmitter, or Other
DM Device or to
HDBaseT Device
NOTE: Ensure that the unit is properly grounded by connecting the chassis ground
lug to an earth ground (building steel).
NOTE: For DM 8G+ or HDBaseT wiring, use Crestron DM-CBL-8G DigitalMedia
8G cable, Crestron DM-CBL DigitalMedia cable, Crestron DM-CBL-D
DigitalMedia D cable, or third-party CAT5e (or better) UTP or STP
. Maximum wire
length for DM 8G+ is 330 feet (100 meters) between devices.
Shielded cable and
connectors are recommended to safeguard against unpredictable environmental
electrical noise which may impact performance at resolutions above 1080p. For
complete system design guidelines, refer to the Crestron DigitalMedia Design Guide
(Doc. 4546). DM 8G+ is compatible with HDBaseT Alliance specifications for
connecting to HDBaseT compliant equipment. All wire and cables sold separately.

Crestron DM-RMC-SCALER-C Specifications

General

Product color	Black
Heat dissipation	41 BTU/h
Housing material	Metal
Scaled resolutions	640 x 480, 800 x 600, 848 x 480, 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 768, 1280 x 800, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1600 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200
RJ-45 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC adapter frequency	50/60 Hz
AC adapter input current	0.75 A
AC adapter input voltage	100-240 V

Weight and Dimensions

Depth	37 mm
Width	194 mm
Weight	870 g
