DigitalMedia 8G+ Receiver: DM-RMC-SCALER-C Operations & Installation Guide – DOC. 7231B
USB Communication via DM Switcher
DM SWITCHER
PC Running
Crestron Toolbox
DM 8G+
LAN
24 V
0.75A
MAX
PWR
DM
LIN K
VIDEO
USB HID
SETUP
RESET
DM-RMC-SCALE R-C
DM ROOM CONTROLLER
HDMI OUT USB HID
COM
IR
1 2
S G S G
GND
TX
RX
RTS
CTS
DM-RMC-SCALER C
USB

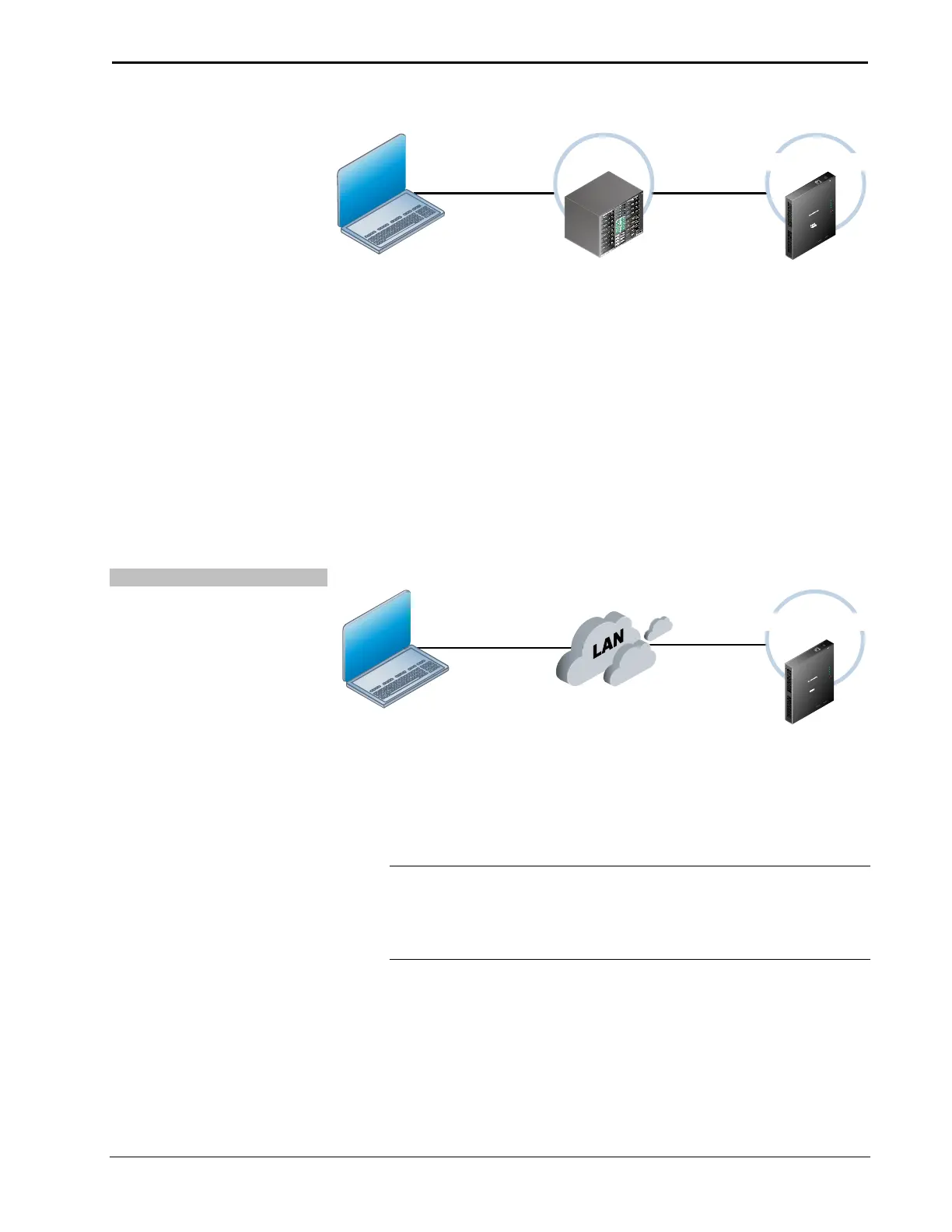

To establish USB communication between the PC and the DM-RMC-SCALER-C
via a DM switcher:
1. Use the Address Book in Crestron Toolbox to create an entry using the
expected communication protocol (USB). When multiple USB devices are
connected, identify the DM switcher by entering “DM-MD8X8”,
“DM-MD16X16”, or “DM-MD32X32” in the Model text box, the unit’s
serial number in the Serial text box, or the unit’s hostname in the Hostname
text box. The hostname can be found in the “System Info” window in the
section marked Ethernet; however, communications must be established in
order to see this information in the “System Info” window.
2. Display the DM-RMC-SCALER-C’s “System Info” window
(Tools | System Info); communications are confirmed when the device
information is displayed.
Via LAN Port
TCP/IP Communication via LAN Port of DM-RMC-SCALER-C
PC Running
Crestron Toolbox
DM-RMC-SCALER C
LAN 24 V
0.75A MAX
PWR
DM
LIN K
SETUP
RESET
DM-RMC-SCALE R-C
DM ROOM CONTROLLER
HDMI OUT USB HID
COM
IR
1 2
S G S G
GND
TX
RX
RTS
CTS
To establish TCP/IP communication between the PC and the DM-RMC-SCALER-C
via the LAN port of the DM-RMC-SCALER-C:
1. Use the Device Discovery Tool in Crestron Toolbox to find the IP address
of the DM-RMC-SCALER-C. The tool is available in Toolbox version
1.15.143 or later.
NOTE: When the DM-RMC-SCALER-C is used in a standalone
configuration (without a DM switcher), DHCP is enabled by default.
If desired, a default IP address (192.168.1.245) can be assigned by holding
down its SETUP button while applying power. This IP address overwrites
any previous settings and remains until it is changed manually.
2. Use the Address Book in Crestron Toolbox to create an entry for the
DM-RMC-SCALER-C using the TCP connection type, and enter the IP
address of the DM-RMC-SCALER-C.
3. Display the DM-RMC-SCALER-C’s “System Info” window
(Tools | System Info); communications are confirmed when the device
information is displayed.

Crestron DM-RMC-SCALER-C Specifications

General

Product color	Black
Heat dissipation	41 BTU/h
Housing material	Metal
Scaled resolutions	640 x 480, 800 x 600, 848 x 480, 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 768, 1280 x 800, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1600 x 900, 1680 x 1050, 1920 x 1080, 1920 x 1200
RJ-45 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
AC adapter frequency	50/60 Hz
AC adapter input current	0.75 A
AC adapter input voltage	100-240 V

Weight and Dimensions

Depth	37 mm
Width	194 mm
Weight	870 g
