DigitalMedia 8G+™ Transmitter 201 Crestron DM-TX-201-C

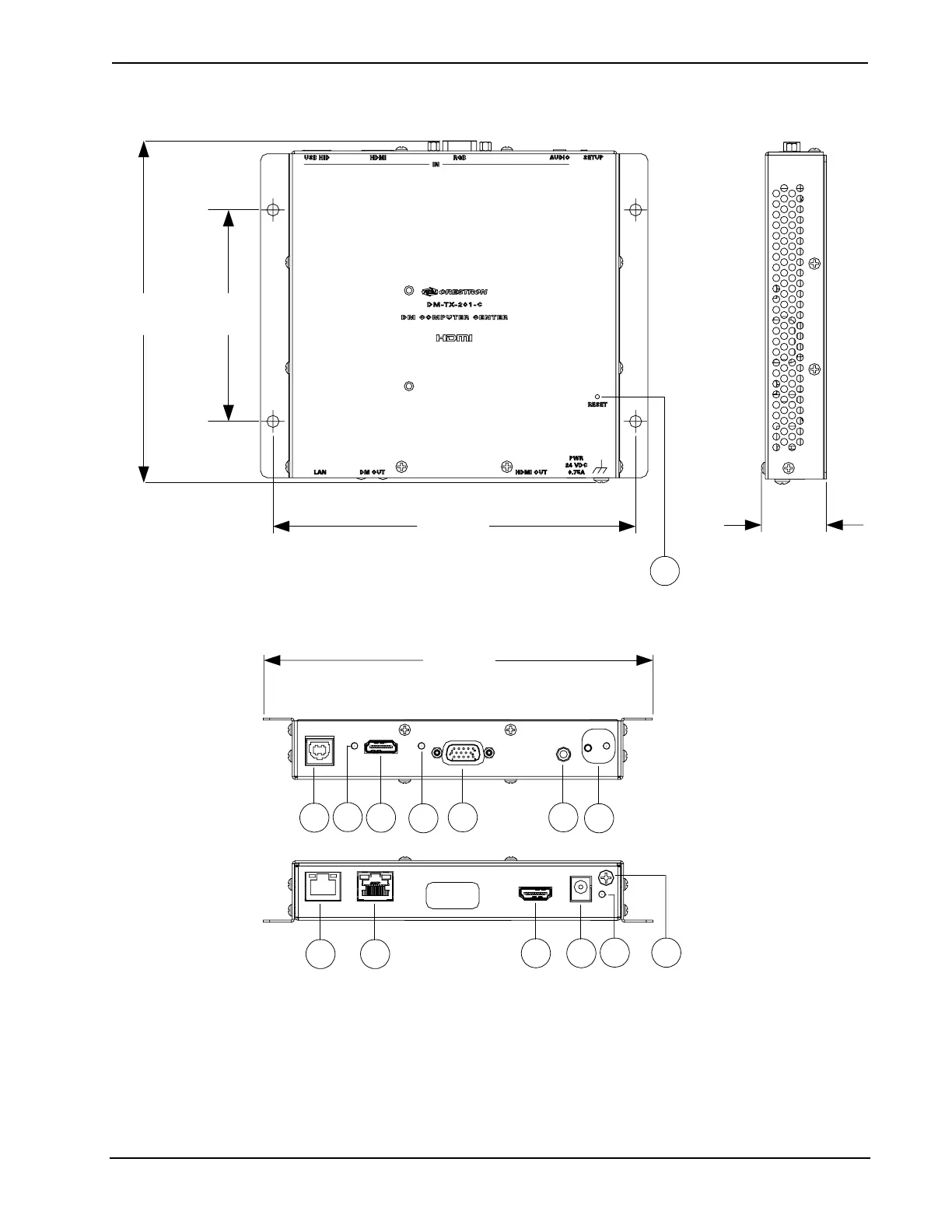

DM-TX-201-C Overall Dimensions (Front and Side Views)
1.24 in
(32 mm)
4.00 in
(102 mm)
6.89 in
(175 mm)
6.47 in
(165 mm)
1
DM-TX-201-C Overall Dimensions (Top and Bottom Views)
7.36 in
(187 mm)
2
3
4
5
6 7
8
9 10
11 12
13 14
10 • DigitalMedia 8G+™ Transmitter 201: DM-TX-201-C Operations & Installation Guide – DOC. 6958B
