Crestron TPS-6 Isys™ 5.7” Tilt Touchpanel
NOTE: When touching the screen during calibration, be as accurate as possible.
Use the tip of a capped pen or the eraser end of a pencil. To cancel calibration and
return to the MAIN MENU without saving calibration data, create a calibration error
by touching the screen in the same spot two times. If calibration has not been started,
you can return to the MAIN MENU by touching RETURN.
SETUP
To enter the SETUP MODE menu, touch Setup on the MAIN MENU.

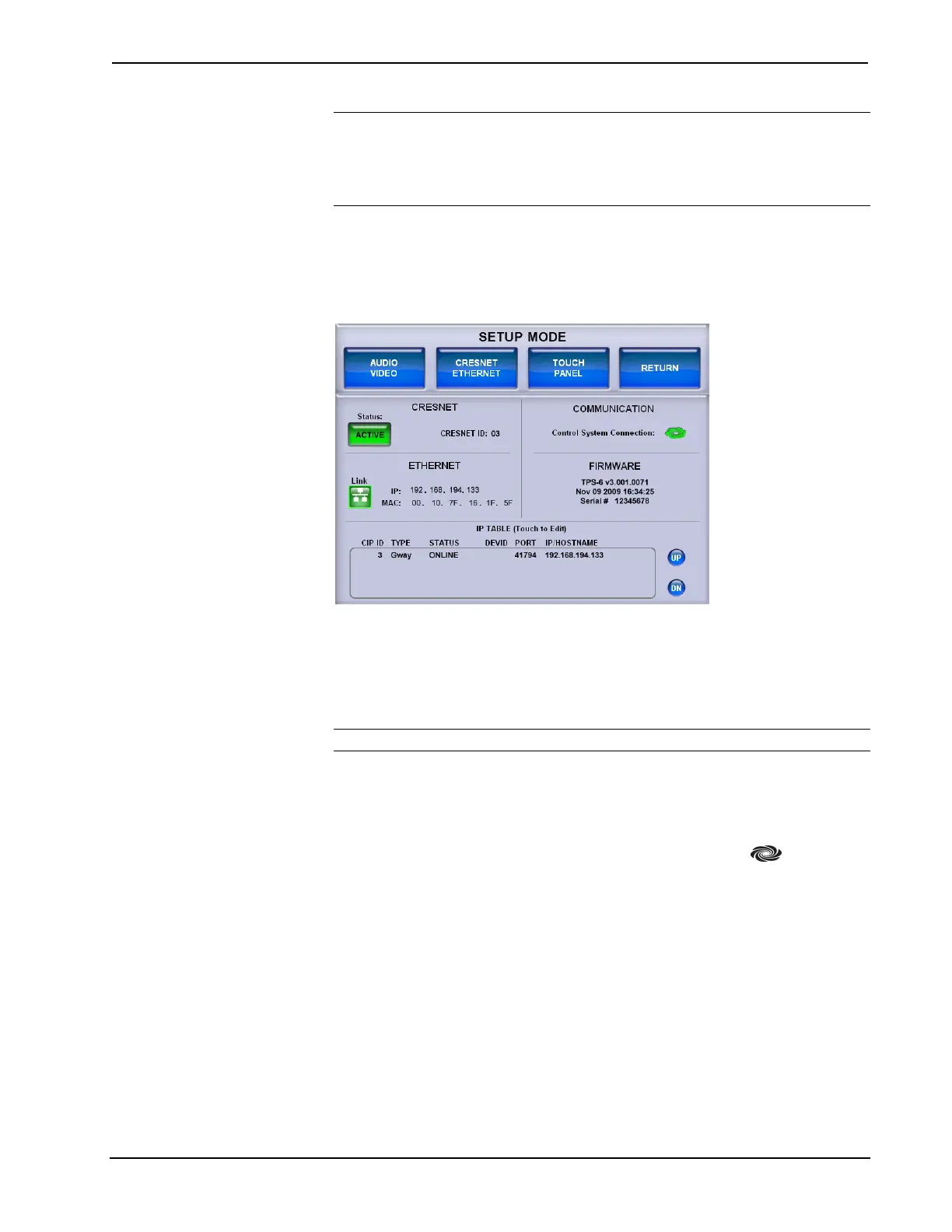

SETUP MODE Menu
The SETUP MODE menu offers a series of buttons which open additional menus
and displays that are detailed in subsequent paragraphs. After setup parameters have
been selected, touch RETURN to go to the previous menu. When all setup
parameters have been selected, touch RETURN repeatedly to go back to the MAIN
MENU.
NOTE: All touchpanel settings are automatically saved in non-volatile memory.
The CRESNET section displays Cresnet connection status and ID.
The ETHERNET section displays Ethernet Link status, along with the IP and MAC
address.
The COMMUNICATION section displays the Crestron Swirl logo
, which
illuminates to indicate the status of your connection to the control system(s):
• Green Connected (via Ethernet or Cresnet)
• Blue Connected to some but not all of the control systems listed in IP
table (Ethernet only)
• Yellow Network trouble (no CIP communication with a control system, or
no Cresnet packets addressed to panel)
• Red Not connected to any control system (via Ethernet or Cresnet)
The FIRMWARE section displays the firmware version, date and time of the
firmware build and the touchpanel serial number.
Operations Guide – DOC. 6945A Isys™ 5.7” Tilt Touchpanel: TPS-6 • 13
