Crestron TSS-770 Quick Start

l

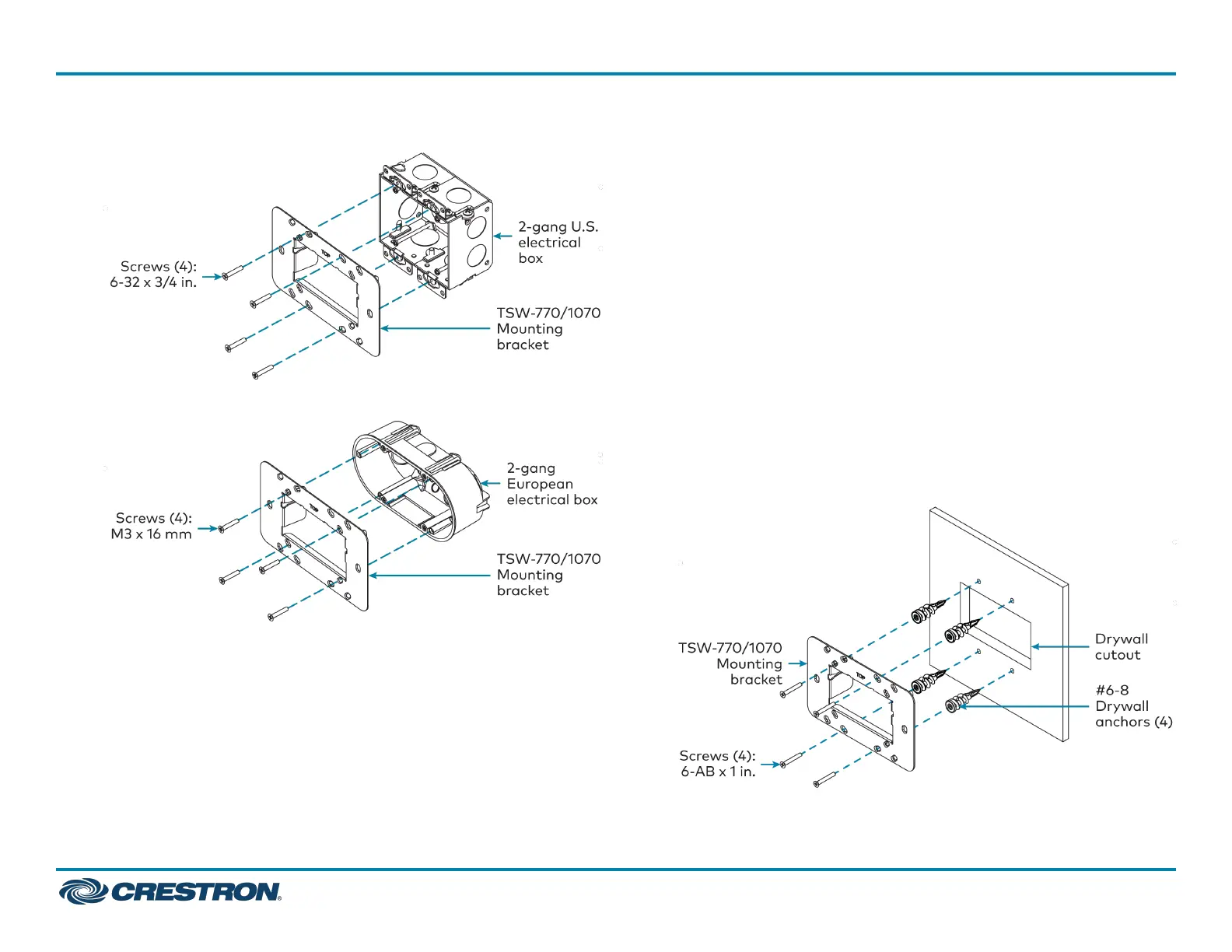

For U.S. installations, use the four 6-32x3/4in.screws.
l
For European installations, use the four M3x16mmscrews.
l
For U.K. installations(notpictured),usethetwoM3.5x25mm
screws to attach the mounting bracket to the electrical box. Insert
the screws through the center openings in the left and right sides of
the mounting bracket.
Drywall Mounting
Mounting hardware is provided with the touch screen for drywall
installations without an electrical box. Using this hardware will ensure
that the bracket is completely flush with the touch screen to provide
maximum magnetic force.
To install the mounting bracket into drywall:
1. Using the inside of the mounting bracket as a template, cut a
2–1/8 x 3-5/8 in. (54 x 92 mm)holeinto the drywall. Ensure the
template is level prior to cutting the hole.
2. Align the mounting bracket with the cutout and ensure it is level.
3. Use one of the anchors to make a center mark in the drywall through
the four 2-gang openings in the template. Refer to the image below
for the required mounting holes.
4. Screw the four anchors into the drywall using the center marks as a
reference.
5. Attach the mounting bracket to the anchors using the four 6-ABx
1in.screws as shown inthe image below.
2
TSS-770 and TSS-1070
QuickStart
7 in. and 10.1 in. Room Scheduling Touch Screens

Crestron TSS-770 Specifications

General

Network Connectivity	10/100 Mbps Ethernet
Operating Temperature	32° to 104° F (0° to 40° C)
PoE	IEEE 802.3af Class 3 (12.95 W)
Memory	2 GB RAM
Display Size	7 in (178 mm) diagonal
Resolution	1024 x 600 pixels
Touch Technology	Projected capacitive
Power	PoE Class 3 (12.95 W)
Ethernet	10/100 Mbps
Mounting	Surface mount
Processor	Quad Core
