Crestron UC-SB1-CAM Getting Started

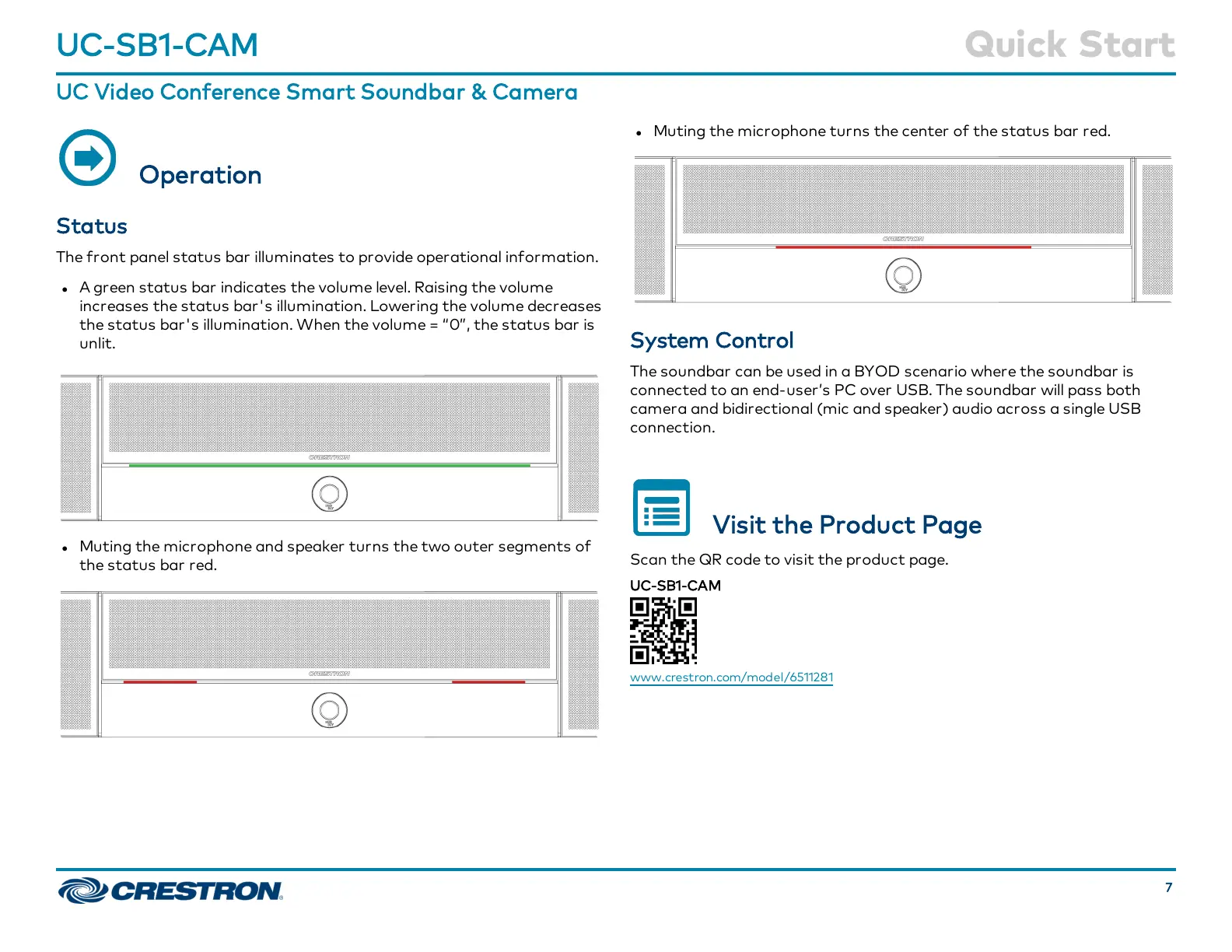

Operation
Status
The front panel status bar illuminates to provide operational information.
l A green status bar indicates the volume level. Raising the volume
increases the status bar's illumination. Lowering the volume decreases
the status bar's illumination. When the volume = “0”, the status bar is
unlit.
l Muting the microphone and speaker turns the two outer segments of
the status bar red.
l Muting the microphone turns the center of the status bar red.
System Control
The soundbar can be used in a BYOD scenario where the soundbar is
connected to an end-user’s PC over USB. The soundbar will pass both
camera and bidirectional (mic and speaker) audio across a single USB
connection.
Visit the Product Page
Scan the QR code to visit the product page.
UC-SB1-CAM
www.crestron.com/model/6511281
7
UC-SB1-CAM
QuickStart
UC Video Conference Smart Soundbar & Camera

Crestron UC-SB1-CAM Specifications

General

Microphone frequency response	20 - 8000 Hz
Megapixel	12 MP
Sensor type	CMOS
Gain control type	Auto
Optical sensor size	1/2.3 \
Aperture range (F-F)	2.8 - 2.8
Horizontal field of view	120 °
Product color	Black
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Maximum frame rate	30 fps
Supported video modes	1080p
Maximum video resolution	1920 x 1080 pixels
USB cable length	1.83 m
Power source type	AC
Power consumption (typical)	22 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, IC, UL 62368‑1, CSA C22.2 62368‑1, EN 62368‑1, IEC 62368‑1, FCC Part 15 Class B, ICES‑003 Issue 5 Class B, EN55022:2010 Class B, AS/NZS CISPR22:2010 Class B, AS/NZS CISPR 22:2010 Class B, EN55024:2010, EN61000‑3‑2:2014, EN61000‑3‑3:2013, RoHS compliant

Weight and Dimensions

Depth	100 mm
Width	1108 mm
Height	117 mm
Weight	6800 g
