7.18
Pinto BT-POM 1212 - Revision 5

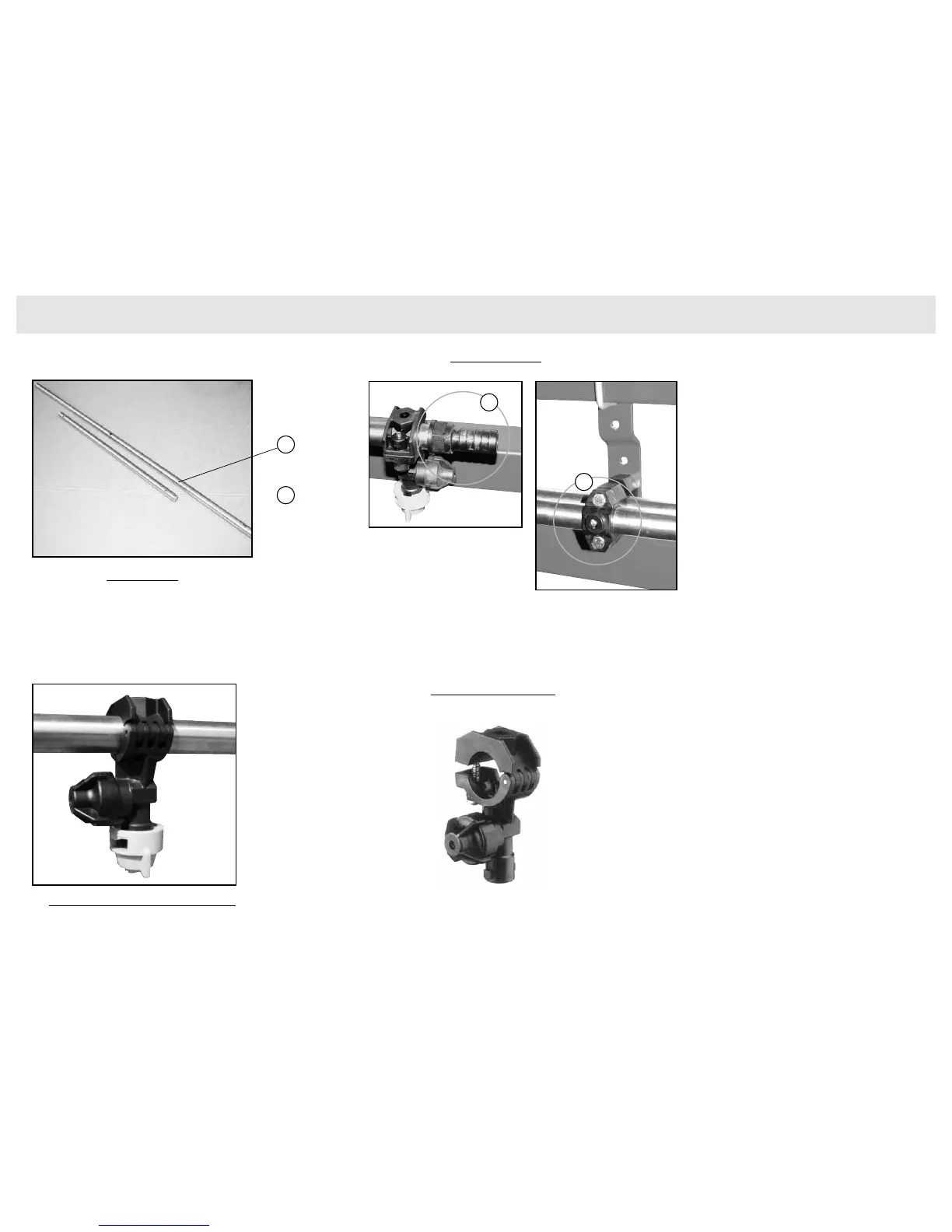

Assembly Drawings & Parts
Boom Fittings
Boom Tube
1
2
Boom Fittings
Single Non-Drip Nozzle Body
Single Nozzle Body
Part No: QJ17560A-½-NYB
(For Cap & Seal see next page)
[not shown]
4
3
1 Boom Tube:
a) 2-hole Part No: GB550200500
b) 3-hole Part No: GB550300500
c) 4-hole Part No: GB550400500
d) 5-hole Part No: GB550500500
e) 6-hole Part No: GB550600500
2 See page 7.11 Boom fl ush tap
(not shown)
3 Hosetail Part No: A100219
4 Clamp Part No: A425130
To Next Page
