Pinto BT-POM 1212 - Revision 5

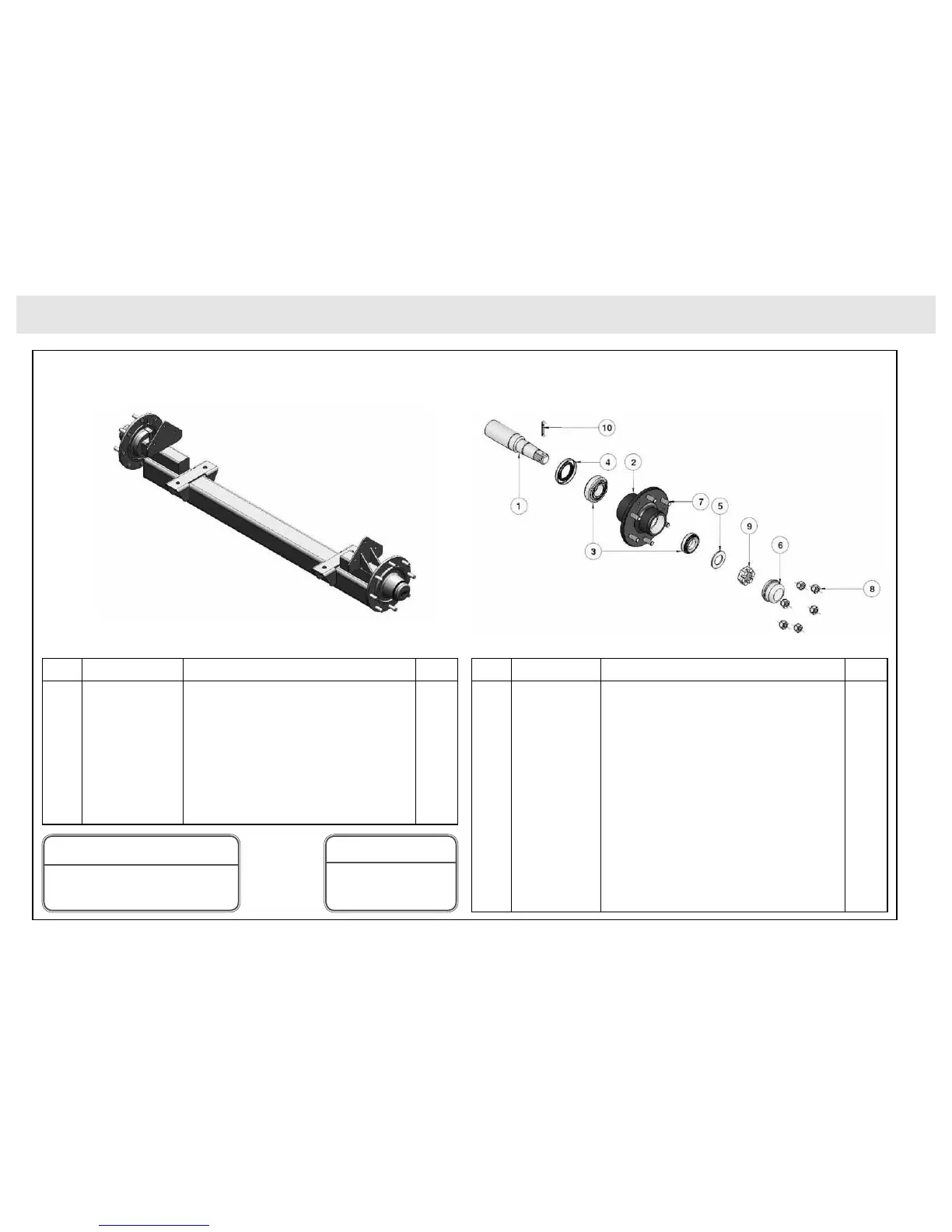

Assembly Drawings & Parts
Axles & Stub Axles
Pos Part No Description Qty
1 BP-545B STUB AXLE 80MM 8/275 PCD 2
2 MT10013 SPEED SENSOR MOUNTING BRACKET 1
3 BP-809-4 FLEXIBLE BUSH AIRRIDE SUSPENSION 2
4 HP-236CL-1A RUBBER SPRING A560-65 2
5 HP-236CL-1A-1 BUSH 32
X13.5X22.5 (FOR RUBBER SPRING) 2
6 MP-564 SHACKLE 2
7 BP-617A ROPE 2
8 BP-607 SHOCK ABSORBER 2
PART NO: BP-650-12-1 2000L SOLID AXLE
Pos Part No Description Qty
1 HP-199E-1 STUB 75SQ x 395LG
2 HP-199E-2 WHEELHUB 6/205 PCD
3 HP-199E-3 BEARING KIT 32213/32210
4 HP-199E-4 TRIPLE LIP SEAL 125 x 90 x 12mm
4 HP-199E-4A SEAL RING 70.5 x 90 x 16.5mm (not shown)
4 HP-199E-4B WEAR RING (to suit T.L.S not shown)
5 N/A N/A
6 HP-199E-6 DUST CAP (3 screws items 11 & 12)
7 HP-199F-7 WHEEL STUD M18 x 1.5 x 65
8 HP-199F -8 WHEEL NUT M18 x 1.5
9 HP-199E-9 SLOTTED/CASTLE NUT M39 x 2
10 HP-199E-10 SPLIT PIN 60 x 6mm
11 HP-199E-11 SOCKET HEAD CAP SCREW M8 x 30
(not shown)
12 HP-199E-12 M8 RIB LOCK WASHERS (not shown)
PART NO: HP-199E STUB AXLE
Drawing are for illustration purposes only.
Please refer to the parts list.
NOTE
Parts in Italics are non-
stocked items and may need
to be ordered.
NOTE
To Next Page
