7.30
Pinto BT-POM 1212 - Revision 5
Assembly Drawings & Parts
&/,$
15)#+#/..%#4v"300
2-#/50,%23
Standard Fold - 16/18/21m Boom Fold Option, Hydraulic Fold without Wing Lift Option
Pos Part No Description Qty
1 GB750300001 ¼" BSPP Lockout Valve 2
2 GB702545001 Cylinder Outer Fold 2
2 GB996000176 Seal Kit Outer Fold Cylinder 2
3 GB570500006Z Orifi ce Nipple Outer Fold 0.6mm 4
4 GBBG024889 Cylinder Inner Fold 2
4 GBBG024892 Seal Kit Inner Fold Cylinder 2
5 GB570500008Z Orifi ce Nipple Outer Fold 0.8mm 4
6 GB750300009 ¼" BSPP Lockout Valve (ST) 2
Drawing are for illustration purposes only.
Please refer to the parts list.
NOTE

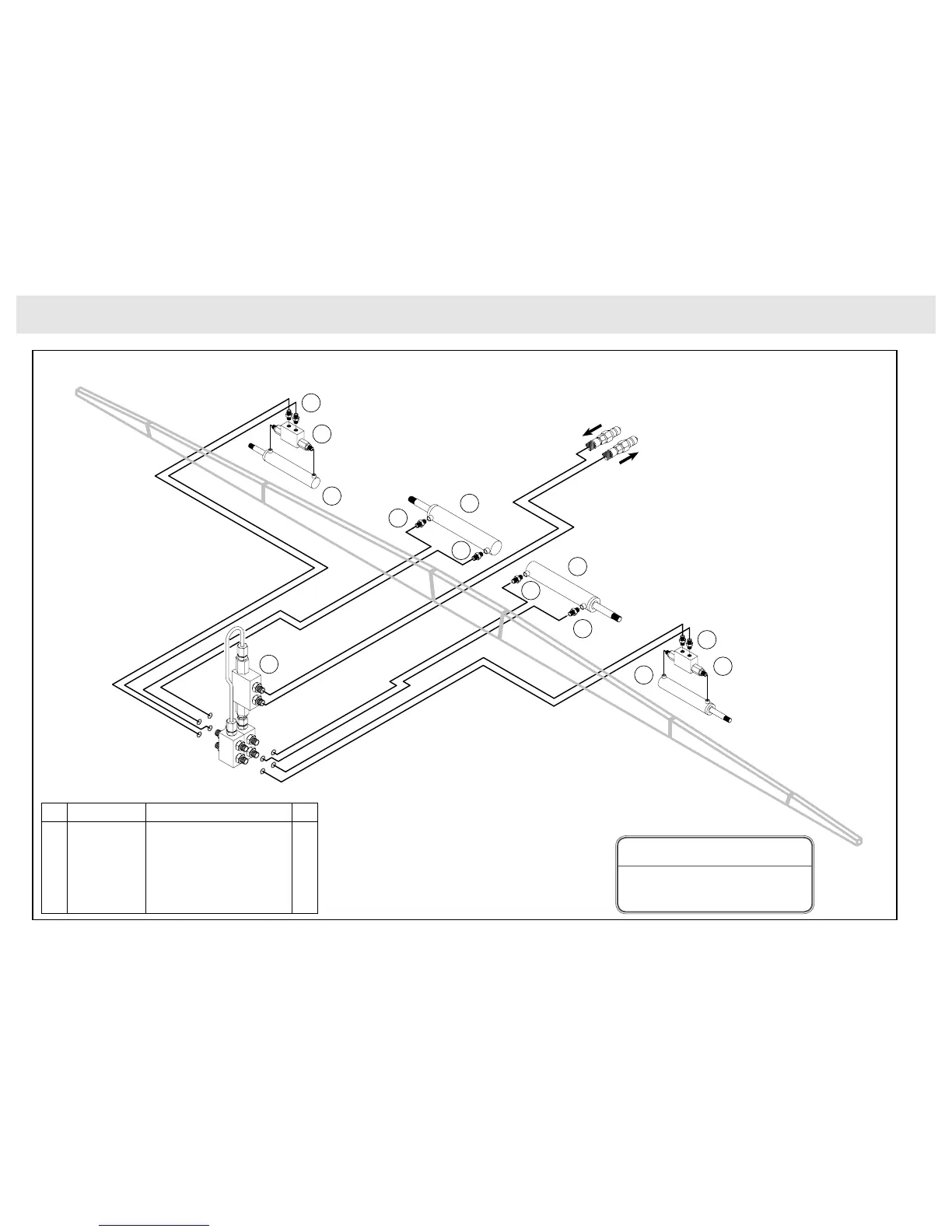

Hydraulic Plumbing Diagram
To Next Page
