7.32
Pinto BT-POM 1212 - Revision 5
Assembly Drawings & Parts
Wing Lift - 16/18/21m Boom G-Var Option, Hydraulic Fold with Winglift Option
Pos Part No Description Qty
6 GB99600174 Seal Kit G-Var Cylinder 2
7 GB570500006Z Orifi ce Nipple Outer Fold 0.6mm 4
8 GB750300009 ¼" BSSP Lockout Valve (ST) 4
9 RCV-0808 ½" BSPP Inline Check Valve 1
10 MP-630 Hyd Valve Manifold 4 Function 1
10 MP-630-1 Hyd Valve Dump 1
10 MP-630-2 Hyd Valve Double Acting 4
10 MP-630-3 Valve Coil 12v 9
Pos Part No Description Qty
1 GB750300001 ¼" BSPP Lockout Valve 1
2 GB702545001 Cylinder Outer Fold 2
2 GB996000176 Seal Kit Outer Fold Cylinder 2
3 GB570500006Z Orifi ce Nipple Outer Fold 0.6mm 4
4 GBBG024889 Cylinder Inner Fold 2
4 GBBG024892 Seal Kit Inner Fold Cylinder 2
5 GB570500008Z Orifi ce Nipple Outer Fold 0.8mm 4
6 GBBG007491 Cylinder G-Var 2
Drawing are for illustration purposes only.
Please refer to the parts list.
NOTE
15)#+#/..%#4v"3002-
#/50,%23
4/(9$2!5,)#,)&4
REFERSEPARATELIFTDRAWING

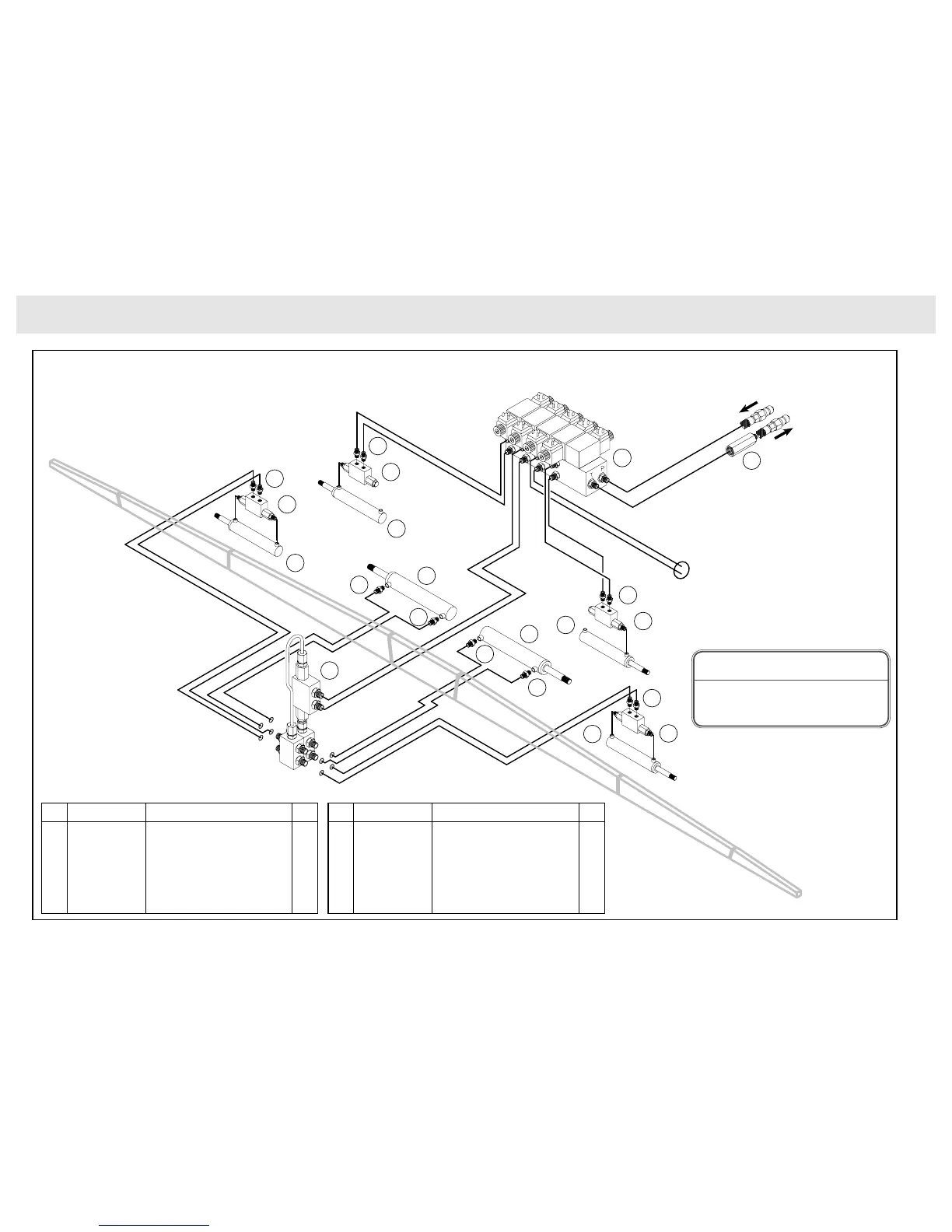

Hydraulic Plumbing Diagram
