7.36
Pinto BT-POM 1212 - Revision 5
Assembly Drawings & Parts
15)#+#/..%#4v"3002-
#/50,%23
4/(9$2!5,)#,)&4
REFERSEPARATELIFTDRAWING
Wing Lift - 24m Boom G-Var Option, Hydraulic Fold with Winglift Option
Pos Part No Description Qty
6 GB99600418 Seal Kit G-Var Cylinder 2
7 GB570500011Z Orifi ce Nipple Outer Fold 1.5mm 4
8 GB750300009 ¼" BSSP Lockout Valve (ST) 4
9 RCV-0808 ½" BSPP Inline Check Valve 1
10 MP-630 Hyd Valve Manifold 4 Function 1
10 MP-630-1 Hyd Valve Dump 1
10 MP-630-2 Hyd Valve Double Acting 4
10 MP-630-3 Valve Coil 12v 9
Pos Part No Description Qty
1 GB750300001 ¼" BSPP Lockout Valve 1
2 GBBG004138 Cylinder 24m Outer Fold 2
2 GB996000177 Seal Kit Outer Fold Cylinder 2
3 GB570500007Z Orifi ce Nipple Outer Fold 0.7mm 4
4 GBBG016908 Cylinder 24m Inner Fold 2
4 GBBG106913 Seal Kit Inner Fold Cylinder 2
5 GB570500008Z Orifi ce Nipple Outer Fold 0.8mm 4
6 GBBG703070012V Cylinder 24m G-Var 2
Drawing are for illustration purposes only.
Please refer to the parts list.
NOTE

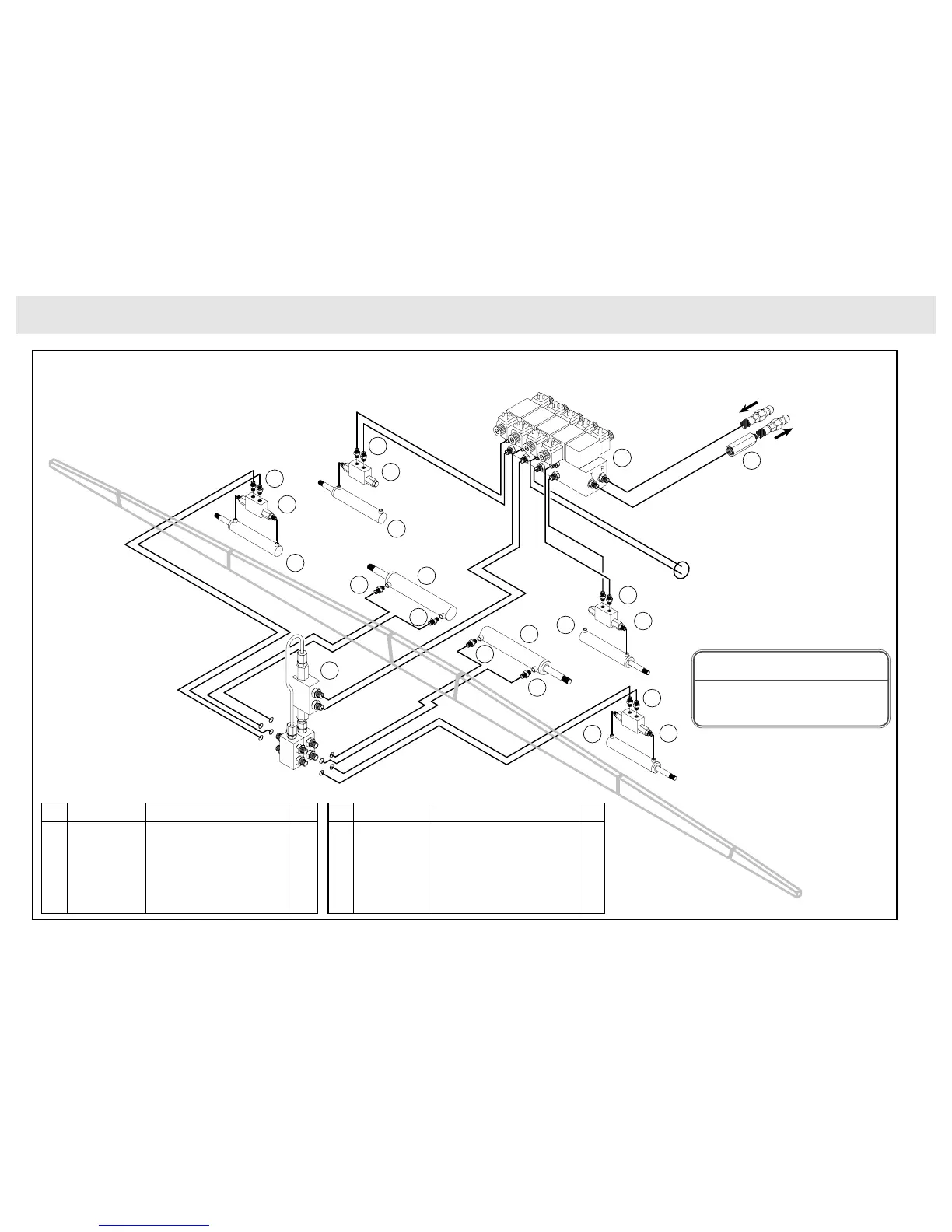

Hydraulic Plumbing Diagram
To Next Page
