Pinto BT-POM 1212 - Revision 5
Sprayer OperationCleaning - 2000 litre
Using Tank and
Equip ment Clean ers
If a cleaning agent is required (refer to
chemical label), fi rst completely fl ush the
Pinto with water as outlined in Steps 1 - 15
on page 3.10, then:
1 Fill the main tank with fresh water
to the desired level.
2 Add cleaning agent into the main
tank (use according to instructions).
3 Check the Agitator valve is open.
4 Turn the Suction Selector Valve to
source from the main tank.
5 Turn the Function Selector valve to
"Tank Rinse".
6 Start tractor and place sprayer
controls in start up position
according to Controller operating
instructions (see page 2.24).
7 Engage PTO and bring the PTO
speed up to 540 RPM.
All pumped liquid is now being
passed through the dump valve
back into the tank. The system is
not pressurised and tank agitators
are not working.
8 Pressurise the system by placing
the Master switch ON and Boom
switch number 5 ON
9 Adjust pressure to desired operating
pressure by adjusting pressure up or
down.
10 Turn the spray boom sections ON.
Fresh water now fl ushes through the
suction line, suction fi lter, pump,
agitator(s), pressure lines, boom
sections and nozzles.
11 If you require the cleaning agent to
soak or stand for a period, turn the
spray booms Off, and completely
shut down the sprayer for a period.
12 Repeat steps 7 - 10 after soaking is
completed.
13 Turn the spray booms OFF and shut
down the sprayer.
14 Pull & release the tank drain to open
the drain valve when tank when
the tank cleaning is completed.
15 After the tank is drained completely,)
fl ush the Pinto again following
steps 1 - 15, on page 3.10, with clean
water.

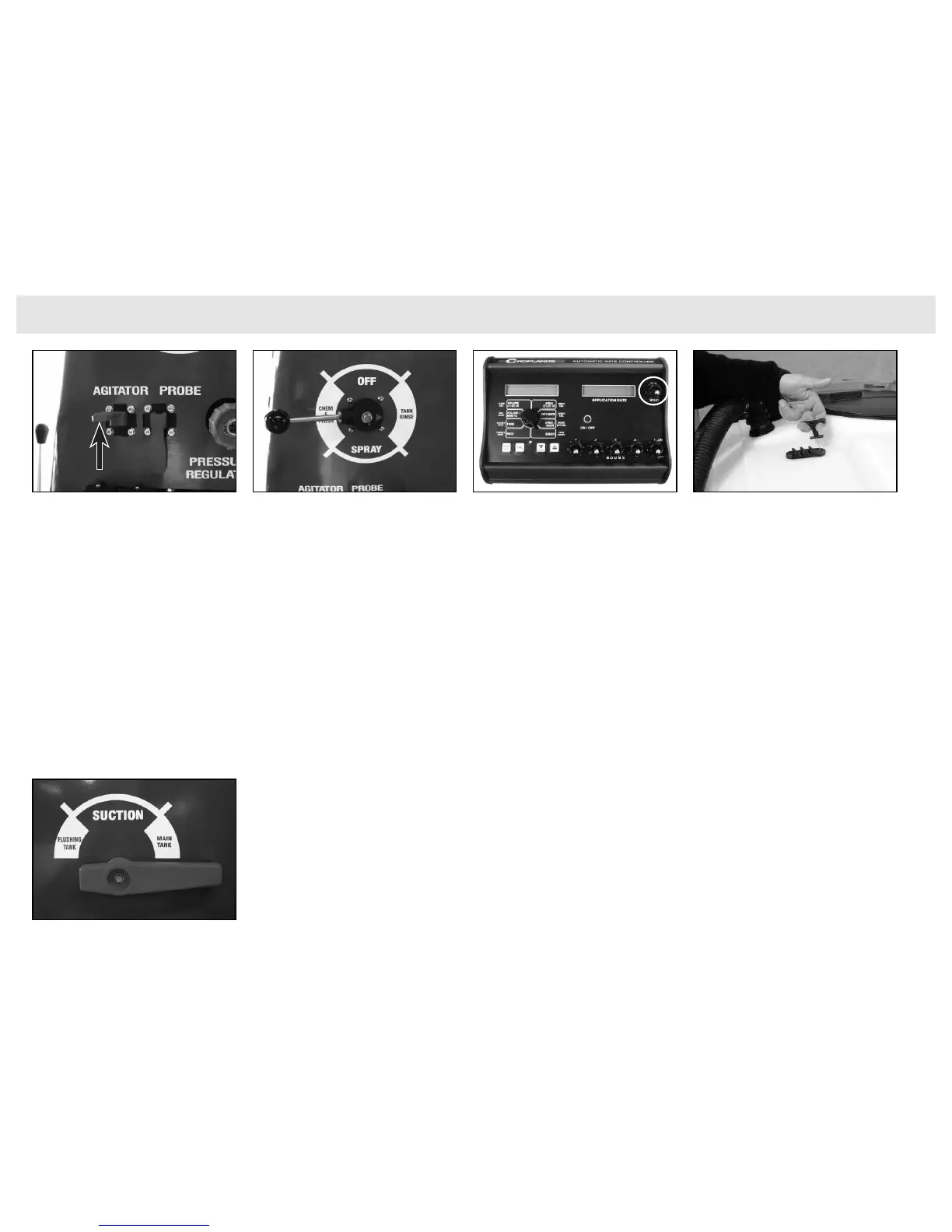

(3) Turn the Suction Selector Valve to source from the
main tank.
(14) Pull & release the tank drain to open drain valve
when the tank cleaning is completed.
(5) Turn the Function Selector valve to "Tank Rinse".
(8) Place the Master switch "On".(3) Check the Agitator Valve is open.
