3.22
Pinto BT-POM 1212 - Revision 5
Sprayer OperationChemical Mixing - 3000 Litre
m) Open the Transfer valve at the base
of the hopper to transfer chemical
mixture to the main tank.
n) To rinse the hopper, close the transfer
valve at the base of the hopper and
open the Drum Rinse valve.
o) Open the Transfer valve at the base
of the hopper to transfer the rinse
mixture to the main tank.

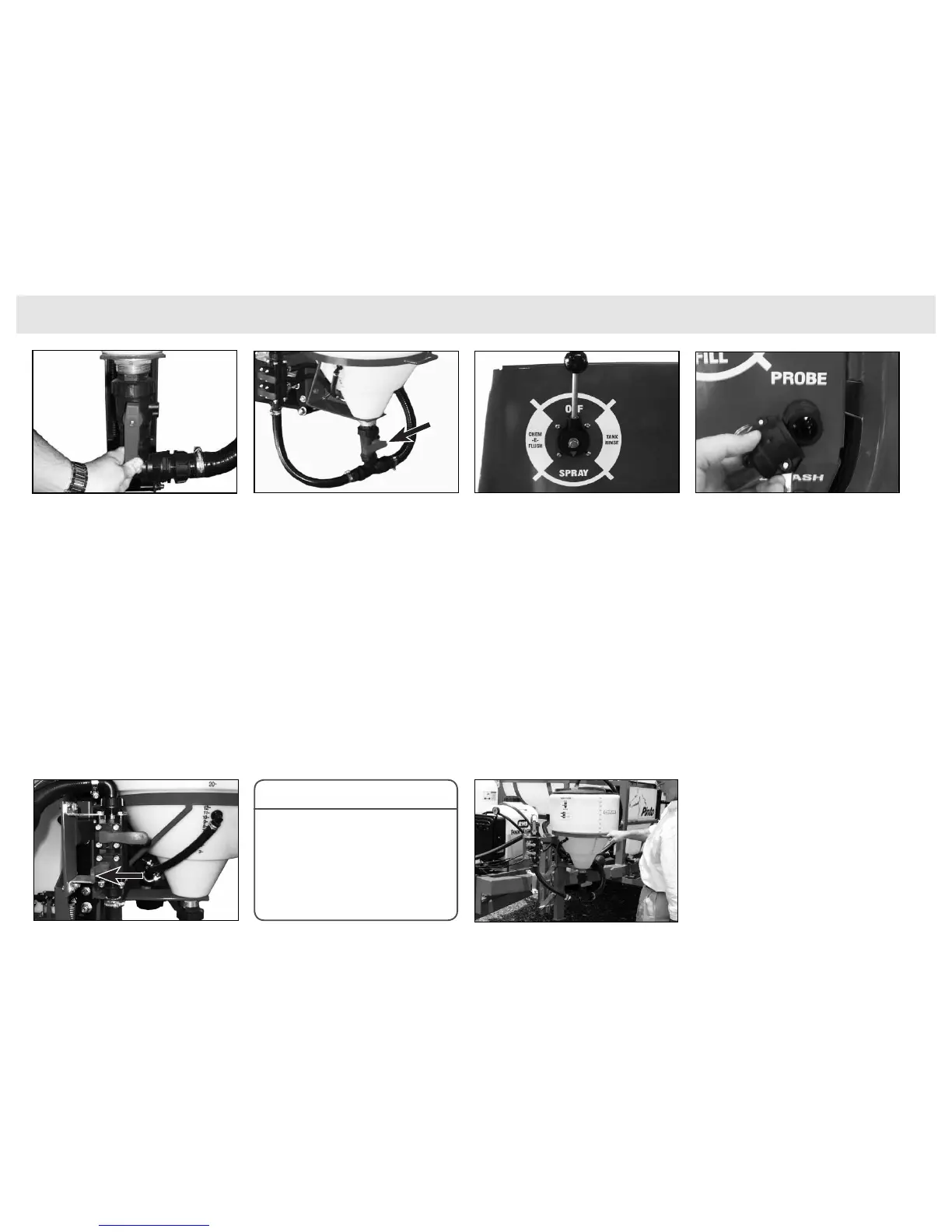

(m & o) Open Transfer valve to transfer mixture to the
main tank.
(n) Open the Drum Rinse valve to rinse the hopper.
(p) Close Transfer valve at the base of the hopper.
2 Chemical Probe
To add chemical to the main tank using
the chemical probe, follow the steps
outlined:
a) Make sure suffi cient water is added
to the main tank and the fl ush tank.
b) Remove the end cap from the Probe
inlet, and and connect the Probe
hose.
p) Close the Transfer valve at the base
of the hopper after mixture is
transfered.
(q) Return the Function Selector valve to "Spray"
position.
q) Return the Function Selector valve
to "Spray" position when completed.
r) Lift the hopper back to transport
position when mixing is completed.
IMPORTANT! Ensure agitation of main tank
continues after chemical is added to the main
tank.
NOTE
(b) Remove the end cap from the Probe inlet.
(r) Lift the hopper back to transport position.
