3.27
Pinto BT-POM 1212 - Revision 5
Section 3 Chemical Mixing - 2000 Litre
g) Place the probe into the chemical,
then open the probe valve to transfer
chemical to the main tank.
h) Close the probe valve when chemical
transfer is completed.
i) Rinse the probe and chemical
container with fresh water and repeat
steps “g & h” to transfer rinse
materials to the tank.
j) Return the Probe to its holder when
completed.
The plumbing circuit of the Pinto incorporates a
relief valve which automatically dumps pressure
when the boom is switched off.
Therefore Switch No 5 must be turned ON if
pressure is required when the boom is off, ie, for
agitation & chemical probe operation.
NOTE
d) Open the agitator valve.
e) Start the tractor and operate the
pump with PTO & tractor engine at
idling speed only.
f) Pressurise the system by placing the
Master switch ON & switch No 5 ON.
Keep boom switches OFF.
Operating the pump at faster than idling speed
may burst lines.
WARNING

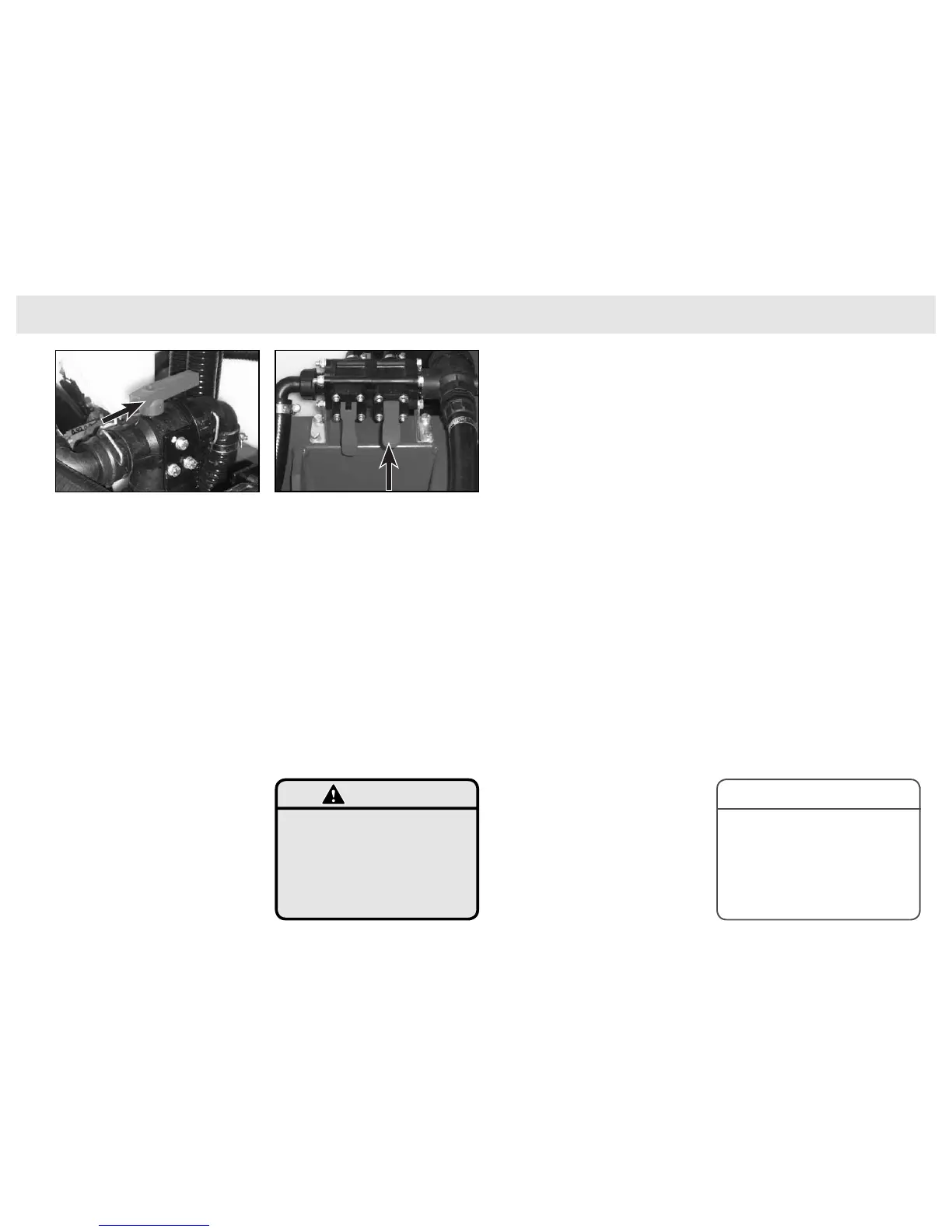

(e) Turn Directional Suction Valve to source from main
tank
c) Turn Directional Suction Valve to
source from the main tank.
To Next Page
