1.5
Pinto BT-POM 1212 - Revision 5
Section 1
Shipping Information & Product ID
Product
Identifi cation
Always use the serial number of the Pinto
when requesting service information or
when ordering parts.
Early or later models (identifi cation made
by serial number) may use different
parts, or it may be necessary to use a
different procedure for specifi c service
operations.
Shipping Information
The following shipping information is
provided but variations can occur without
prior notifi cation.
Approx Weight
Model Dry Weight
3000 litre 1820 kg (21m boom)
2000 litre 1150 kg (21m boom)
Maximum Towing Speed
Do not exceed 30 kph when towing on
roads.
Dimensions
Model W x L x H (boom folded)
3000 litre 2.9m x 6.5m x 3.0m (21m boom)
2000 litre 2.9m x 6.5m x 3.0m (21m boom)
(with boom folded)

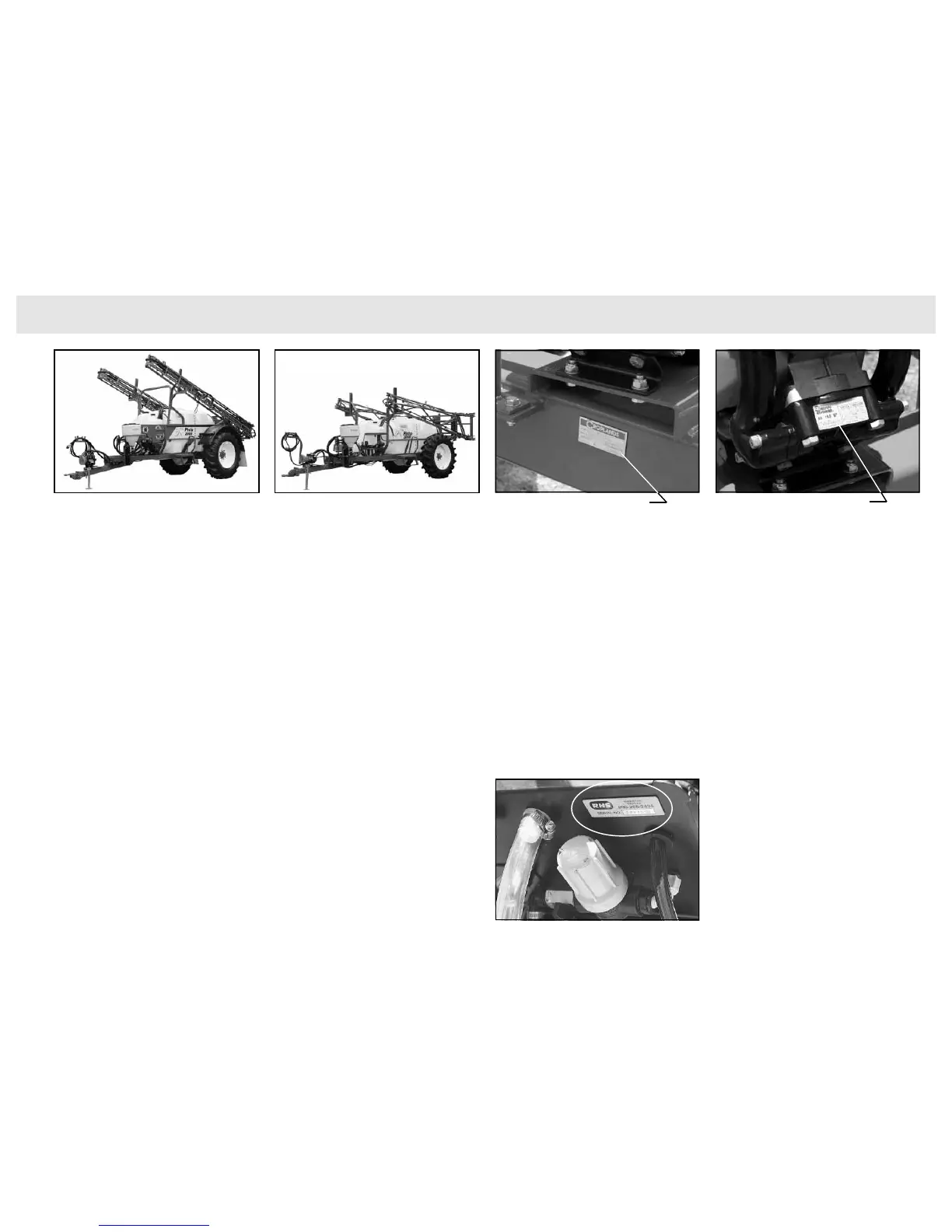

Pinto Serial Number AR Pump Serial Number
(B)
(A)
Pinto Serial Number Plate
The Pinto Serial Number Plate is located
on the main frame at the front of the frame
near the drawbar (A).
This plate shows name of man u fac tur er,
serial number, product code and date of
manufacture.
Pump Serial Number Plate
The Pump Serial Number Plate is located
on the pump (B).
This plate shows name of manufacturer,
serial number, type of pump, year of
manufacture, maximum flow rate and
maximum working pressure of the pump.
Foam Marker Serial
Number Plate
(if fi tted)
The serial number provides important
information about your RHS Foam Mark er
and may be required to obtain the correct
re place ment part(s).
The serial number plate for the marker
is located on the bottom right side of the
enclosure. It is suggested that the serial
number be recorded.
RHS Foam Marker Serial Number (if fi tted).
2000 litre Pinto.
3000 litre Pinto.
