Brush Guard
Driver Side Support

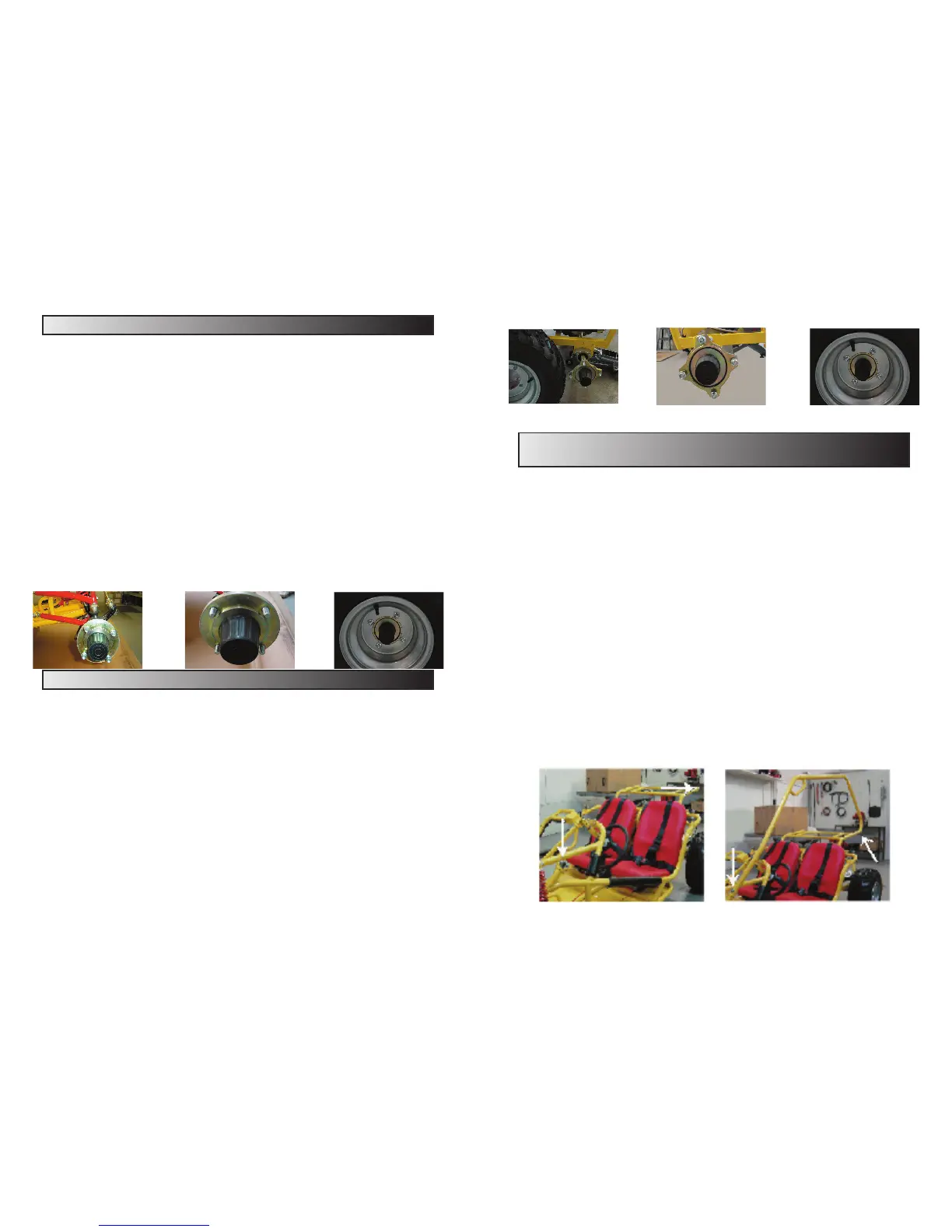

1. Remove the bolts and spacers from the two holes needed to place
the driver’s side support into place. (See Figures Below)
2. Place the long tubular section (removed from the driver’s side
while unpacking) on the kart so that the curved end of the tube
slides over the end of the tubing on the kart.
3. Place the other end of the tubing over the tube next to the front
shock that the bolt and spacers were removed from. Be sure to
align the holes in all tubing to ensure that the bolt will slide easily
through.
4. Place a spacer on each side of the tube at both locations. Be sure
that the curve in the spacer lines up against the curve of the tube.
Slide the bolt through the pre-drilled holes so that the threads are
facing the inside of the kart. Be sure that the bolt slides through
the holes in both tubes and both spacers.
5. Hand tighten the bolts to hold the tube into place. Allowing slight
movement in the brush guards will allow for easier assembly.
Front Tires
Front Tire Size - 19 x 7-8
In order to assemble the tires, you will need to raise the front end of
the go-kart. Be careful not to damage any kart components while
raising the front end. Remove the nuts from the front wheel hubs
before attempting to place the tire on. The tires for this kart are
directional tires. In order to ensure that the tires are assembled
correctly, place the tires on the hubs so that the valve stem is on the
side of the tire facing outward, and the directional arrow rotates
towards the front of the go-kart. To slide the tires on, align the holes
in the rims of the tires with the bolts on the front wheel hubs. Place
the nuts on the bolts and evenly tighten using a socket wrench. When
tightening, bolts should have a torque value between 22-29 ft/lbs.
IMPORTANT: The air pressure in the front tires should be between
12-14 psi.
Rear Tires
Rear Tire Size - 22 x 10-10
The rear of the kart needs to be raised in order to place the rear tires
on. Be careful no to damage any kart components while raising the
rear end. Remove the nuts from the tire hub before attempting to
place the tire on. In order to ensure that the tires are assembled cor-
rectly, place the tire on the hub so that the valve stem faces outward,
and the directional arrow rotates towards the front of the go-kart. To
slide the tire on, align the holes in the rim of the tire with the bolts on
the rear wheel hubs. Place the nuts on the bolts and evenly tighten
using a socket wrench. When tightening, the bolts should have a
torque value between 22-29 ft/lbs.
IMPORTANT: The air pressure in the rear tires should be between
12-14psi.
