4. Be sure that the rounded caps located on the ends of the front
support tube fit around each side support.
5. With the holes in all tubes aligned, hand tighten the bolts into
place on each side. Be sure that the spacer is located on the
outside of each side support and fits rounded edge against the
tube.
Rear/Center Support Tube
1. The rear/center support tube is “T” shaped and has a bolt in both
ends of the crossbar.
2. Remove the bolts and spacers from each end of the crossbar.
3. Remove the bolt and spacer from the third contact point centered
directly behind the seats.
4. Slide the bottom of the Rear/Center support tube over the third
contact point. (See Figures Below)
5. Align the ends of the Rear/Center support crossbar with the
pre-drilled holes in the side supports. Be sure to align using the
rear holes in the side supports.
1
2
3
2
1
3

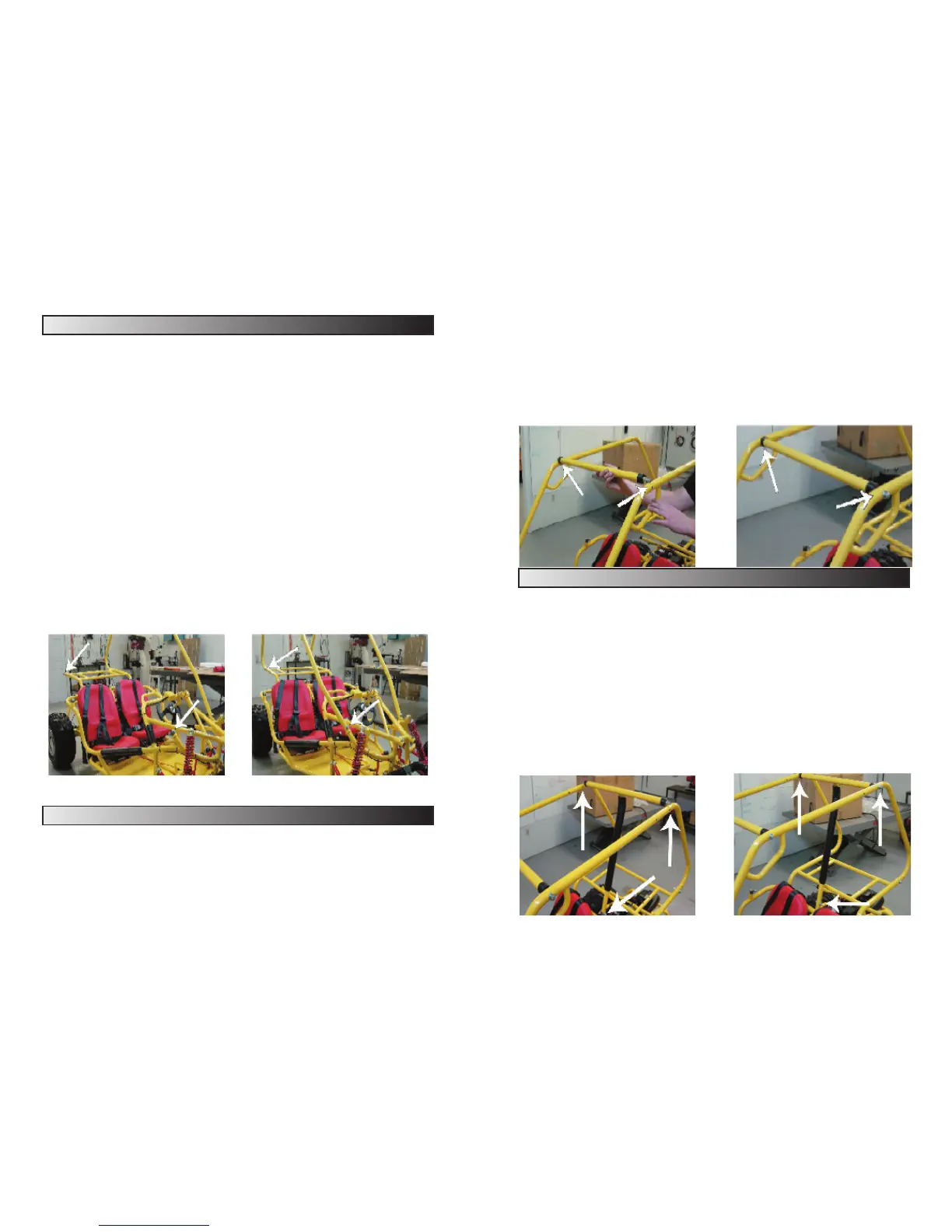

Passenger Side Support
1. Remove the bolts and spacers from the two holes needed to place
the passenger’s side support into place.
(See Figures Below)
2. Place the long tubular section (removed from the passenger’s side
while unpacking) on the kart so that the curved end of the tube
slides over the fitting located behind the passenger’s seat.
3. Place the other end of the tubing over the fitting behind the front
shock on the passenger’s side that the bolt and spacers were
removed from. Be sure to align the holes in all tubing to ensure
that the bolt will slide easily through all pre-drilled holes.
4. Place a spacer on each side of the tube at both locations. Be sure
that the curve in the spacer lines up against the curve of the tube.
Slide the bolt through the pre-drilled holes so that the threads are
facing the inside of the kart. Be sure that the bolt slides through
the holes in both tubes and both spacers.
5. Hand tighten the bolts to hold the tube into place. Allowing slight
movement in the brush guard will allow for easier assembly.
Front Support
1. The front support is the larger, single tube with bolts in both ends.
2. Remove the bolts and spacers from each end of the tube.
3. Place the front support in between both side supports. Align the
holes in the ends of the front support with the pre-cut holes in
each side support.
17 18
