4. Be sure that the rounded caps located on the ends of the front
support tube fit around each side support.
5. With the holes in all tubes aligned, hand tighten the bolts into
place on each side. Be sure that the spacer is located on the
outside of each side support and fits rounded edge against the
tube.
Side Rails
1. Remove the bolts from the ends of the side rails.
2. To connect the side rails, locate the pre-drilled holes in the side
tubing located above the seat. (holes are located above the
passenger’s and driver’s seats in the side tubes) Be sure to attach
one side at a time starting with the driver’s side.
3. Slide the bottom of the side rail over the fitting located on the kart
frame beside the seat.
4. With the holes in all tubes aligned, hand tighten the bolt into
place. Be sure that the spacers are located on the outside of the
side support and fit rounded edge against the tube.
5. Align the top of the side rail with the pre-drilled hole in the side
support tube. The pre-drilled hole is located above the seat in the
side support tube.

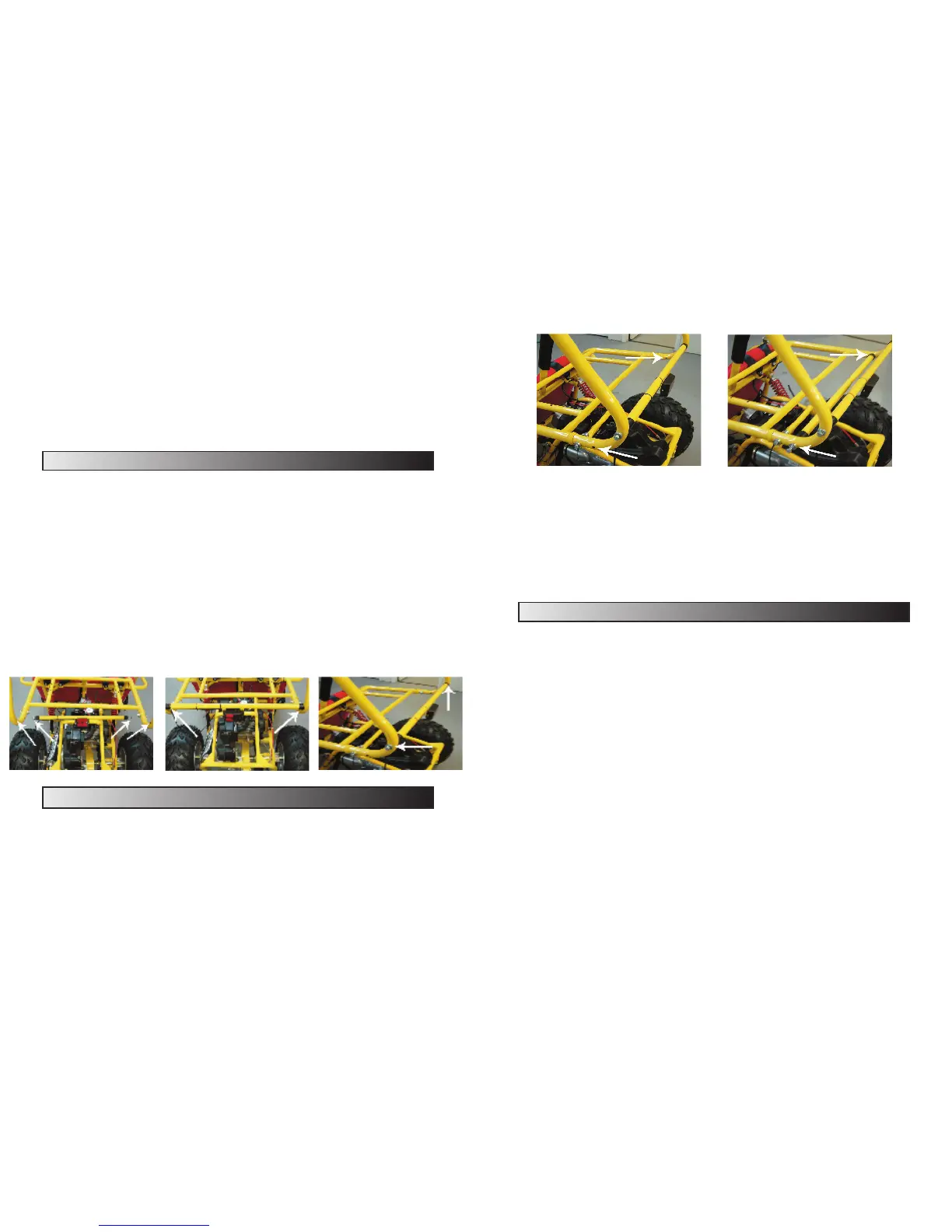

6. Repeat this process for both sides of the kart. (See Figures on the
following page)
6. With the holes in all tubes aligned, hand tighten the bolts into
place on each side of the crossbar. Be sure that the spacers are
located on the outside of each side support and fit rounded edge
against the tube.
7. Place the bolt through the aligned holes in the third contact point.
Be sure there is a spacer on each side of the tube and that it fits
rounded edge against the tube before hand tightening the bolt into
place.
Rear Light Bar
1. Locate the rear light bar sitting on the engine frame.
2. Remove the bolts and spacers from the ends of the bar.
3. Place the rear light bar in between the side supports aligning the
holes in the end of the rear light bar with the pre-drilled holes in
the side supports.
4. Be sure to use the pre-drilled holes located at the very rear of the
kart. (See Figures Below)
5. Be sure that the rounded caps located on the ends of the rear light
bar tube fit around each side support.
6. With the holes in all tubes aligned, hand tighten the bolts into
place on each side. Be sure that the spacer is located on the
outside of each side support and fits rounded edge against the
tube.
Rear Support Tube
1. The Rear Support tube is the small, single tube with bolts in both
ends.
2. Remove the bolts and spacers from each end of the tube.
3. Place the rear support in between both side supports utilizing the
pre-drilled holes directly behind the Rear Light bar. Align the
holes in the ends of the rear support with the pre-cut holes in each
side support.
19 20
