The information shown on this
sample plate does not apply to
your truck.
Capacity Plate 14
Know the Hazards
OTHER LIFT HEIGHTS & LOAD CENTERS
Contact Crown for capacities at lift heights or load
centers not given on your capacity plate.
Note:
ANSI/ITSDF B56.1 requires that all data be shown
first in Metric units and then USA units.
CAPACITY PLATE INFORMATION
The capacity plate is on the overhead guard. It contains:
• Truck serial number
• Capacity information (load, load center and lift height)
• Truck type (a fi re safety rating)
• Truck weight
• Attachment information (if any)

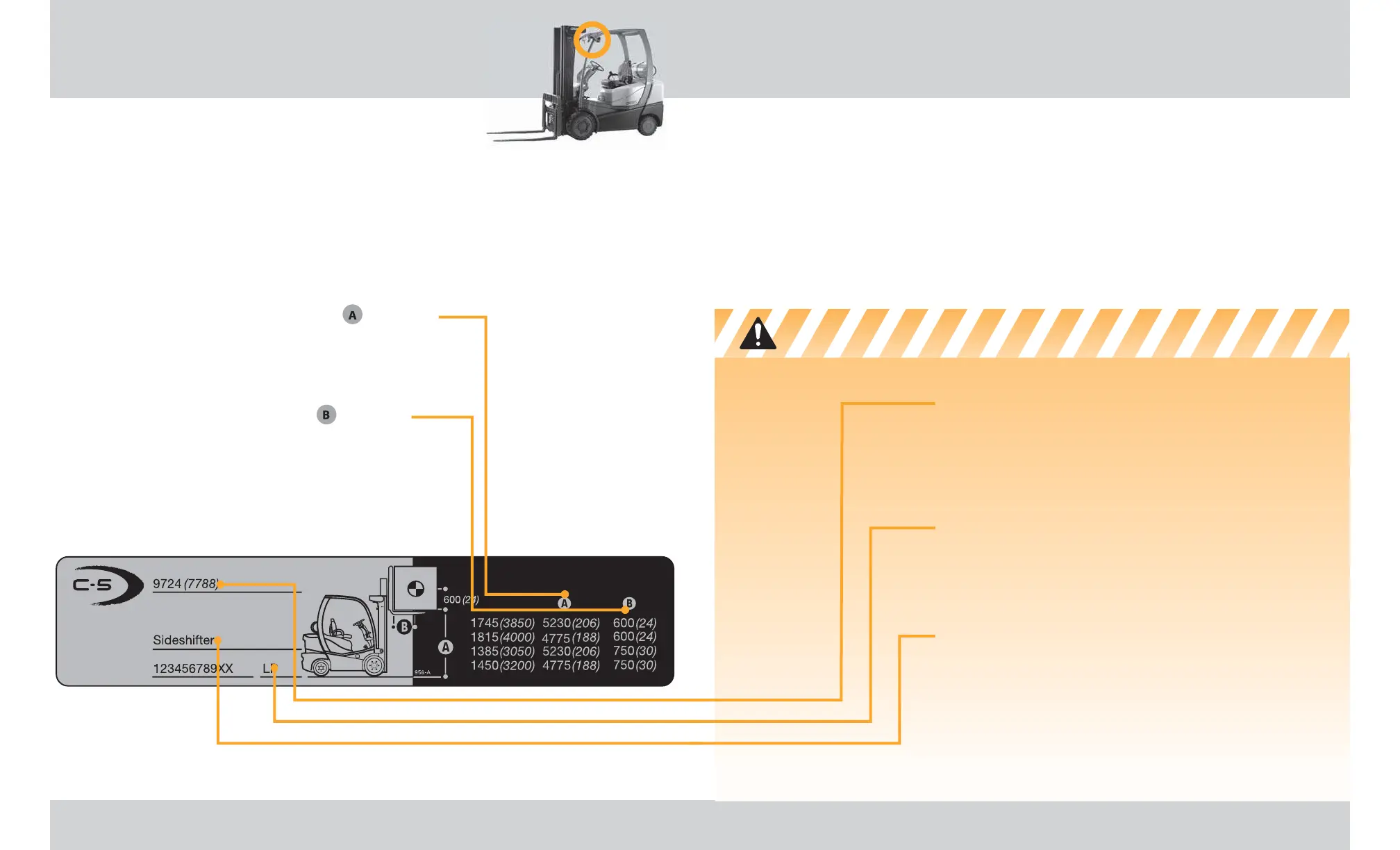

READING YOUR CAPACITY PLATE
Capacity may be reduced as lift height increases.
For example:
On the sample plate, 1815kg (4000 lb)
can be lifted to 4775mm (188 in).
But above 4775 (188),
to 5230 (206), capacity is reduced from 1815 (4000) to
1745 (3850).
Capacity is reduced as load center increases.
For example:
On the sample plate, 1815kg (4000 lb) can
be lifted if the load center is 600mm (24 in).
But if the load
center is increased to 750mm (30), capacity is reduced from
1815 (4000) to 1450 (3200).
Caution:
You may not increase capacity if load center is
less than shown on your capacity plate.
Units of measure, kg/mm(lb/in)
Capacity with Mast Vertical
Load
Center
Truck Weight
Attachment Data
Serial Number Truck Type
SAMPLE
TRUCK WEIGHT
Dockboards, elevators and some fl oors have limited
capacity. Check your capacity plate for the weight of
your truck. Remember to add the weight of the load
you have on the forks. Make certain you use the correct
units of measure.
TRUCK TYPE
Some truck types are not permitted in areas where
there are fi re hazards. Watch for marked areas. For
example: You must not drive a type LP truck into an
area restricted to LPS trucks.
ATTACHMENT DATA
If an attachment on your truck does not match the
information given on your capacity plate, don't operate
your truck. Your capacity plate may be wrong. Report
the problem to your supervisor.
