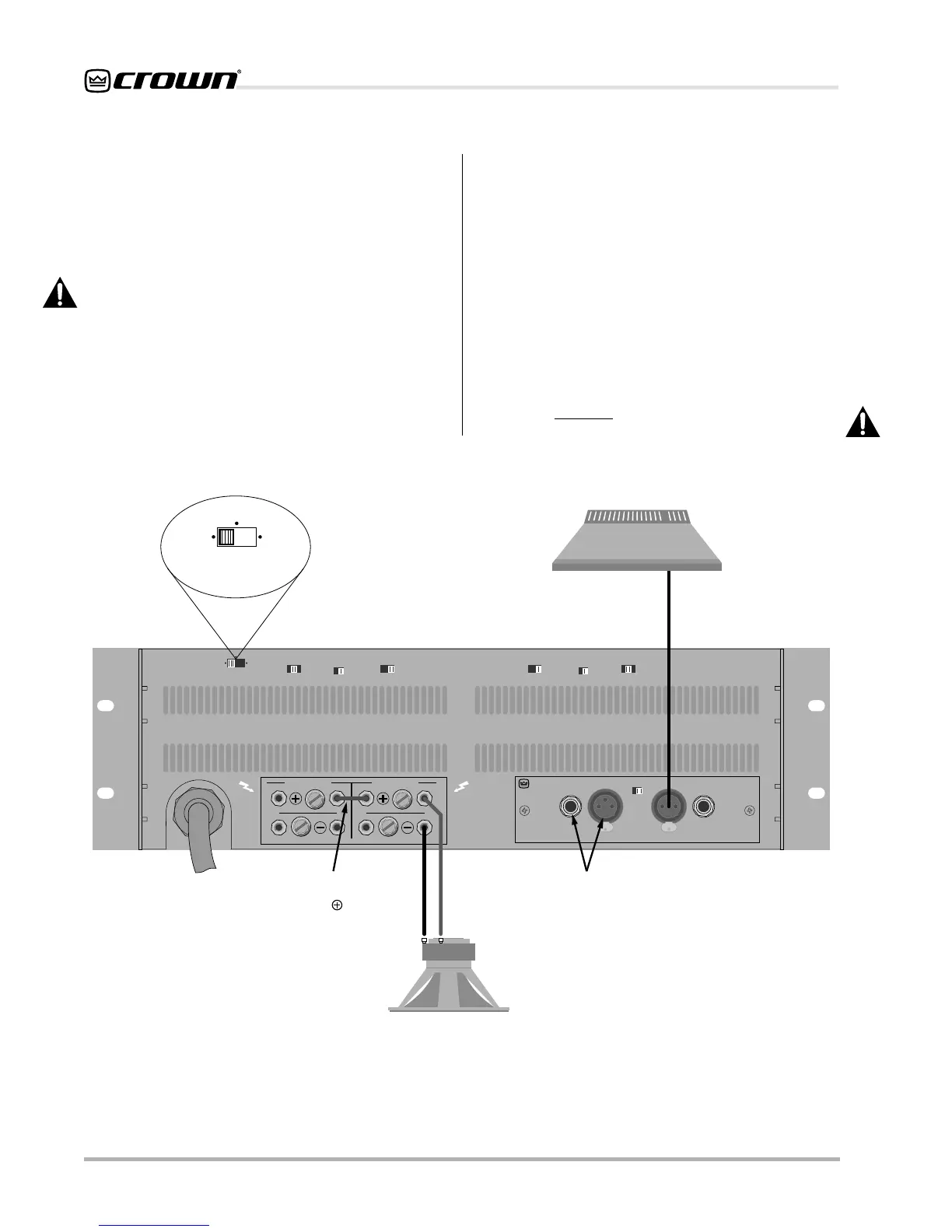

Fig. 3.6 Parallel-Mono Wiring
input. Both outputs will now receive the signal from the
Channel 1 input.
Note: The Channel 2 input jack and level control are
disconnected in Parallel-Mono mode. A signal feeding
Channel 2 will have no effect on the output.
Install a jumper wire between the positive (+) outputs of
Channel 1 and 2 that is at least 14 gauge in size. Then,
connect the load to the output of Channel 1 as shown in
Figure 3.6. The positive (+) lead from the load connects
to the positive (+) Channel 1 terminal, and the negative
(–) lead from the load connects to the negative (–) Chan-
nel 1 terminal.
CAUTION: Remove the jumper wire before chang-
ing to Stereo or Bridge-Mono mode.
3.3.3 Parallel-Mono Operation
Parallel-Mono mode is intended for driving loads with a
total impedance of less than 4 ohms (see Section 3.3.2
if the load is 4 ohms or greater). Installing the amplifier
in Parallel-Mono mode is different from the other modes
and requires special attention.
CAUTION: Do NOT operate the amplifier in Stereo or
Bridge-Mono mode until the Parallel-Mono jumper
is removed. Failure to do so will result in high distor-
tion and excessive heating.
To activate Parallel-Mono mode, turn off the amplifier,
wait at least 10 seconds, and slide the stereo/mono
switch to the PARALLEL MONO position. Connect the
input signal to Channel 1, and do not use the Channel 2
+
MIXER
–
LOUDSPEAKER
Macro-Tech 5002VZ
CH-2 OUTPUTS CH-1 OUTPUTS
STEREO
BRIDGE
MONO
PARALLEL
MONO
THE CHANNEL 2
INPUTS ARE
NOT USED.
ONLY USE THE
CHANNEL 1 INPUTS.
ADD A 14 GAUGE OR LARGER
JUMPER BETWEEN THE CHANNEL 1
CHANNEL 2 POSITIVE TERMINALS.
FXQ
PUSH PUSH
PARALLEL-MONO MODE
CAUTION : TURN OFF AMPLIFIER
BEFORE CHANGING THIS SWITCH!
STEREO
BRIDGE
MONO
PARALLEL
MONO
