700 Series Installation Instructions TES1589 Iss.B Page 9
OIL TEMPERATURE PROBES
Depending on the model purchased you will have either a cabled or wireless version of the
temperature probe. The Oil Temperature probe holster/recharging station is located on the

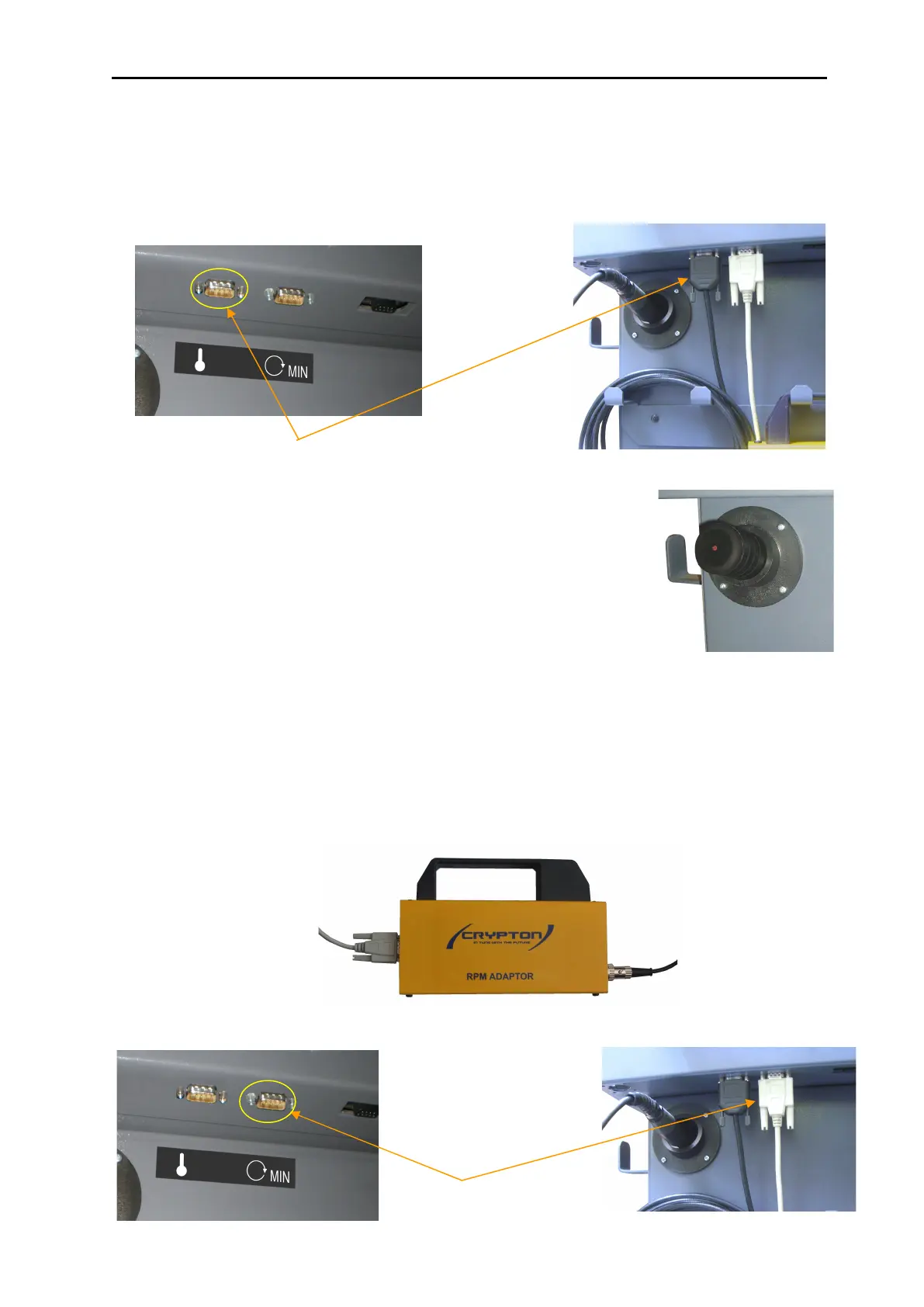

top of the left side panel of the unit towards the rear. Fig 6a and 6b show the DX211-11
cabled probe connections.
The wireless probe (DX211-11BT) does not require any
connections. The probe is both switched off and recharged by
being inserted into its holster (see Fig. 6c). It is imperative
that the unit be returned to the holster immediately after each
use. Failure to do this may cause the probe to cease operating
during the working day. It will then require a continuous
charging period of 48 hours to recover.
BATTERY TACHOMETER (optional on Smokemeter)
Depending on the model purchased you may have either a cabled or wireless version of the
Battery Tachometer. The cabled Battery tacho CDSS6 (or DX211-12) is connected as shown
in Fig. 7a, 7b and 7c below. The wireless Battery Tacho CDSS6BT (or DX211-12BT) is
similar to the cabled version but does not require a comms connection. When not in use,
the tachometer may be hung by its handle on the hooks provided on the left side of the
trolley.
Cabled Oil Temp
Probe connector
Fig. 6c
Fig. 7a
Power & Signal lead
to vehicle battery
terminals
CDSS6/DX211-12 Data
Lead to connector
shown in Fig. 7b and 7c
Battery Tacho
(cabled) connector
Fig. 7b
Fig. 7c
Fig. 6a
Fig. 6b
