Vector Sensor Reference Manual 61

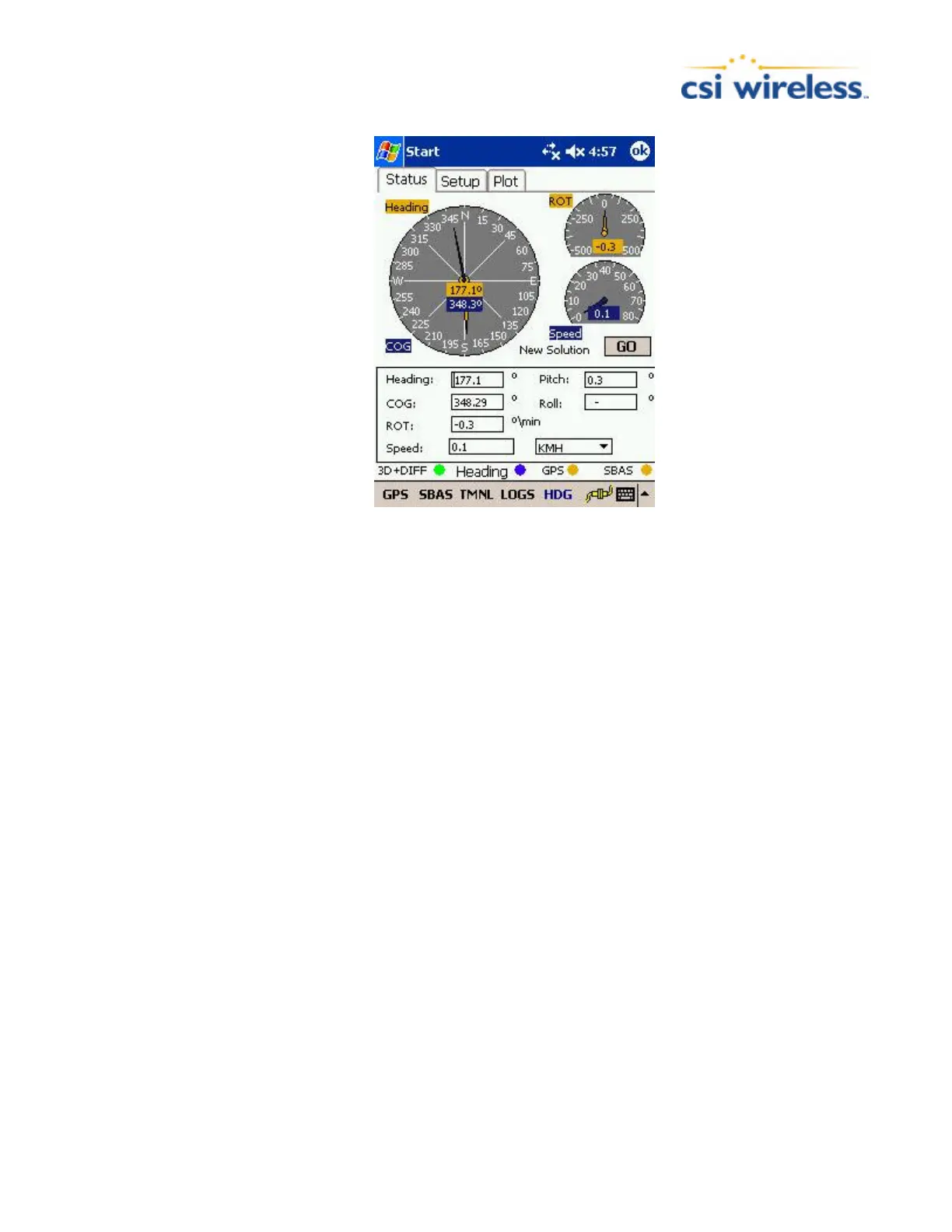

Figure 6-1 PocketMAX Screen Capture

6.3 General Commands

This section presents various commands relating to the general operation and configuration of the

Vector Sensor.

The following table provides a brief description of the general commands supported by the Vector

Sensor.
