18
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
E
M
* "F" Port is for softener flow meter connection (flow meter not shown)
LETTERS IN DIAGRAM REPRESENT WIRING CONNECTIONS
19
1
E
P
P
M
F

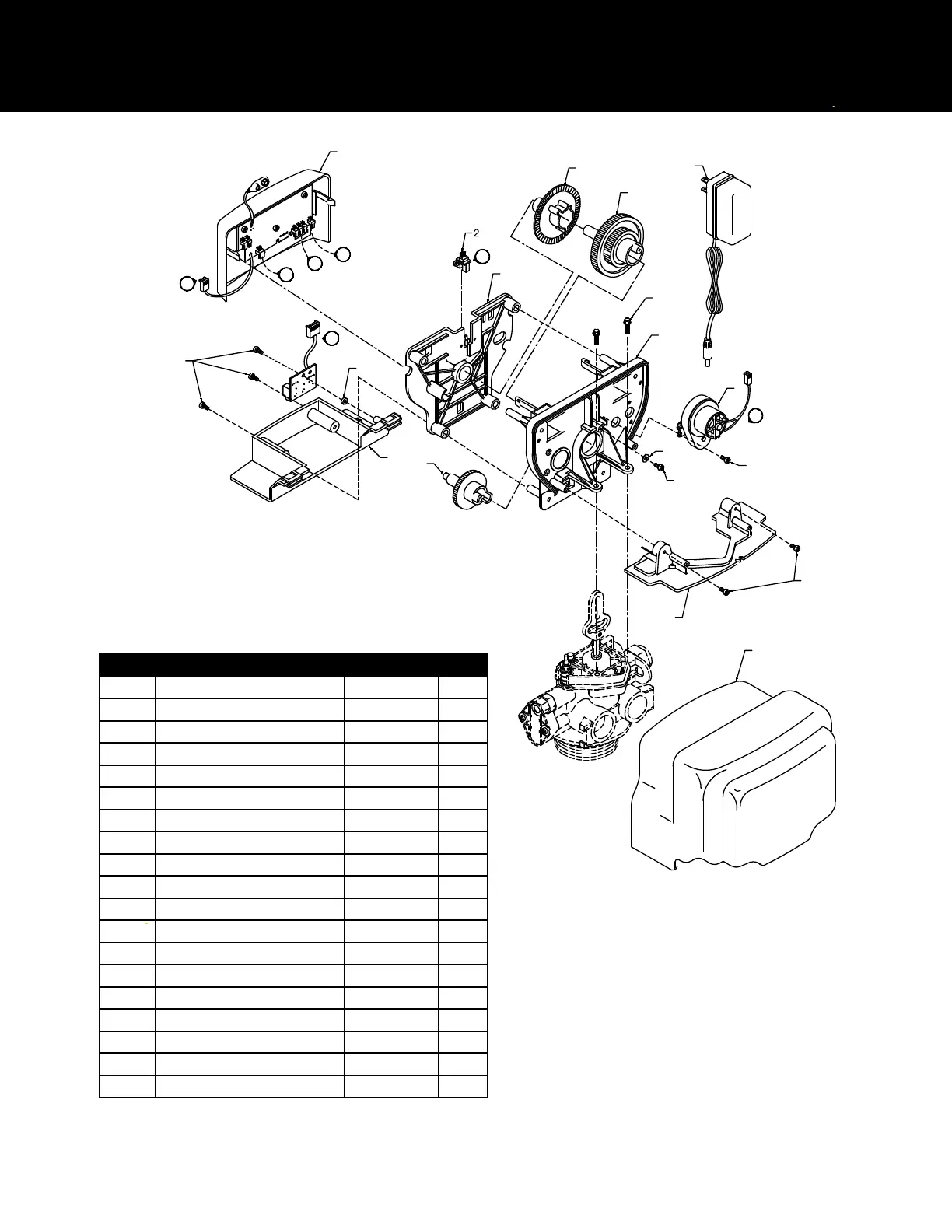

Control Valve Assembly - Signature 2 & SIGNATURE 3
Ref Description Part Number Qty
0 Metered Power Head Assy. 21003X100 1
1 Softener Circuit Boad Assy. 21001X102 1
2 Encoder 20001X124 1
3 Front Plate 20001X004 1
4 Encoder Wheel 20001X007 1
5 Main Gear 21001X120 1
6 Power Supply 20001X125 1
7 Back Plate 20001X005 1
8 Lower Front Base For Cover 20111X002 1
9 Motor 20016X006 1
10 Lower Back Base for Cover 20111X003 1
11 Valve Cover 20111X000 1
12 Piston Screw 20001X003 1
13 Screw SC10 3
14 Screw SC9 2
15 Piston Washer 20001X002 1
16 Washer Circuit Board 20111X014 1
17 Screw Motor SC2 1
21 Valve Hex Screw 20001X001 2
