Pyronix Euro/Enforcer RS232
6 Pin
(cable
provided)
Green RTN
Blue RS232-R
Red RS232-T
Texecom Premier/Elite TTL
5 Pin
(cable
provided)
Green
RTN
Blue TTL-R
Red TTL-T
HKC 1070/10270 TTL
4 Pin
(cable
provided)
Green
TTL-R
Blue RTN
Red TTL-T

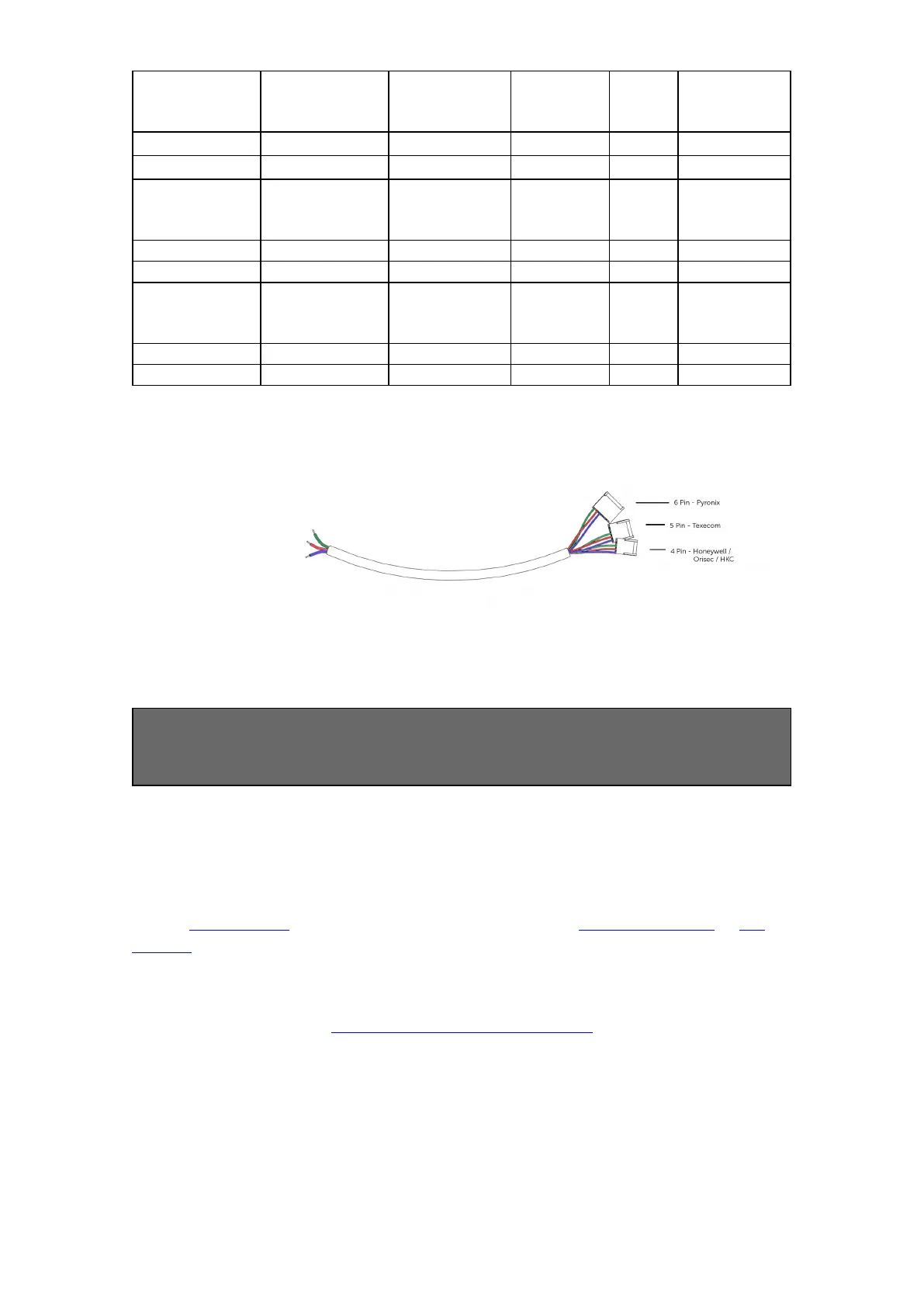

Figure 8 – Panel Connection Information
Figure 9 – Serial Cable (RS232/485/TTL)
YOU MUST POWER DOWN THE CONTROL PANEL AND DUALCOM DIGIAIR
PRO 3 BEFORE CONNECTING THE SERIAL LEAD, TO AVOID DAMAGE.
For RISCO, Eaton, UTC and other panels, please purchase the relevant cable from
CSL Live. For other connections or further instructions on Control Panel
programming, panel guides can be found by clicking the panel type (after selection)
via the My Base App, by clicking the link below or visiting the Installer Zone of our
website.
CLICK HERE TO FIND YOUR PANEL
