6
Remove the joystick protection (A) placed under the device
base.

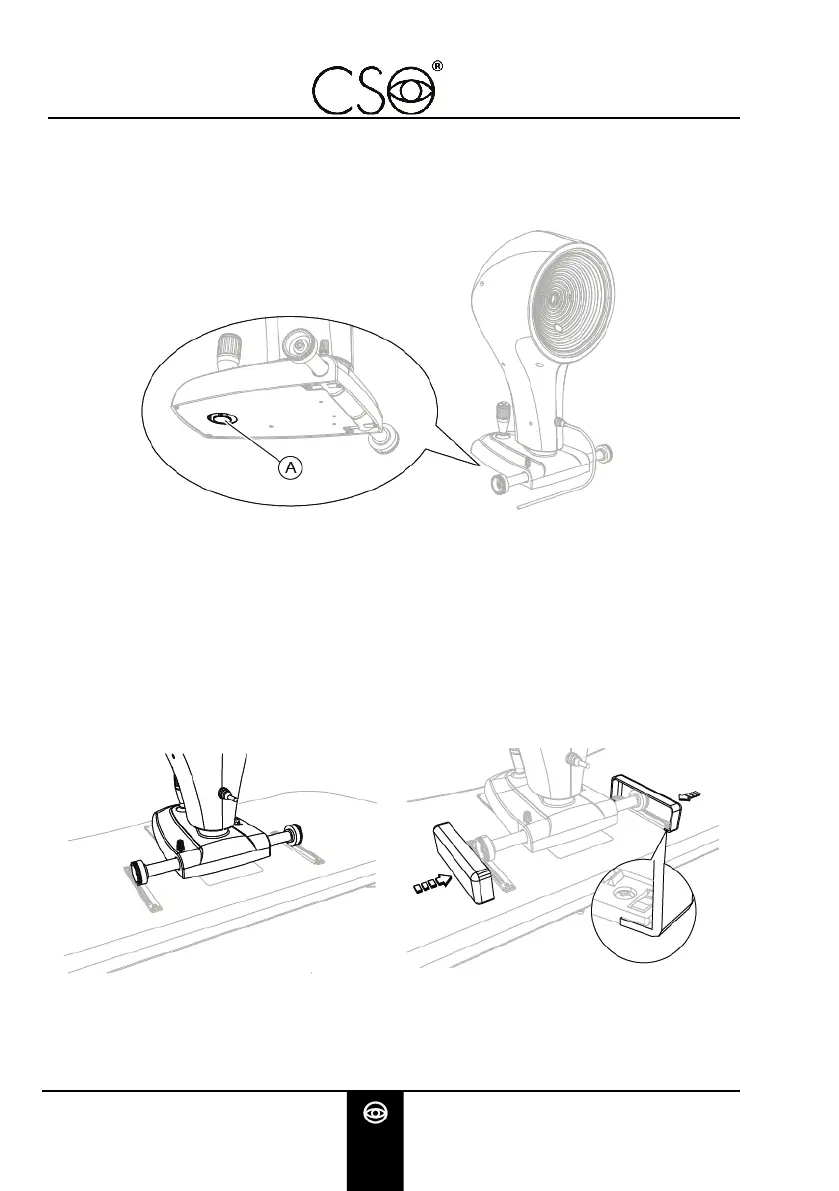

Fig 15 – Protection removal
7
Place the device on the table top and align the cogged wheels
on the cogged guides.
8
Fasten the two wheel cover carters to the cogged wheels on
the table top.
Fig 16 - Placement of the device Fig 17 - Placement of wheel cover carters
