Appendix C: Rack Mounting Option
132
November 2001
In order to save rack mount space, units may be mounted in tandem.

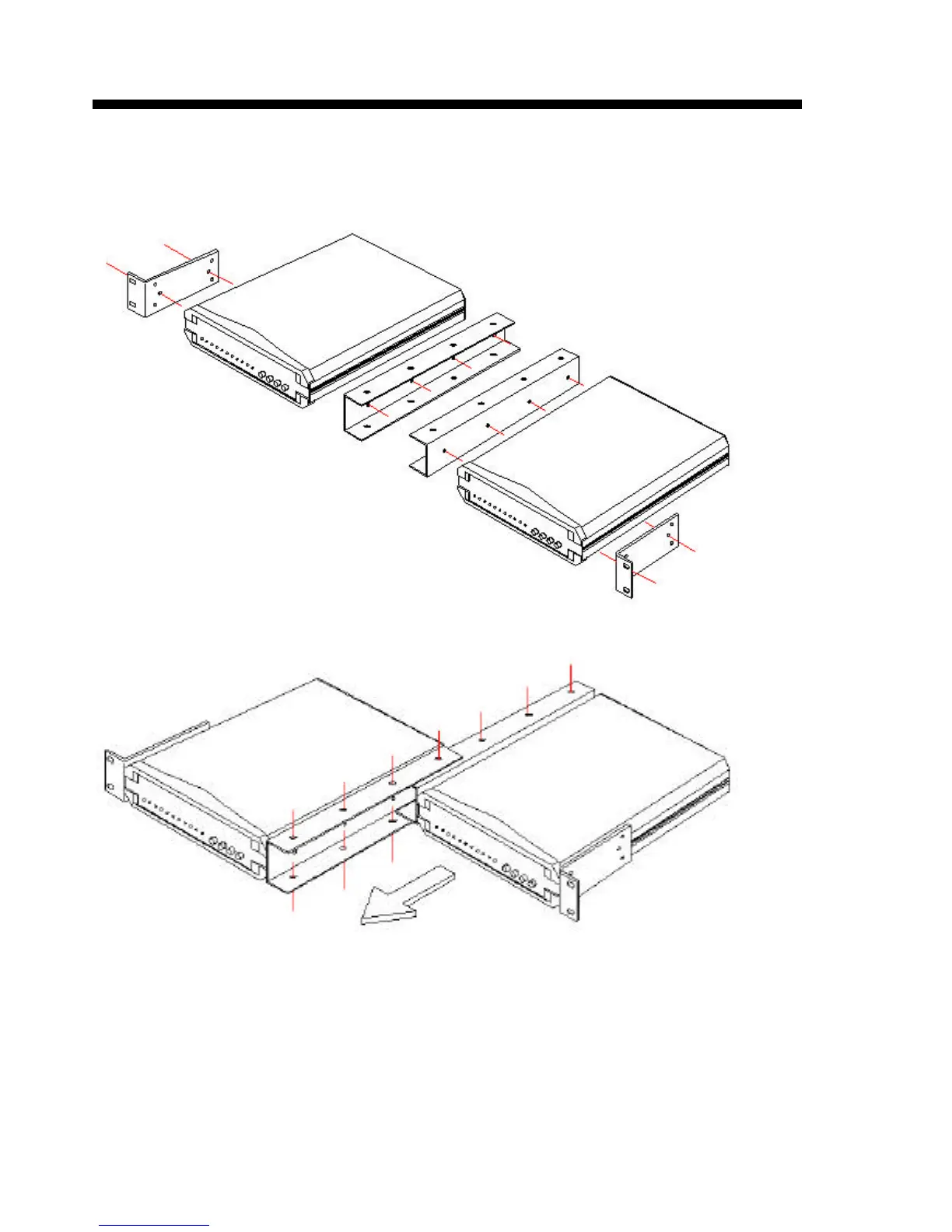

Please refer to the following drawing examples for this application.
Figure C-2: Tandem Units Mounting (Exploded)
Figure C-3: Tandem Units Mounting Detail
The tandem kit includes two (2) rack mount adapters, one (1) each of inner
and outer central mounting adapters, twenty (20) 3x8mm self-tapping
screws, and four (4) #12-24x0.5” screws.
