CTC Union FRM220-CH01 User Manual

FRM220 Chassis Quick Installation Guide
14

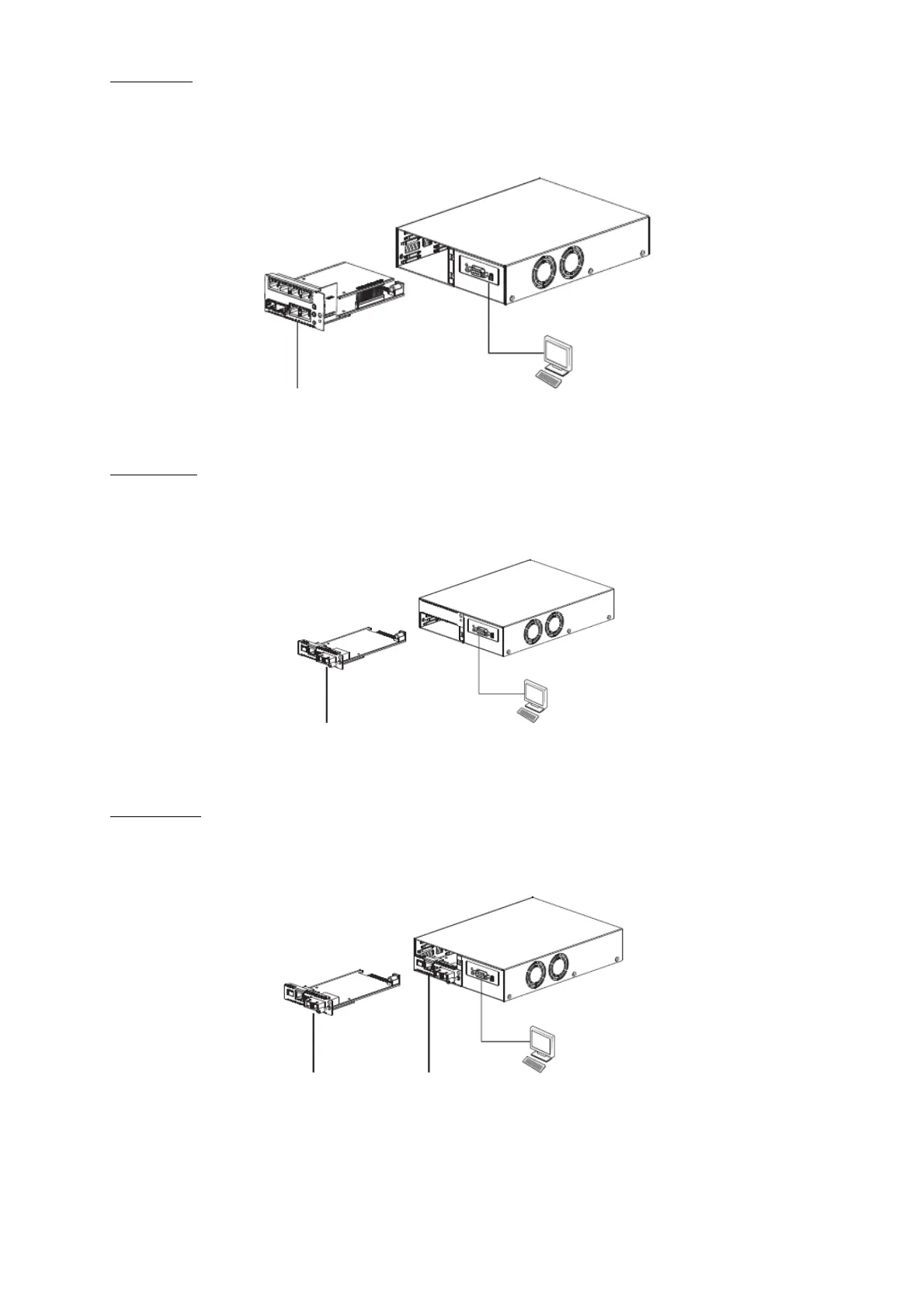

Installation I
The FRM220-CH02M & FRM220-CH02M-HP, a two blade chassis, can be installed with one
double width blade line card into the chassis. The line cards include Imux16 E1Inverse Multiplexer or
FOM04 (GFOM04) 4ch E1/T1 Fiber Optical Multiplexer. The FRM220-CH02M & FRM220-CH02M-HP
also support DB9 console port for standalone local management.
Two Slot local line card Management Serial Console
Figure. Module Line Card Installation
Installation II
The FRM220-CH02M & FRM220-CH02M-HP, a two blade chassis, can be installed with one single
width blade line card into the chassis. The line cards include 10G, 2.7G, 4G Transponder, E1 Inverse
multiplexer, 10/100i, E1/T1, ….etc.
Figure. One-Module Line Card Installation
Installation III
The FRM220-CH02M & FRM220-CH02M-HP, a two blade chassis, can be installed with two single
width blade line cards into the chassis. The line cards include E1Inverse multiplexer, 10/100i, E1/T1,
V35/X21/RS530, FXO/FXS….etc.
Figure. Two-Module Line Card Installation
One-Module Line Card
Local Management
Card 1
Card 2
Local Management
