CTC Union FRM220-CH01 User Manual

FRM220 Chassis Quick Installation Guide
23

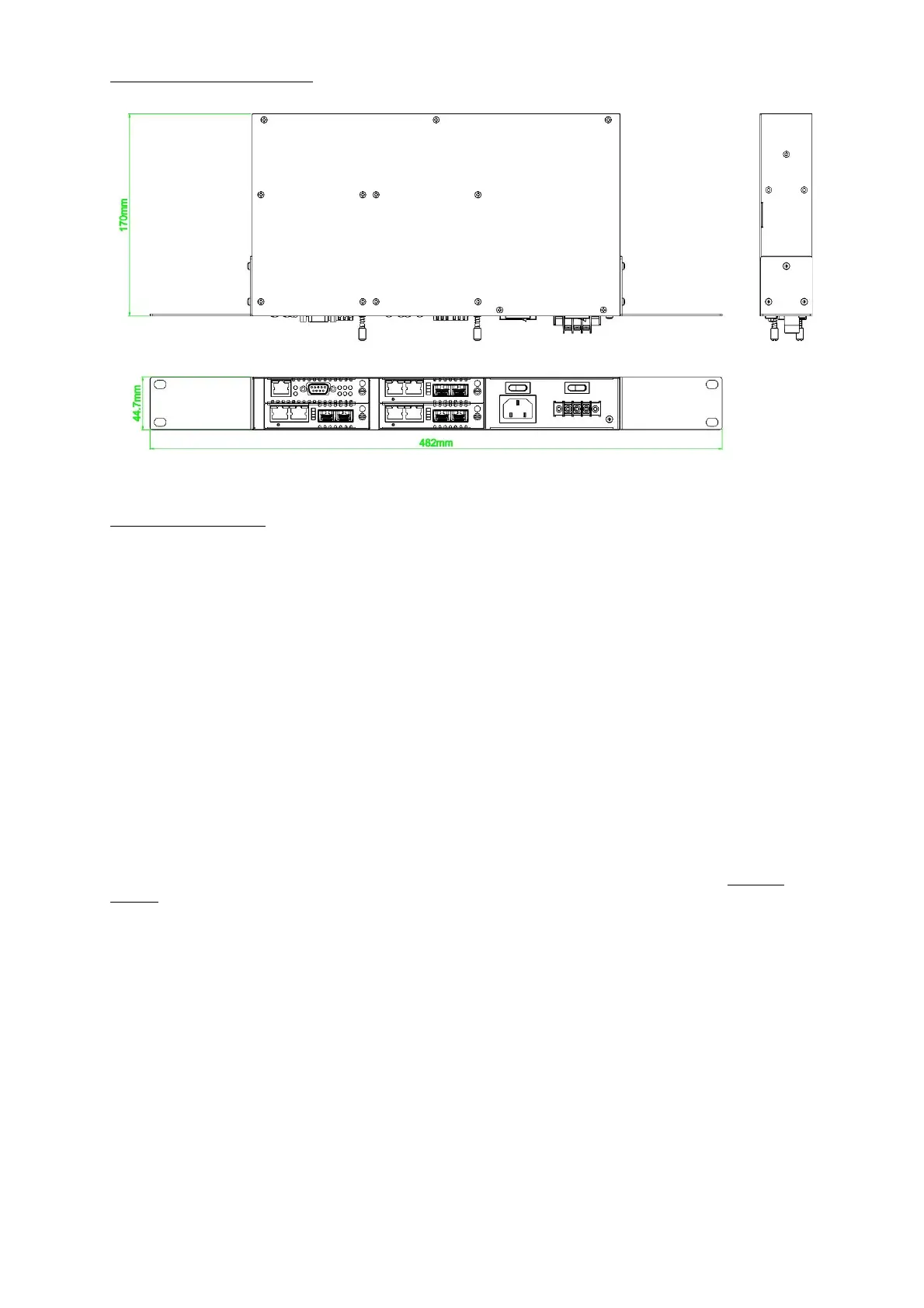

Chassis Physical Dimensions
Figure. Chassis Dimensions, in millimeters
Chassis Specifications
Environment
Operating Temperature 0~60C
Storage Temperature -10~70C
Humidity 5~95% non condensing
Power Module Specifications
AC Power Module
Input: Universal, 100~240 ±10% VAC; Frequency: 50/60 Hz ±10%
Output: 65W
Connector: C14 (IEC 60320-1)
DC Power Module
Input: 18~60 VDC
Output: 50W
Connector: 3 connector terminal block
AC Power Cord Specification (detachable cord, C13 connector, with national plug per national
standards)
6A rated 18AWG (conductors with a minimum cross-section area of 0.75 mm
2
)
DC Power Cord Specification (wiring must comply with EN 60950-1:2006 standard)
Conductors with a minimum cross-section area of 1mm
2
(16AWG)
Protective Earth (PE) Specification (wiring must comply with EN 60950-1:2006 standard)
Conductor with a minimum cross-section area of 0.75mm
2
(18AWG), star washer and non-self-
tapping M3.5 screw
Compliance
European Union: EN55022:2006, Class A, EN55024:1998+A1:2001+A2:2003, and EN60950-
1:2001
FCC: part 15, subpart B, class A
Reliability
MTTB: 65,000 hours
Physical Specifications
Dimensions: 310mm (W) x 170mm (D) x 44.7mm (H)
FRM220-CH04A converter rack weight: 1945 g (w/o power module & interface cards)
AC module weight: 140g
DC module weight: 65g
AC + DC module weight: 205g
NMC Card Weight: 120 g

CTC Union FRM220-CH01 Specifications

General

Brand	CTC Union
Model	FRM220-CH01
Category	Chassis
Language	English
