FRM220 Chassis Quick Installation Guide
29
Line card options
The FRM220 is capable of supporting a variety of in-band managed or non-in-band managed line
card types which may be mixed and matched in any slot of the rack. See below for a brief of the line
cards at the time of this printing. Please refer to the latest version of FRM220 NMC User Manual for
details of all the line card options for the FRM220.
Installation
Introduction
The Installation chapter will cover the physical installation of the FRM220-CH08, Rack Mount In-
Band Managed Series Fiber Converter Platform Chassis, the electrical connections, interface
connections and cabling requirements. A brief overview of the functional components such as main unit
and management options will also be outlined in this section.
Required Tools
You will need these tools to install the FRM220-CH08:
Number 2 Phillips screwdriver for the 3mm and the 12-24 rack installation screws.
Wrist strap or other personal grounding device to prevent ESD occurrences.
Antistatic mat or antistatic foam to set the equipment on.
Site Preparation
Install the FRM220-CH08 within reach of an easily accessible grounded AC outlet or three wire (-
48VDC, Power return, Earth Ground) central office power. The AC outlet should be capable of furnishing
100 to 240 VAC. Refer to 2.4 Electrical Installation. Allow at least 10cm (4 inch) clearance at the front
of the CH08 for the Fiber and other copper cables.
Mechanical Assembly
CH08 is designed for rack mount installation and will require 1U space in a standard EIA 19" or 23"
rack. CH08 chassis is delivered completely assembled, however power modules and converter cards
may or may not be installed in the chassis upon delivery. The rack mount adapters may be placed along
the front or centrally located on the chassis.
Rack mounting

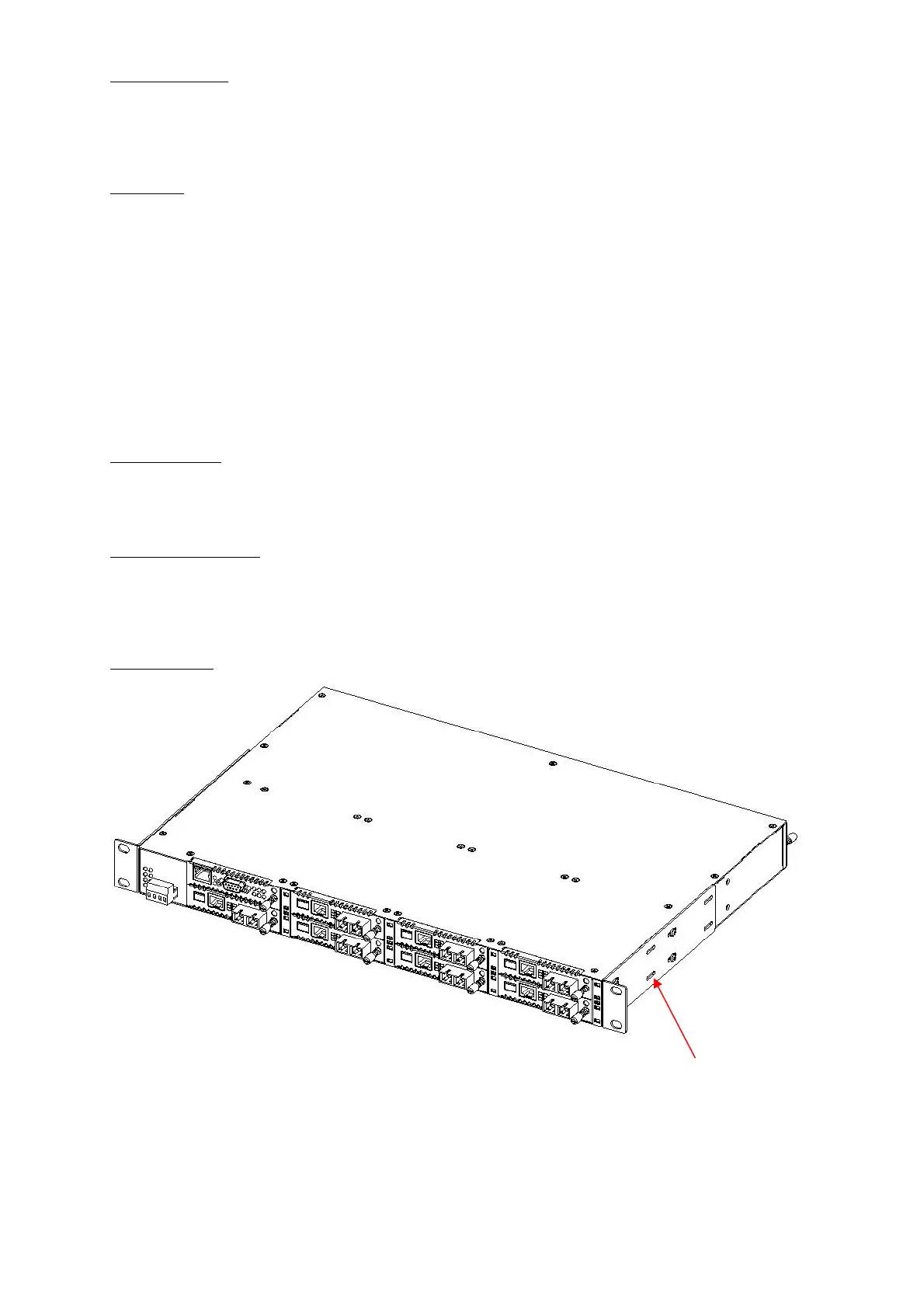

Figure. Standard 19" Rack-Mount Installation of CH08 Unit requires 1RU space
