CTEK D250S Dual Instruction Manual

8•EN
SOLAR PANEL
SMALL SERVICE BATTERY

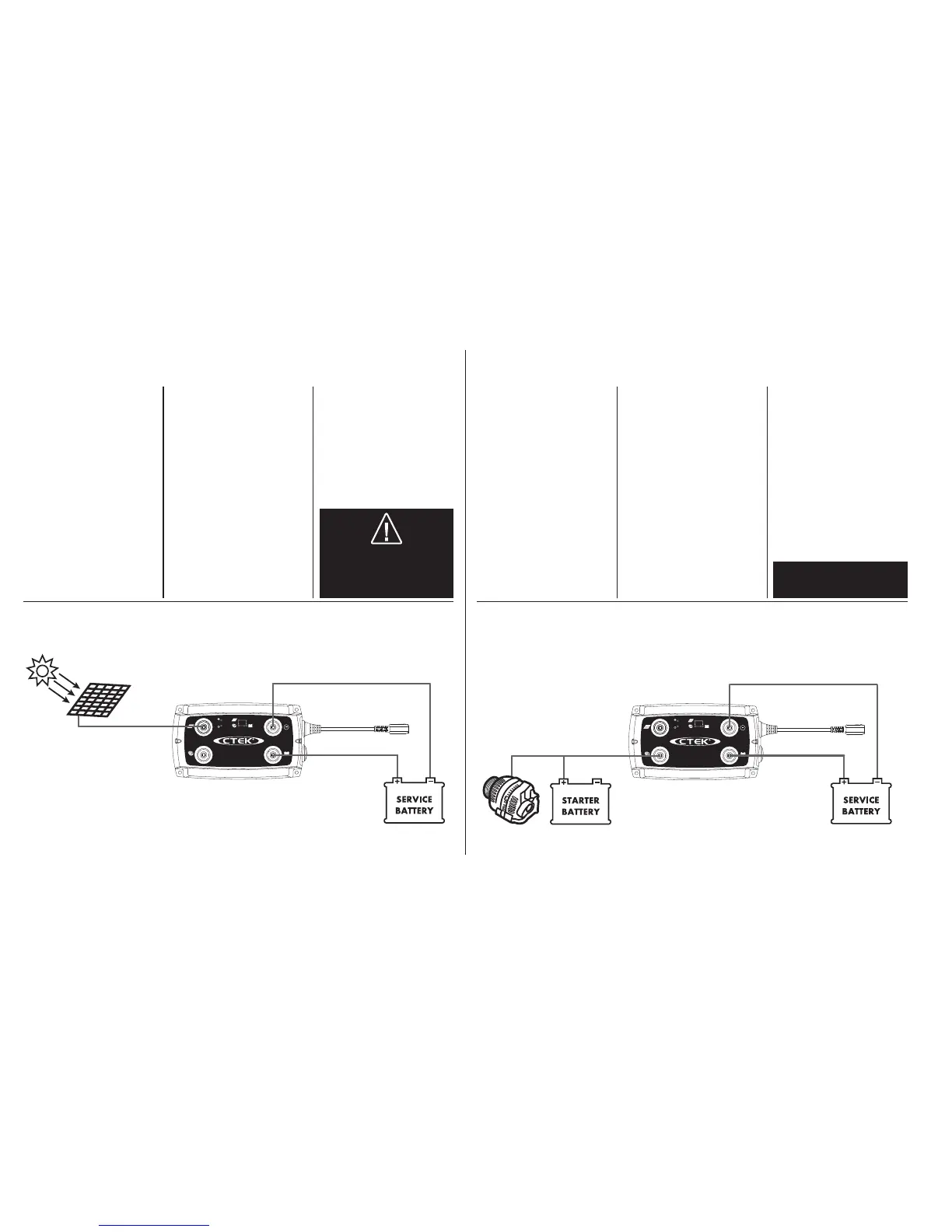

INSTALLATION SHEET 1 INSTALLATION SHEET 2
SITUATION
Solar panel.
PROBLEM
A solar panel with 36 cells
produces maximum power at
about 17V. Many regulator
reduce the voltage by “bur-
ning off” energy.
SOLUTION
The D250S DUAL searches for
the Maximum Power Point and
charges the battery perfectly
with very high efficiency.
TIP 1
Mount the temperature sensor
on the Service battery.
Boat: All installation should
be done in accordance with
ISO10133.
SITUATION
One alternator feeding a
Starter battery and a small
Service battery.
PROBLEM
The Service battery will take a
very long time to recharge due
to low alternator voltage. Due
to this, the battery will under-
perform and die prematurely.
SOLUTION
The D250S DUAL charges the
Service battery quickly and
very efficiently. The battery
will be fully charged, produce
more and last significantly
longer.
TIP 2
Refer to Tip 1.
Alternators with voltage sensor
cables should connect this on
the Starter battery
3. Caravan/trailer: For
13-pole contact, connect
D250S DUAL alternator bat-
tery + to pin #9. Connect pin
#13 to D250S DUAL vehicle
ground –.
D250S DUAL
12V
+OUT
+IN
+IN
WARNING!
•Max 22V input
•Do not connect two solar
panels in series
WARNING!
- Max 22V input
D250S DUAL
12V
+OUT
+IN
+IN
20015686F D250S Dual + SmartPass, Manual, Print file 001.indd 8 2011-12-20 11:19:35

CTEK D250S Dual Specifications

General

Charging Current	20 A
Operating Temperature	-20°C to +50°C
Protection Class	IP65
Battery Capacity	40–300 Ah
Battery Types	Lead-acid (Wet, MF, AGM, GEL)
Protection Features	Reverse polarity protection, over temperature protection
Input Voltage	11.5-23V, DC
Charging Stages	5-stage, Automatic
