CTEK D250S Dual Instruction Manual

EN
EN•11

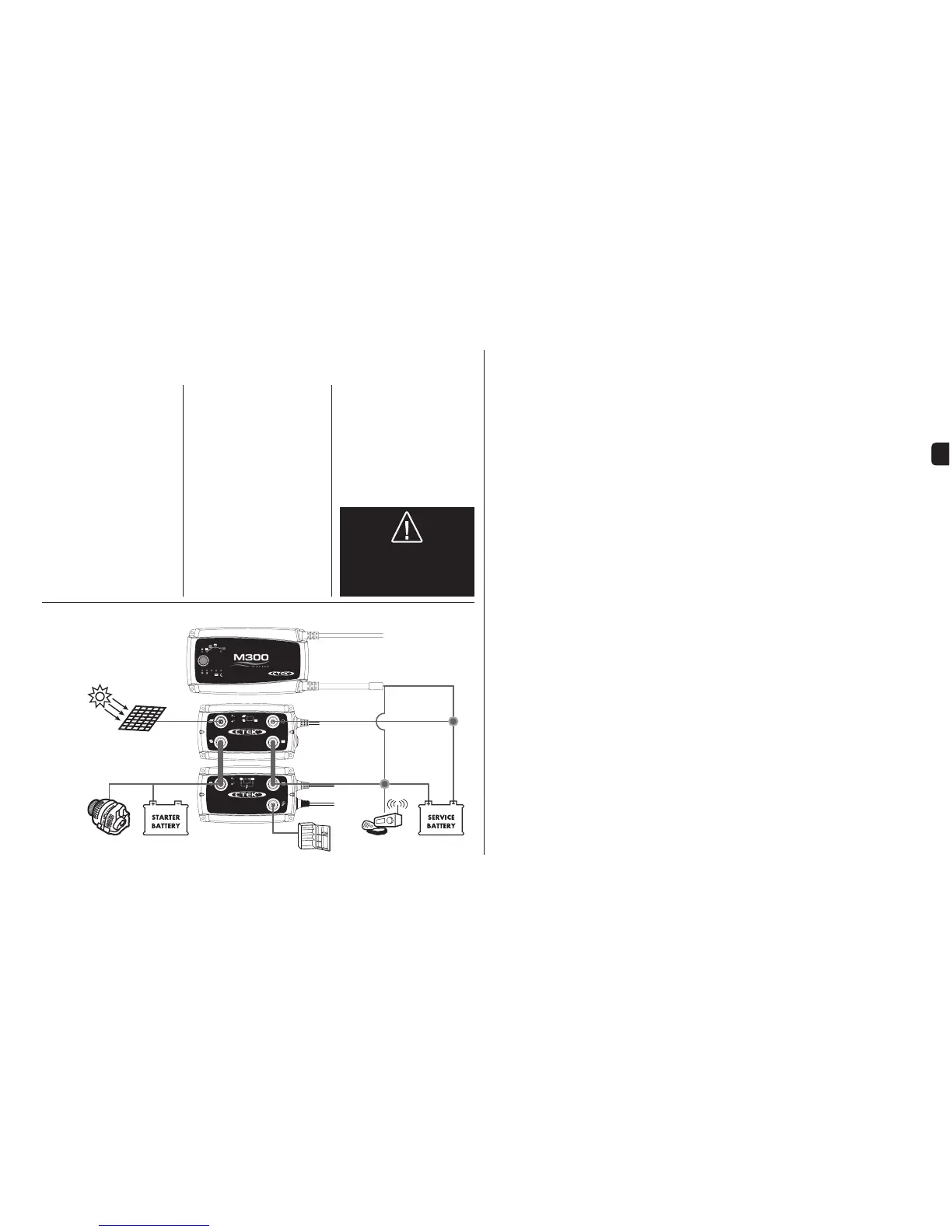

CONNECTING CONSUMERS
INSTALLATION SHEET 7
SITUATION
Connection of consumers to
the system.
PROBLEM
Many batteries die prematu-
rely if they are discharged too
much. Too little power might be
delivered to critical consumers,
like navigation, radio and
emergency lights.
SOLUTION
Critical consumers are con-
nected directly to the battery.
Others, such as refrigerator,
main light and heating are
connected to the SMARTPASS.
When the Service battery is
down to a critical level, then
the SMARTPASS disconnects
these noncritical consumers.
TIP 7
See Tip 1, Tip 2, Tip 4, Tip 5
and Tip 6.
High current consumers
(>80A) should be connected
directly to the Service or
Starter battery.
12V
RECOND
RECOND
NIGHT
NORMAL
MODE
D250S DUAL
12V
+OUT
+IN
+IN
+IN +OUT
+OUT
SMARTPASS12V
WARNING!
•Max 22V input
•Do not connect two solar
panels in series
20015686F D250S Dual + SmartPass, Manual, Print file 001.indd 11 2011-12-20 11:19:39

CTEK D250S Dual Specifications

General

Charging Current	20 A
Operating Temperature	-20°C to +50°C
Protection Class	IP65
Battery Capacity	40–300 Ah
Battery Types	Lead-acid (Wet, MF, AGM, GEL)
Protection Features	Reverse polarity protection, over temperature protection
Input Voltage	11.5-23V, DC
Charging Stages	5-stage, Automatic
