CTR Kheos Plus - Mechanical cylinder retainer

Instruction Booklet KHEOS PLUS
12 ENGLISH
EN
PROHIBITED

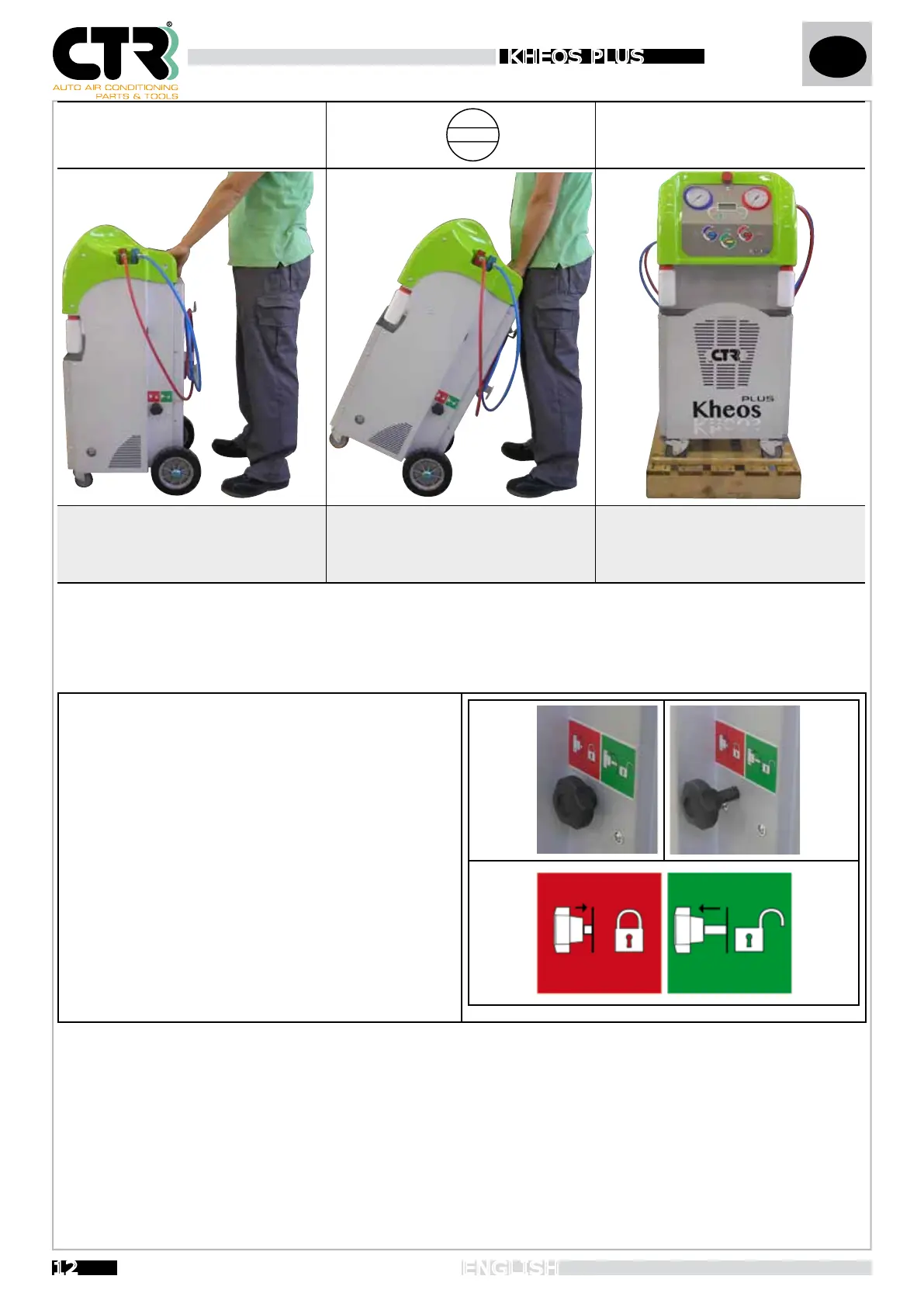

To transport the unit, use the wheels on the base
and push the unit along. Move unit on at surfaces
only. For long distances or uneven oors, apply the
mechanical retainer on the cylinder.
To handle the unit, all the wheels must touch
the ground to ensure the unit remains level.
To lift the unit, use a lift truck with adequate
capacity (see technical specications for
unit’s weight). Use the pallet as support base.
4.1 Mechanical cylinder retainer
The mechanical retainer is designed to prevent involuntary
movements of the refrigerant’s scale.
- Press all the way down to block the cylinder (figure 1)
- Pull all the way to release the retainer. Do not rotate (figure 2)
This high-precision mechanical system retains the cylinder
lifting its weight of the scale.
When this mechanism is in place, the electronics will prevent all
operations and display the message “Remove block”. Remove
block and press ESC for 2 seconds. Accidental application of
the retainer during operation, will be indicated by the message
“Remove block” and immediate stopping of the operation under
way.
B
L
O
C
K
E
D
U
N
B
L
O
C
K
E
D
