-10-

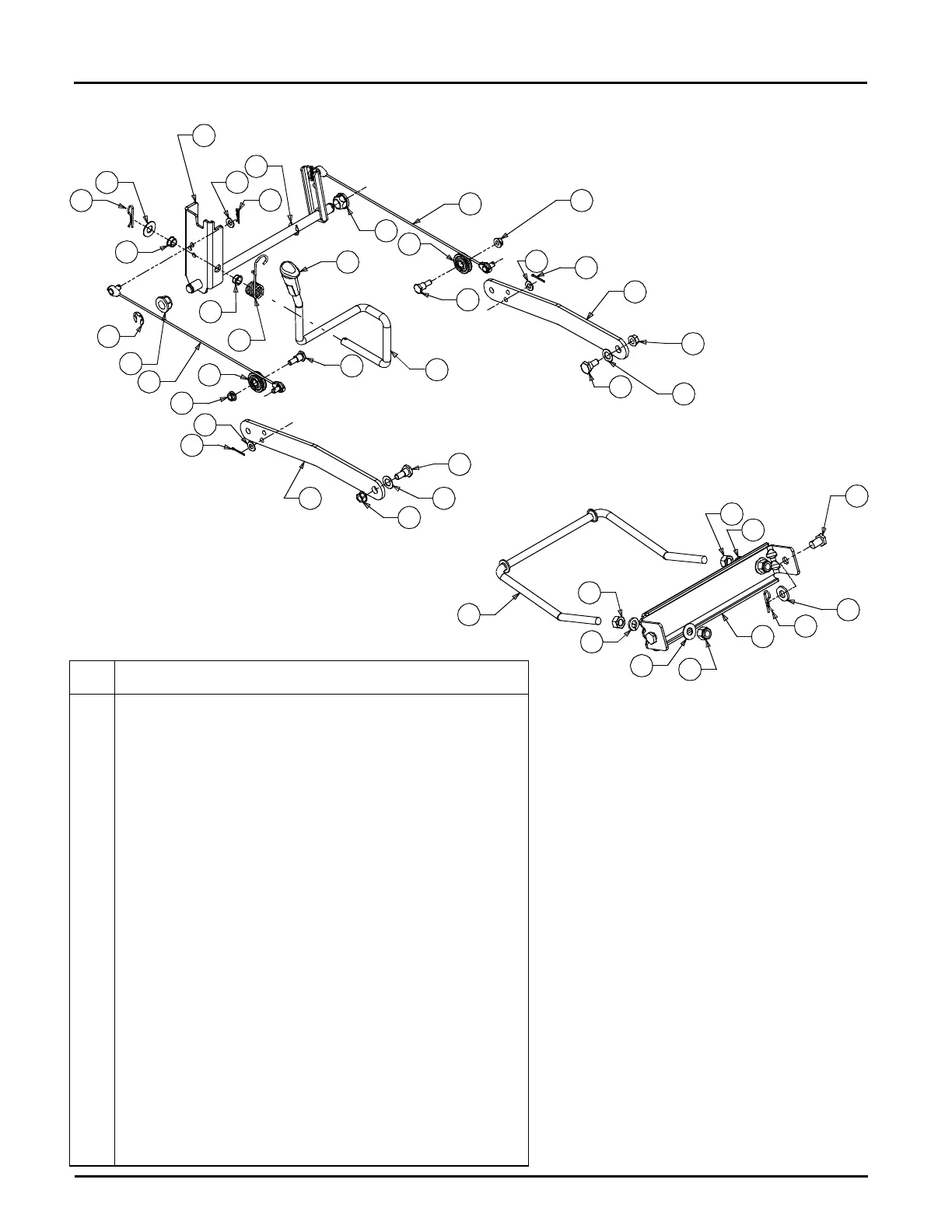

LIFT ASSEMBLY
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1
683-0197B Shaft Assembly, Lift 1
2
711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
3
712-0206 Nut, Hex, 1/2-13, Gr5 2
4 712-0431 Nut, Flange Lock, 3/8-16 2
5 712-3004A Nut, Flange Lock, 5/16-18, Gr5 2
6
712-3083 Nut, Hex Lock, 1/2-13, Gr8, Nylon 2
7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
8 714-0111 Pin, Cotter, 3/32, 1.0 2
9
714-0145A Pin, Click, .092 x 1.64 Lg 2
10
716-0106 E-ring, .625 Dia. Shaft 2
11
731-2111A Knob 1
12
732-0874 Spring, Torsion 1
13
736-0160 Washer, Flat, .53 x .93 x .050 2
14
736-0275 Washer, Flat, .344 x .688 x .065 4
15
736-0921 Washer, Lock, 1/2 , Regular Duty 2
16
736-3019 Washer, Flat, .531 x 1.062 x .134 2
17
736-3084 Washer, Flat, .510 x 1.120 x .060 3
18
738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2
19
738-0143 Shoulder Screw, 3/8-16 2
20
741-0225 Bearing, Hex Flange 2
21
741-0715 Bearing, Flange, Snap .500 ID 2
22
746-0968 Cable, Lift, 16.16 Lg 2
23
747-1111A Handle, Lift 1
24
747-1130B Rod, Deck, Front Adjustment .5" Dia 1
25
756-1154 Pulley, Roller 2
26
783-0678A Lift, Arm 2
27
783-0720A Bracket, Adjustment, Front Deck Rod 1
5
8
4
4
8
5
9
1
7
22
20
25
11
18
14
26
19
13
23
18
14
10
12
21
25
14
22
20
10
21
17
26 13
19
24
15
17
27
16
15
2
3
9
6
3
B
B
A
A
