-9-

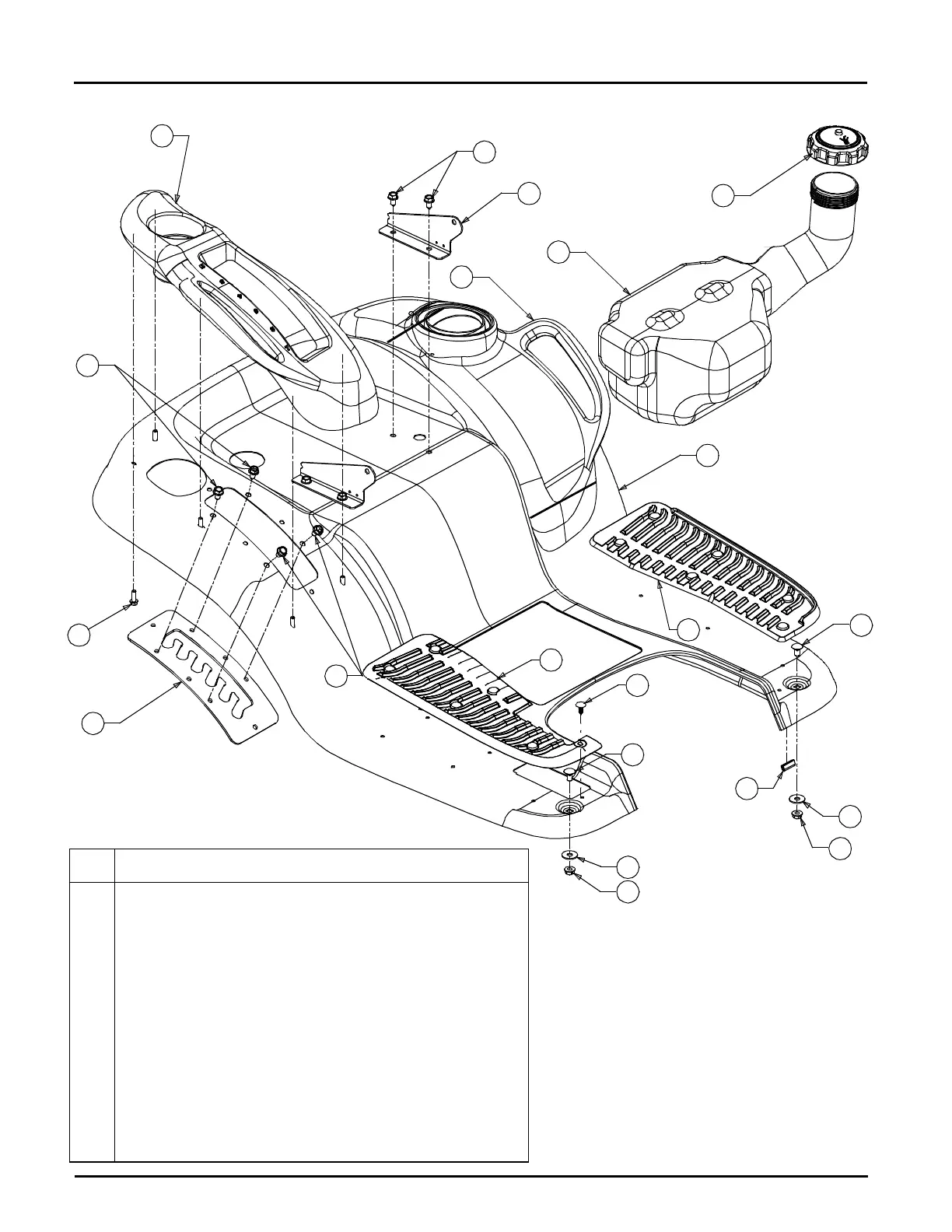

FENDER & FUEL TANK
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0260A Bolt, Carriage, 5/16-18 x .62 Lg 2
2 710-0604A Screw, 5/16-18, 0.625 8
3 710-0895 Screw, 1/4-15, 0.750 9
4 712-3004A Nut, Flange Lock, 5/16-18 2
5 731-0511 Strip, Trim 1.5
6 731-2616 Cover, Fender, RH 1
7 731-2617 Cover, Fender, LH 1
8 736-3078 Washer, Flat, .349 x 1.00 x .063 2
9 783-0677 Bracket, Lift, Adjustment 1
10 783-1461 Fender 1
11 783-1489 Bracket, Seat, Mount 2
12 726-3046 Clip, Ratchet, .250 Dia 12
13 735-0697 Pad, Foot, LH 1
14 735-0698A Pad, Foot, RH 1
15 751-0819 Tank, Fuel 1
16 751-3124B Cap, Fuel 1
10
13
12
14
6
2
3
9
2
1
5
8
1
8
4
4
7
2
11
16
15
