Cub Cadet 1515 Pars Manual

-41-
1
3
4
5
8
10
11
12
9
6
7
2
17
16
18
14
13
15

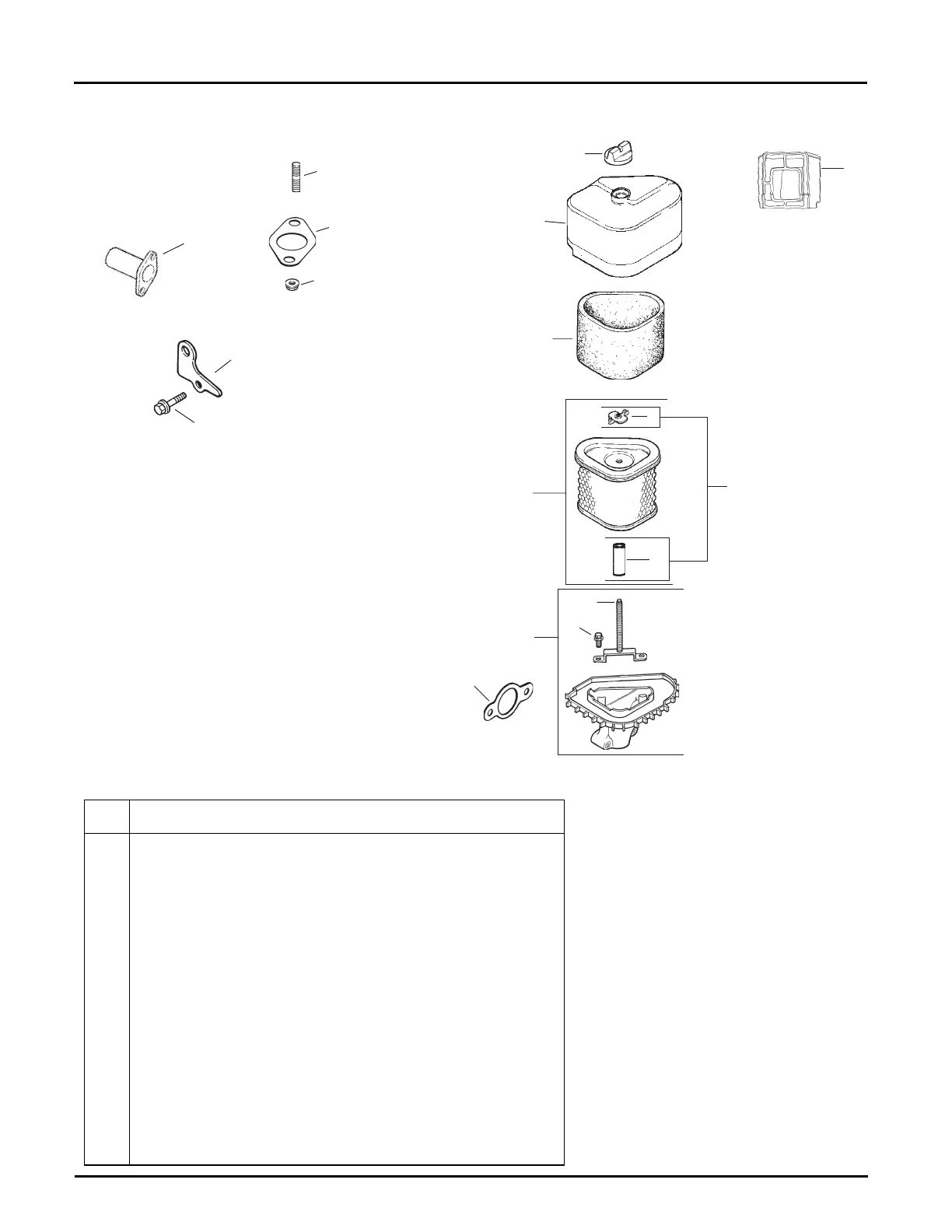

ENGINE AIR INTAKE AND EXHAUST
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-25 341 03-S Knob, Air Cleaner Cover 1
2 KH-12 281 01-S Duct, Air (Model 1517) 1
3 KH-12 096 24-S Cover, Air Cleaner 1
4 KH-12 083 12-S Precleaner 1
5 KH-12 100 08-S Wing Nut 1
6 KH-12 083 10-S Element, Air Cleaner (Includes 5, 7, 8) 1
7 KH-12 743 12-S Kit, Air Cleaner Seal (Includes 5, 8) 1
8 KH-12 032 11-S Seal 1
9 KH-12 094 07-S Base, Air Cleaner (Includes 10, 11) 1
10 KH-12 072 04-S Stud M6 x 1.0 x 79 1
11 KH-12 086 01-S Screw, #10 Hi-Lo Thread Forming 1
12 KH-12 041 02-S Gasket, Air Cleaner 2
13 KH-25 072 05-S Stud M8 x 1.25 x 39 1
14 KH-12 041 03-S Gasket, Exhaust Manifold 1
15 KH-M-841080-S Nut, Hex. Flange M8 x 1.25 1
16 KH-M-645025-S Screw, Hex. Flange M6 x 1.0 x 25 1
17 KH-12 445 06-S Strap, Lifting 1
18 KH-12 382 05-S Pipe, Inlet 1
— KH-12 755 93-S Gasket Set 1

Cub Cadet 1515 Specifications

General

Cutting Height	1.5-4 inches
Deck Material	Steel
Transmission	Hydrostatic
Number of Blades	2
Fuel Tank Capacity	1.5 gallons
Speed Range	0-5.5 mph
Wheel Size	Front: 15x6 inches, Rear: 20x8 inches
