Cub Cadet 1515 Pars Manual

-37-
9
10
6
1
2
3
5
7
1
12
11
13
4
8

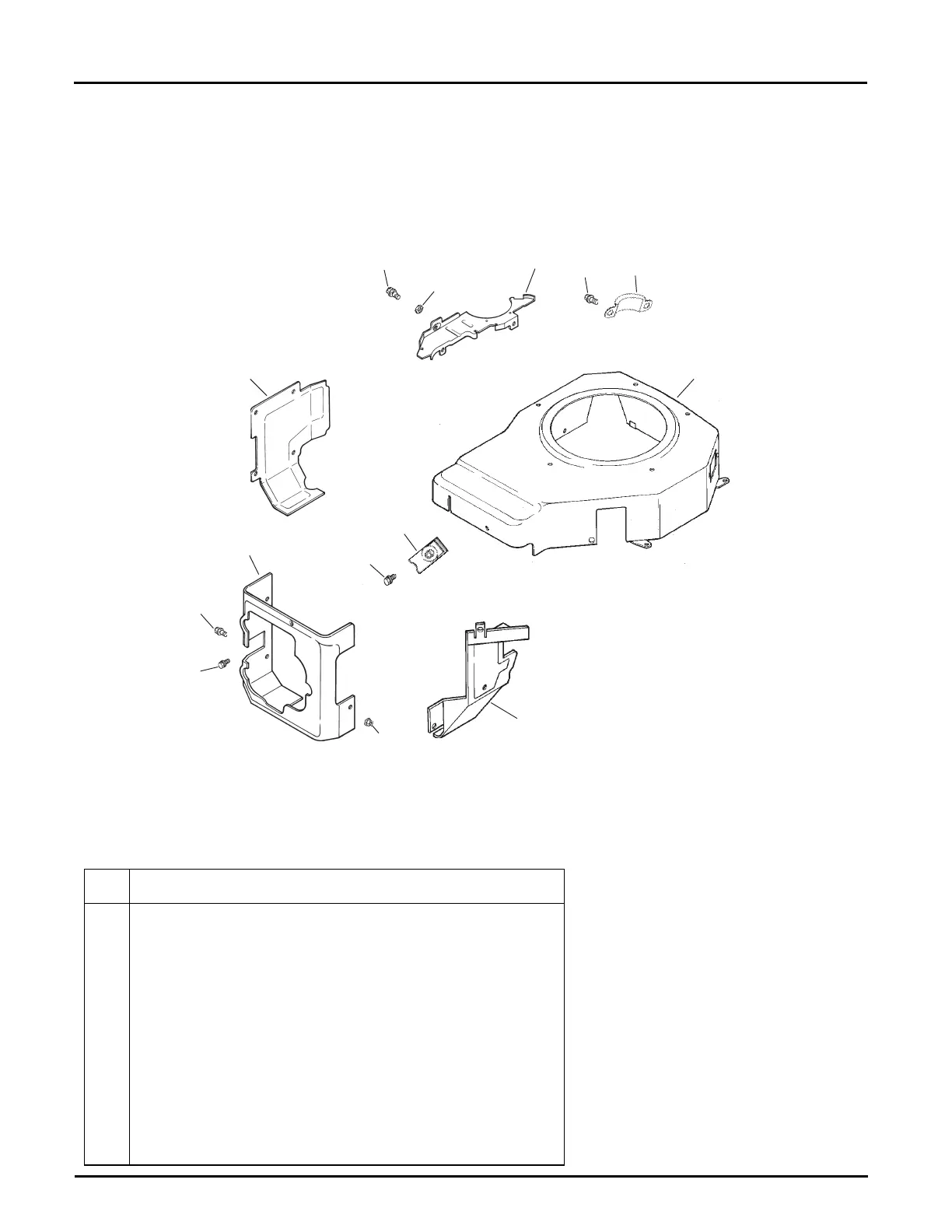

ENGINE BLOWER HOUSING
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 KH-M-545010-S Screw, Hex. Flange M5 x 0.8 x 10 5
2 KH-24 468 10-S Washer, Plain 1/4” 1
3 KH-12 146 07-S Plate, Blower Housing 1
4 KH-M-550010-S Screw, Hex. Flange M5 x 0.8 x 10 2
5 KH-24 096 05-S Cover, Pinion 1
6 KH-12 027 55-S Housing, Blower 1
7 KH-12 063 18-S Baffle, Intake Side 1
8 KH-M-541050-S Nut, Hex. Flange M5 x 0.8 (Model 1517) 3
9 KH-25 154 02-S Clip, Mounting 2
10 KH-M-645016-S Screw, Hex. Flange M6 x 1.0 x 16 1
11 KH-12 063 20-S Baffle, Cylinder Head 3
12 KH-12 086 37-S Screw, Captive Washer M5 x 0.8 x 20 1
13 KH-12 063 19-S Baffle, Cylinder 2
— KH-24 086 18-S Screw, Phillips Hd. 11-16 x 7/8” 2
— KH-X-25-92-S Screw, Phillips Hd. 11-16 x 7/8” 2
