Cast Iron Transmission Disassembly
15A- 7
19. Remove both self tapping screws securing the
brake assembly to the transmission housing
using a 3/8” socket. See Figure 14.
20. Remove the brake assembly.
21. Remove the brake disc.
22. Remove the oil seal from the 9T output shaft.
23. Disassemble and inspect the brake assembly for
damage or wear. See Figure 15.

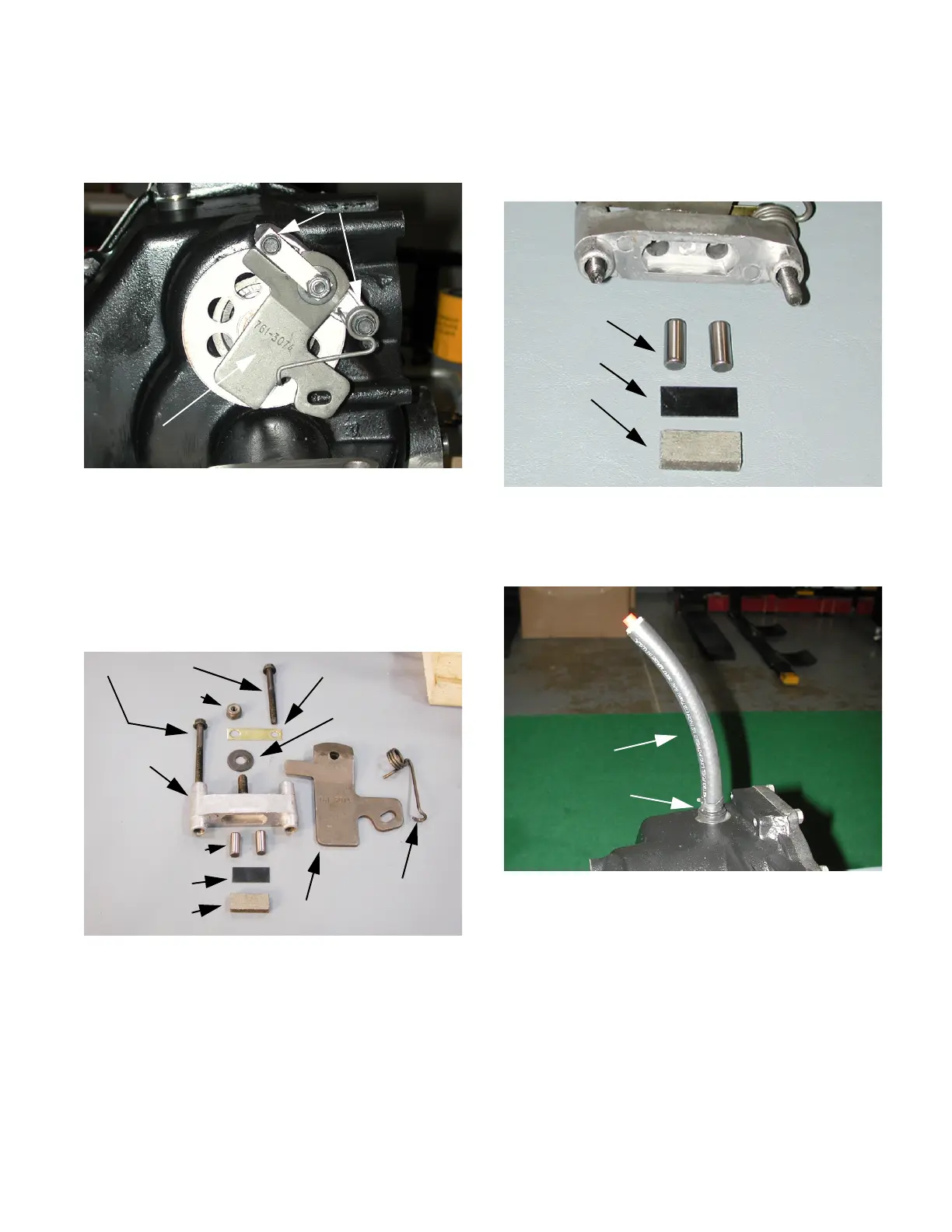

Figure 14
Brake Assembly
Self Tapping Screws
Figure 15
Brake Pad
Hex Nut
Flat Washer
Brake
Actuator Pins
Anti-rotation Bracket
Brake Actuator Arm
Puck Plate
Torsion Spring
Hex Screw
Yoke
NOTE:
Lubricate the actuator pins before reas-
sembling. See Figure 16.
24. Loosen and slide the hose clamp up the vent
tube using a large pair of pliers. See Figure 17.
25. Remove the vent tube from the pipe fitting.
Figure 16
Actuator Pins
Puck Plate
Brake Pad
Figure 17
Hose Clamp
Vent Tube
