Cast Iron Transmission Disassembly
15A- 8
26. Remove all 14 hex bolts securing the left housing
to the right housing using a 1/2" socket. See Fig-
ure 18.
NOTE:
Loctite all the screws during assembly.
27. Slowly remove the left housing from the axle
assembly. See Figure 19.
NOTE:
Loctite sealer is used between the two
case halves during production, and a scraper
may be needed to separate the housings from
one another.
28. Pull on the differential lock actuator using a fish
scale, and make certain the differential engages
with less than 35 pounds of pull. See Figure 20.
29. Remove the hex cap screw securing the actuator
arm to the differential lock assembly using a
7/16” socket. See Figure 21.

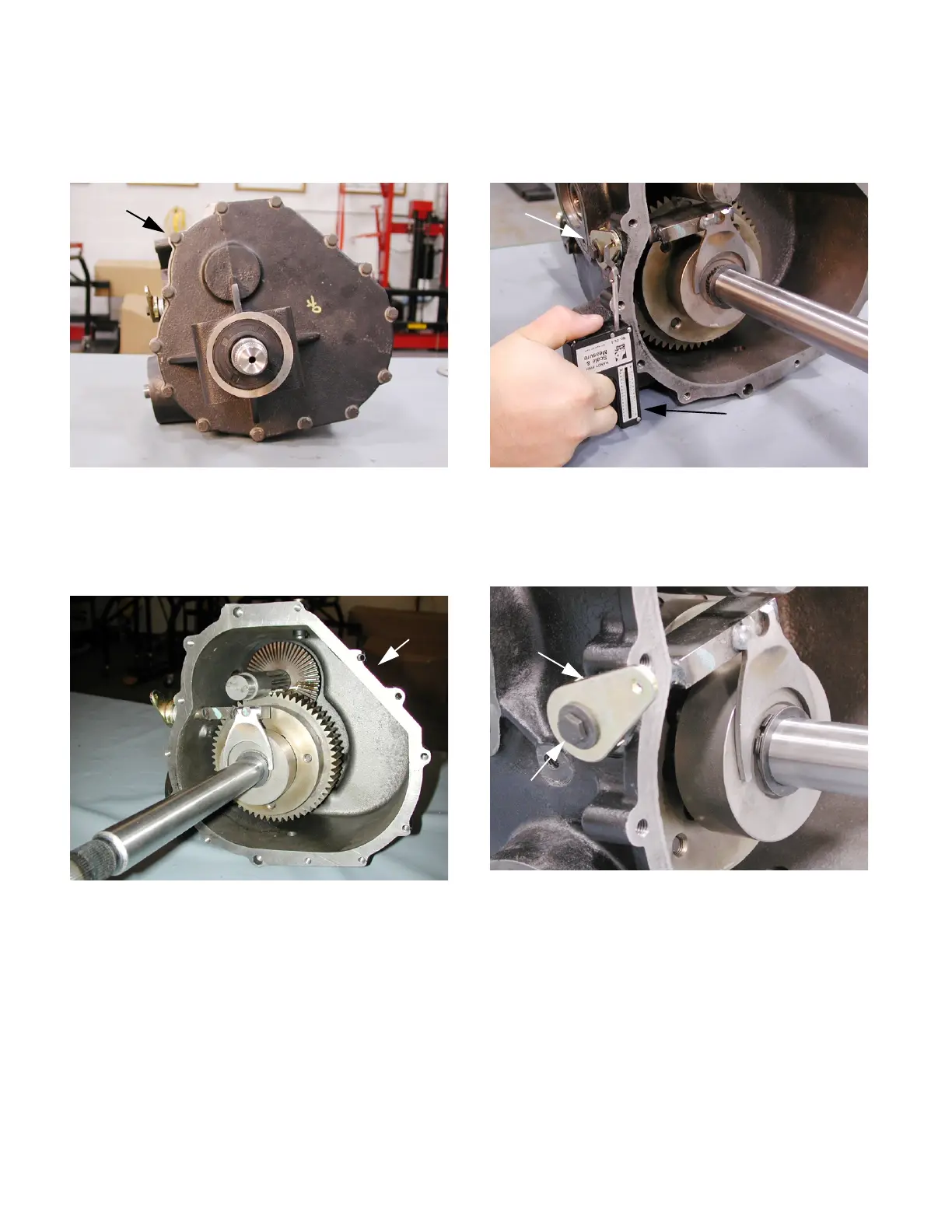

Figure 18
Perimeter Hex Bolts (14)
Figure 19
Right Housing
Half
Figure 20
Differential Lock Actuator Lever
Fish Scale
> 35 Lbs to engage
Figure 21
Actuator Arm
Hex Cap Screw
