INSTRUMENTS/CONTROLS
28

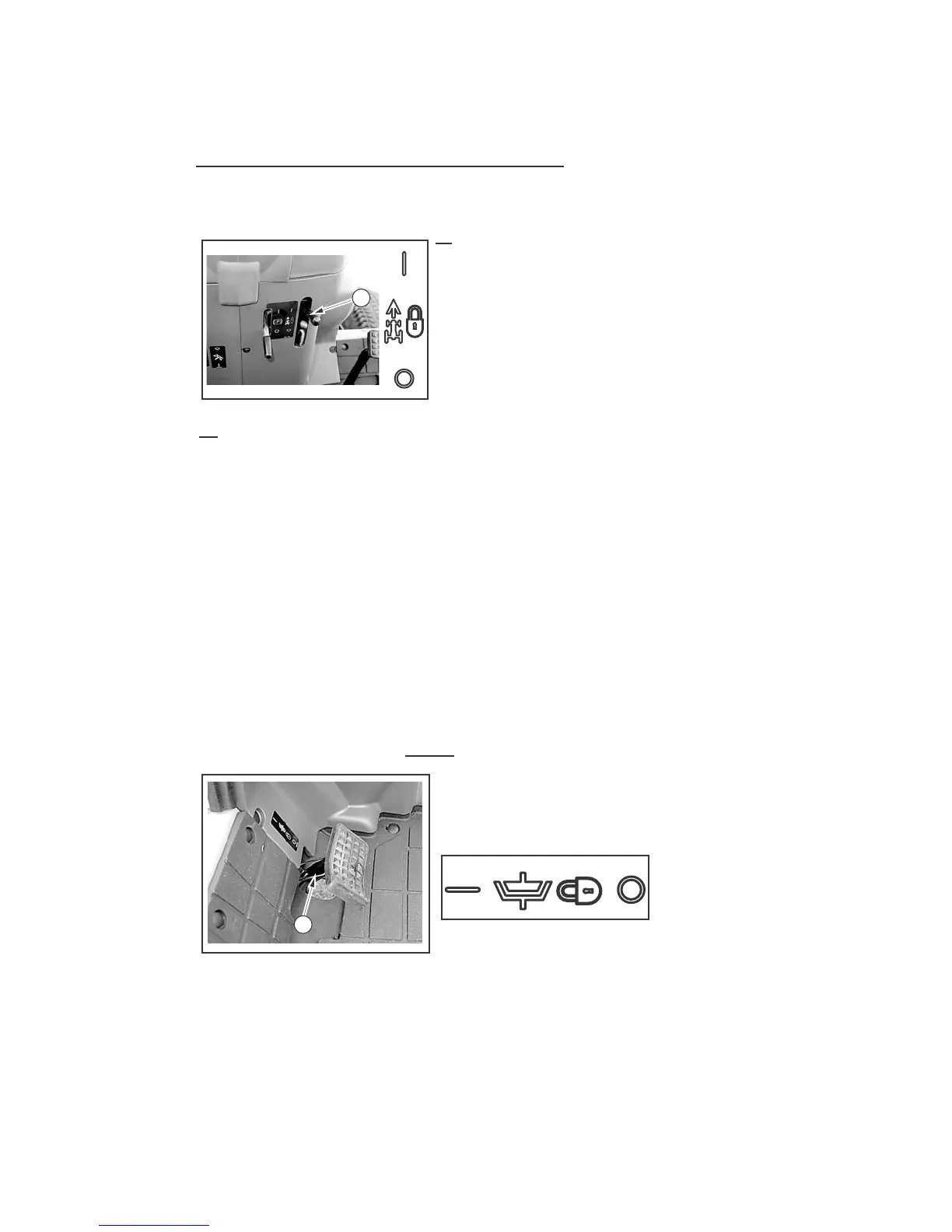

6. SPEED LOCK LEVER (Hydrostatic Drive only)
To keep a constant forward travel speed,
move the lever fully upward, while holding
the speed ratio control pedal at the desired
speed. It does not work in reverse.
7. CLUTCH PEDAL
The clutch must be disengaged when starting the engine, stopping the
tractor, storing the tractor and operating the following levers, gear shift lever,
rear PTO lever, MID PTO lever If EQUIPED, MFD lever, shuttle lever.
7-1. SINGLE CLUTCH (7532)
1. Pedal completely released – Transmission and PTO engaged.
2. Pedal completely depressed – Transmission and PTO disengaged.
7-2. SINGLE CLUTCH (7530)
1. Pedal completely released – Transmission engaged
2. Pedal completely depressed – Transmission disengaged
8. CLUTCH LOCK LATCH For long term storage, lock the clutch
pedal in the disengaged position. This will
prevent the clutch disc from sticking to the
engine flywheel.
