OPERATING INSTRUCTION
47
HYDROSTATIC DRIVE TRANSMISSION
The Hydrostatic drive transmission has a forward/reverse hydrostatic section
and a three-speed range section. This arrangement gives three forward
and three reverse speeds ranges.
Transmission Operation
1. Push the clutch pedal fully and stop the tractor. Move the range shift
lever to the position needed, H, M or L.
2. Release the clutch pedal slowly.
3. Operate the speed ratio control pedal to move the tractor.
To shift from reverse to forward or from forward to reverse, move the
speed ratio control pedal without disengaging the clutch.
IMPORTANT: Before selecting a new range, stop the tractor and push
the clutch pedal. Do not change range when the tractor is moving.
Travel speed should be such that complete control and machine
stability is maintained at all times. Where possible, avoid operating
near ditches, embankments and holes. Reduce speed when turning,
crossing slopes, and on rough, slick, or muddy surfaces.

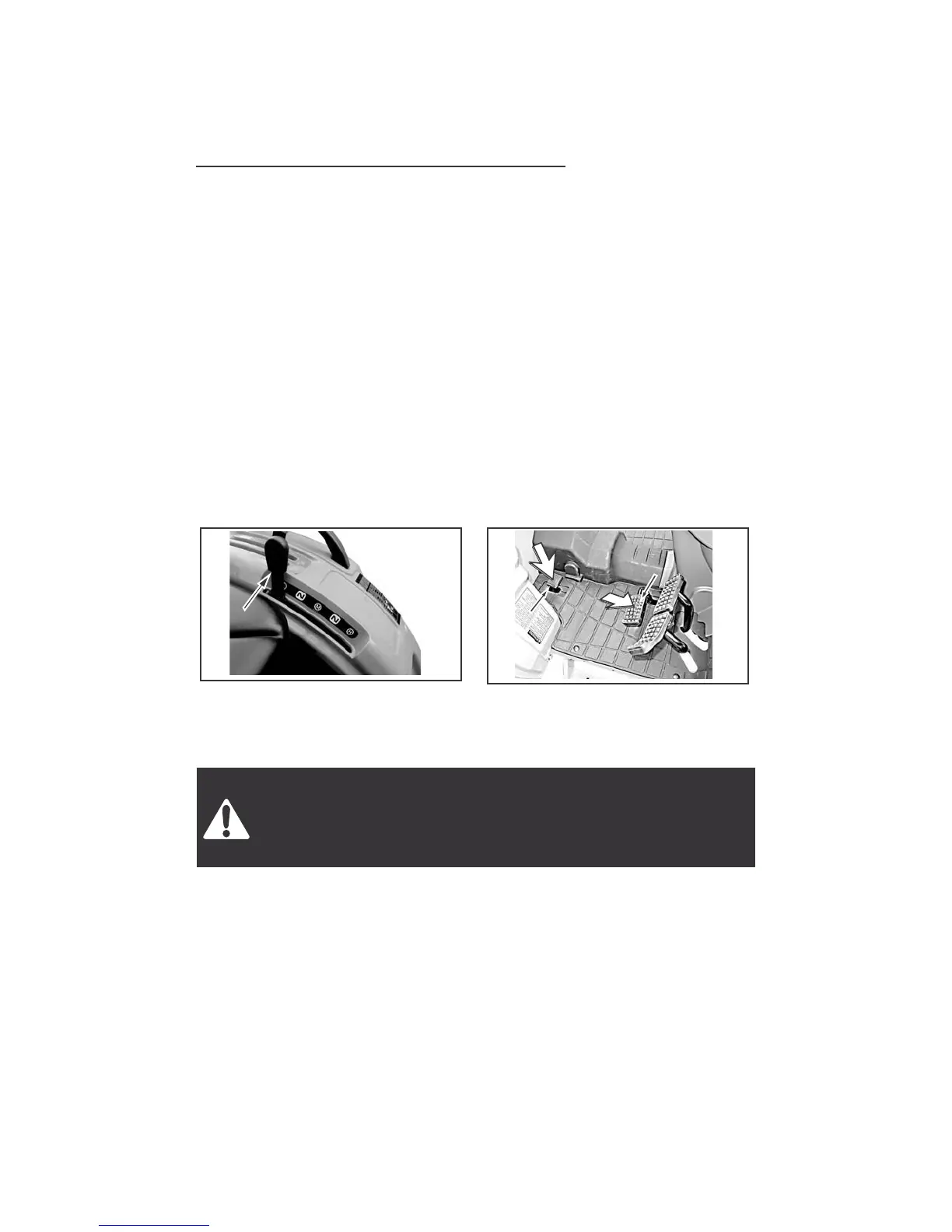

RANGE
SHIFT
LEVER
RANGE
SHIFT
LEVER
SPEED RATIO
CONTROL
PEDAL
(REVERSE)
SPEED RATIO
CONTROL
PEDAL
(REVERSE)
SPEED RATIO
CONTROL
PEDAL
(FORWARD)
SPEED RATIO
CONTROL
PEDAL
(FORWARD)
