Cub Cadet GT 2521 Parts Manual

-24-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 BS-690950 Gasket, Intake 1
2 BS-808257 Kit, Idle Mixture 1
3 BS-690718 Screw, Throttle Valve 2
4 BS-808713 Shaft, Throttle 1
5 BS-693711 Gasket, Carburetor Body 1
6 BS-690882 Pin, Float Hinge 1
7 BS-808798 Valve, Float Needle 1
8 BS-690883 Valve, Choke 1
9 BS-808277 Shaft, Choke 1
10 BS-806438 Jet, Main (Standard) - Cylinder #1 1
11 BS-806439 Jet, Main (Standard) - Cylinder #2
12 BS-690884 Valve, Throttle 2
13 BS-808180 Float, Carburetor 1
14 BS-808712 Carburetor 1
15 BS-806375 Nozzle, Carburetor 1
16 BS-692056 Screw 2
17 BS-690724 Washer, Sealing 1
18 BS-690722 Seal, Choke/Throttle Shaft 2
19 BS-807723 Plug, Carburetor 1
20 BS-808627 Bowl, Float 1
21 BS-808183 Seal, Throttle Shaft 1
22 BS-691516 Cap, Limiter 1
23 BS-692062 Screw 4
24 BS-692070 Spring, Governor 1
25 BS-692069 Spring, Governed Idle 1
26 BS-691536 Link, Throttle 1
27 BS-808454 Bracket, Control 1
28 BS-690236 Lever, Governor Control 1
29 BS-691538 Spring, Governor Link 1
30 BS-691024 Clamp, Casing 1
31 BS-692083 Screw 1
32 BS-690238 Nut, Governor Control Lever 1
33 BS-690239 Bolt, Governor Control Lever 1
34 BS-691542 Link, Choke 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.

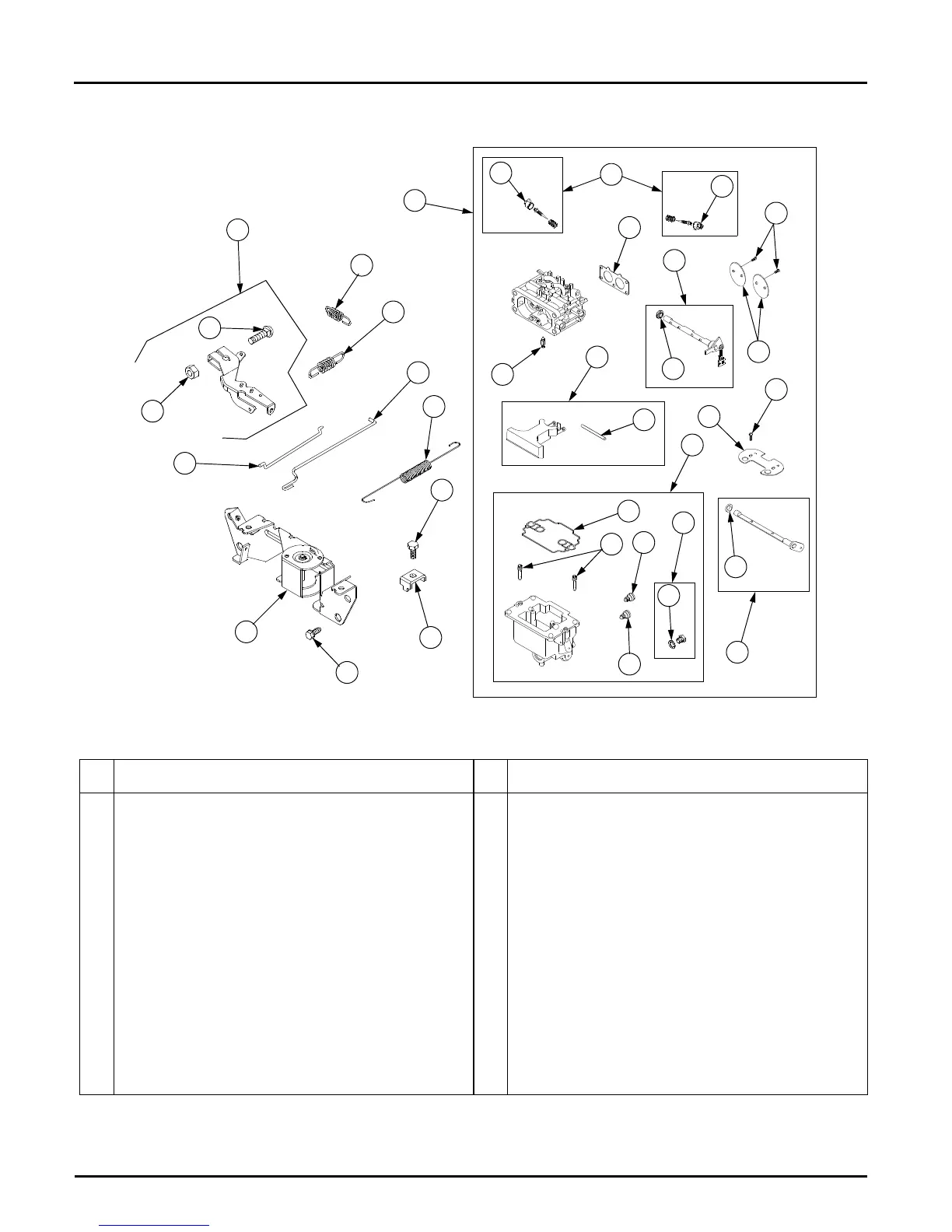

CARBURETOR
1
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
28
24
29
26
30
32
33
23
27
31
7
34
2
22
25
