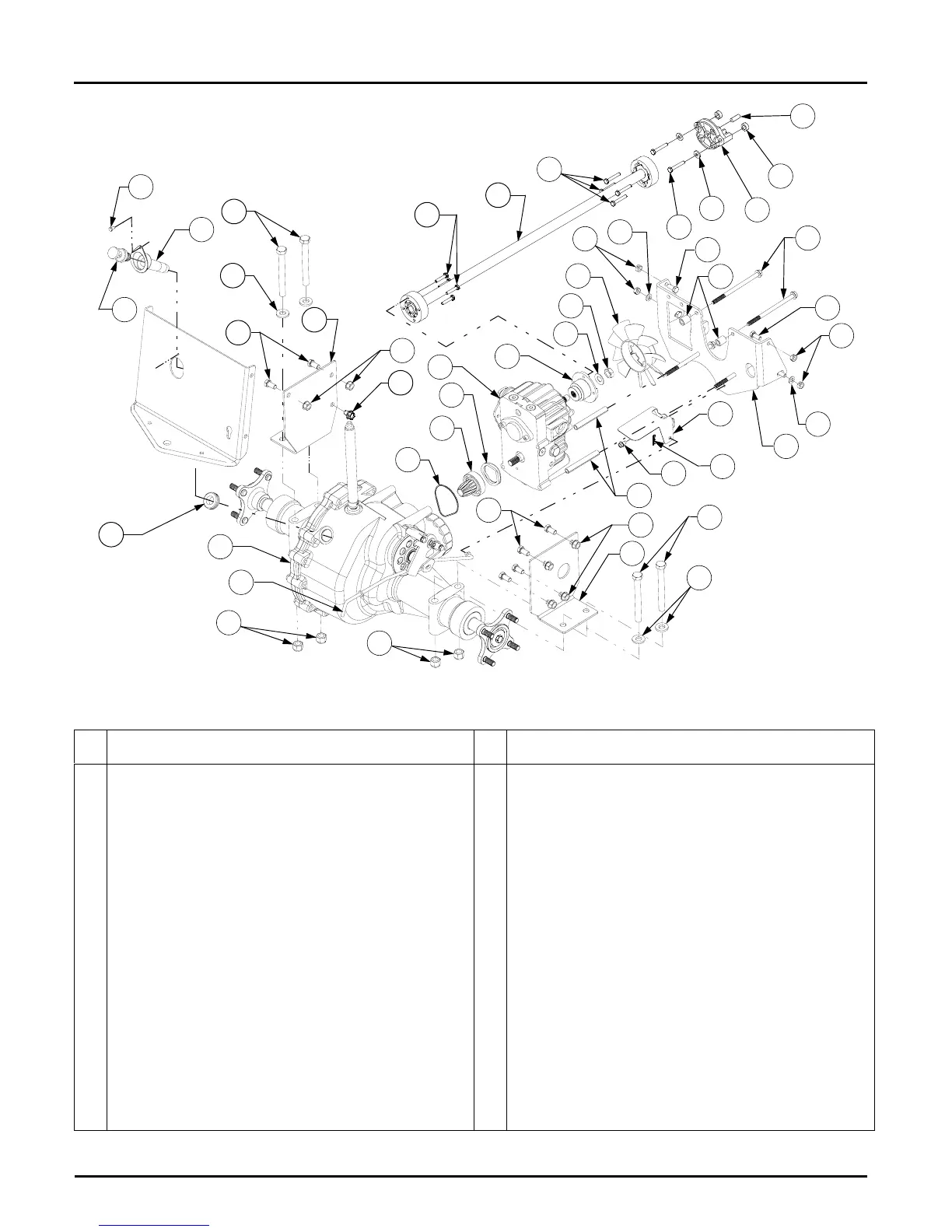

Cub Cadet GT 2521 Parts Manual

-9-
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 603-0707 Bracket, Torque 1
2 617-3002 Gear Assembly, Pinion 1
3 618-3243 Transmission, Hydrostatic 1
4 703-4093 Spring Plate, Hydro Dump 1
5 703-4096 Plate, RH Transmission Flange 1
6 703-4097 Plate, LH Transmission Flange 1
7 710-0216 Screw, Hex Cap, 3/8-16 x .75 GR5 6
8 710-0465 Screw, Hex Cap, 1/2-20 x 4.5 GR5 4
9 710-0599 Scrw, Hx Wsh Hd Tapp, 1/4-20 x .5 1
10 710-0773 Scrw, Hx Wsh Hd Tapp, 3/8-16 x .5 1
11 710-0919 Scrw, Hx Wsh Hd Tapp, 10-16 x .44 1
12 710-1062 Screw, Hex Patch, 1/4-20 x 1.25 GR5 4
13 710-1888 Scrw, Hx Hd Tapp, 5/16-18 x 5.25 4
14 710-3008 Screw, Hex Cap, 5/16-18 x .75 GR5 4
15 710-3288 Screw, Hex Patch, 1/4-20 x 1.62 GR5 4
16 712-0431 Nut, Hex Flange Lock, 3/8-16 6
17 712-3009 Nut, Hex Cntr Lock, 3/8-16 4
18 712-3058 Nut, Hex Nylon Lock, 1/2-20 GR2 4
19 712-3059 Nut, Hex Top Lock Jam, 1/2-20 1
20 717-04125 Shaft, Drive, 31.75 Lg 1
21 719-3096 Adapter, Engine 1
22 721-0519 Seal, Gland 1
23 727-3195 Dipstick, Transmission 1
24 731-3294 Holder, Dipstick 1
25 735-0277A Grommet, Rubber, .75 x 1.063 1
26 736-0253 Washer, Belleville 1
27 736-0275 Washer, Flat, .344 x .688 x .065 2
28 736-0619 Washer, Spring 1
29 736-3019 Washer, Flat, .531 x 1.062 x .134 4
30 747-3147 Rod, Hydro Dump Valve 1
31 748-3093 Adapter, Hydro Pump 1
32 750-3349 Spacer, Hydro, .323 x .443 3.51 2
33 750-3350 Spacer, Hydro, .323 x .600 x .74 2
34 710-3180 Screw, Hex Cap, 5/16-18 x 1.75 GR5 2
35 714-0104 Internal Cotter Pin 1
36 731-3297 Fan, Pump 1
37 736-3008 Washer, Flat, .344 x .75 x .12 2
38 750-0507 Spacer, .38 x .625 x .275 2
39 711-3330 Pin, Locating, .352 Dia x 1.156 1
40 Transmission Assembly, Hydro —
See Pages 10-11 for Parts Info.
1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
DRIVE LINE
1
2
3
4
5
6
7
8
9
10
23
12
13
14
16
17
18
19
20
21
22
11
24
25
26
17
28
29
30
31
32
33
34
7
14
16
27
27
35
36
18
29
8
15
40
37
38
39
