CUBICON Single Plus User Manual
47

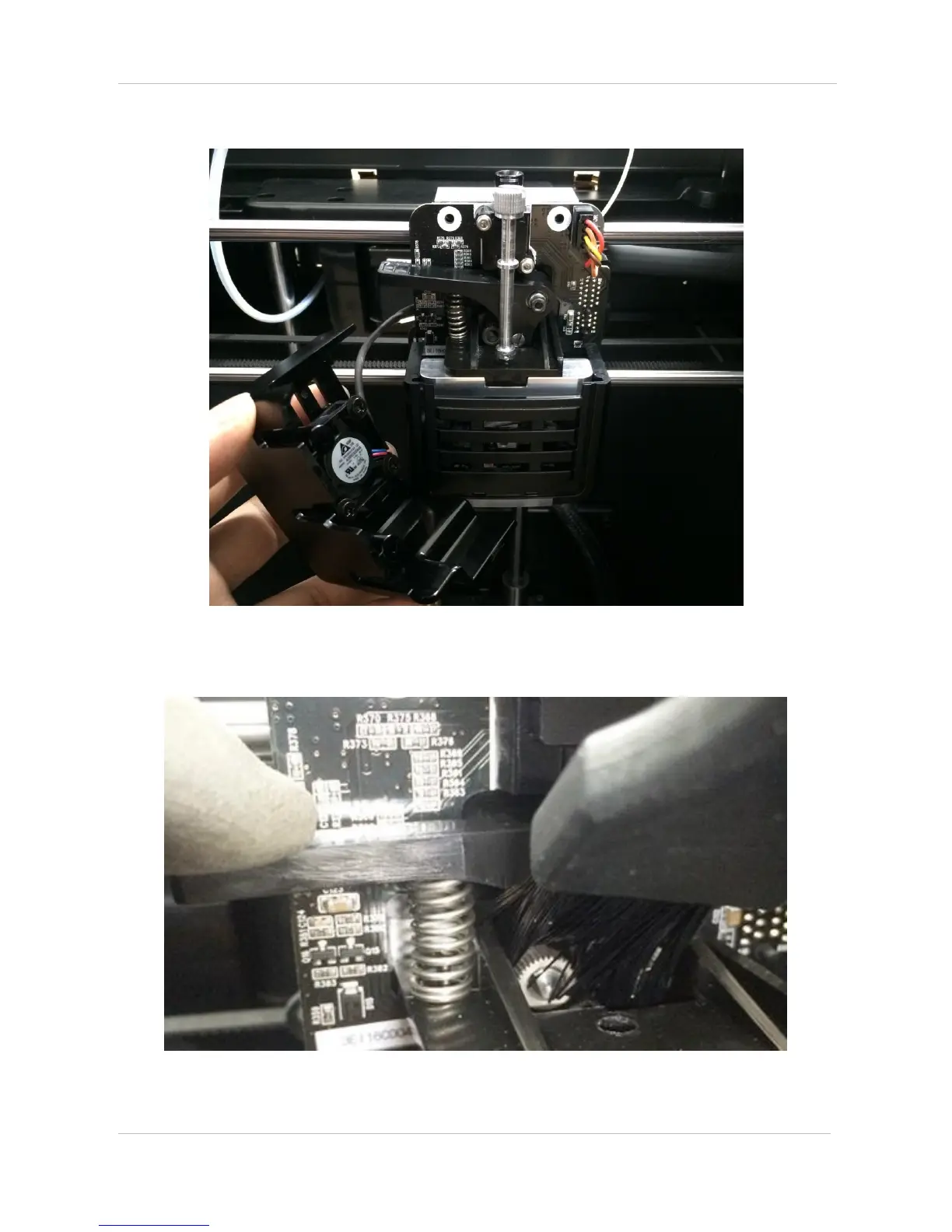

Turn and separate the bolt from cover front in counterclockwise direction with wrench of 2Ø diameter.
Be mindful of a gear fan, which is installed to the cover and separate the cover. Then remove all filament
leftover and filament powder from the gear with the antistatic brush.
Press the handle and clean dusts with antistatic brush.
