CUE touchCUE-5 - Page 12

Wired Touch Panels - User Manual
12© CUE, a.s. | All Rights Reserved.

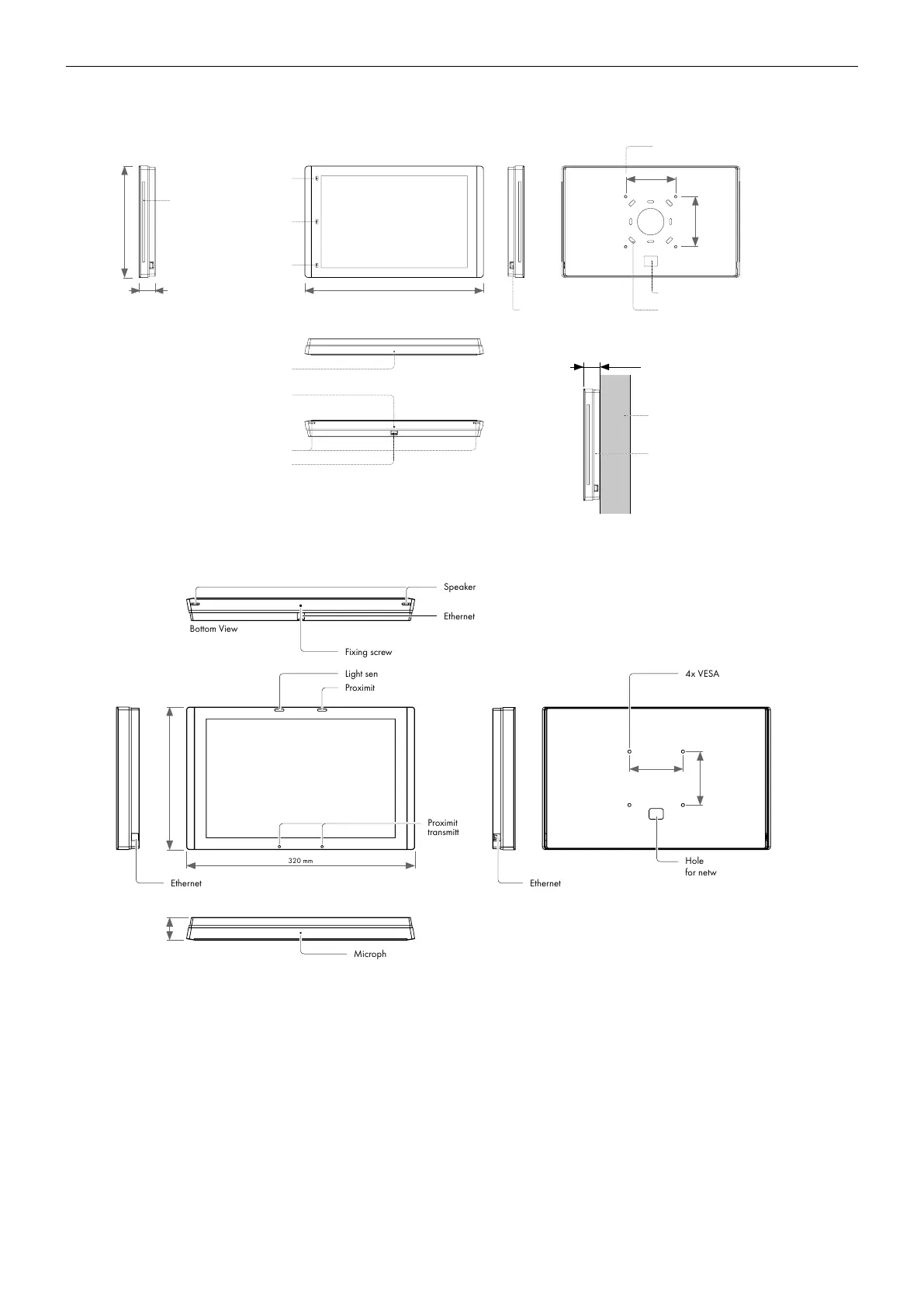

touchCUE-10-M
Proximity sensor transmitter
Bottom view
Light sensor
Proximity sensor receiver
Top view
Rear view
LED indicators
Side viewSide view
Fixing screw
25 mm
Wall
Panel
Installation on the wall
LCD display
with touch sensor
25
167 mm
268 mm
Ethernet cable bushing
Hole for network connector
4x VESA hole
75 mm
75 mm
Ethernet cable bushing
Front view
Holes for installation
onto electrical box
Speakers
Microphone
touchCUE-12-M
LCD display with touch sensor
Microphone
Hole
for network connector
Front View
Top View
Speakers
Bottom View
Fixing screw
320 mm
200 mm32
Light sensor
Proximity sensor receiver
Rear View
4x VESA hole
75 mm
75 mm
Side View
Ethernet cable bushing
Side View
Ethernet cable bushing
Ethernet cable bushing
Proximity sensor
transmitter
