Cuenod NC9 H101A - Safety Unit Wiring; Connector Pinout and Terminal Designations

12/2008 - Art. Nr. 4200 1013 9300A 35
Terminal
Connector
no.
Remote
unlocking
Earth
Nozzle line preheater
Flame detection
230V power supply
Connector
no.
Terminal
Malfunction signal
Igniter
Fan motor
Fuel oil valve
Commissioning
Safety unit

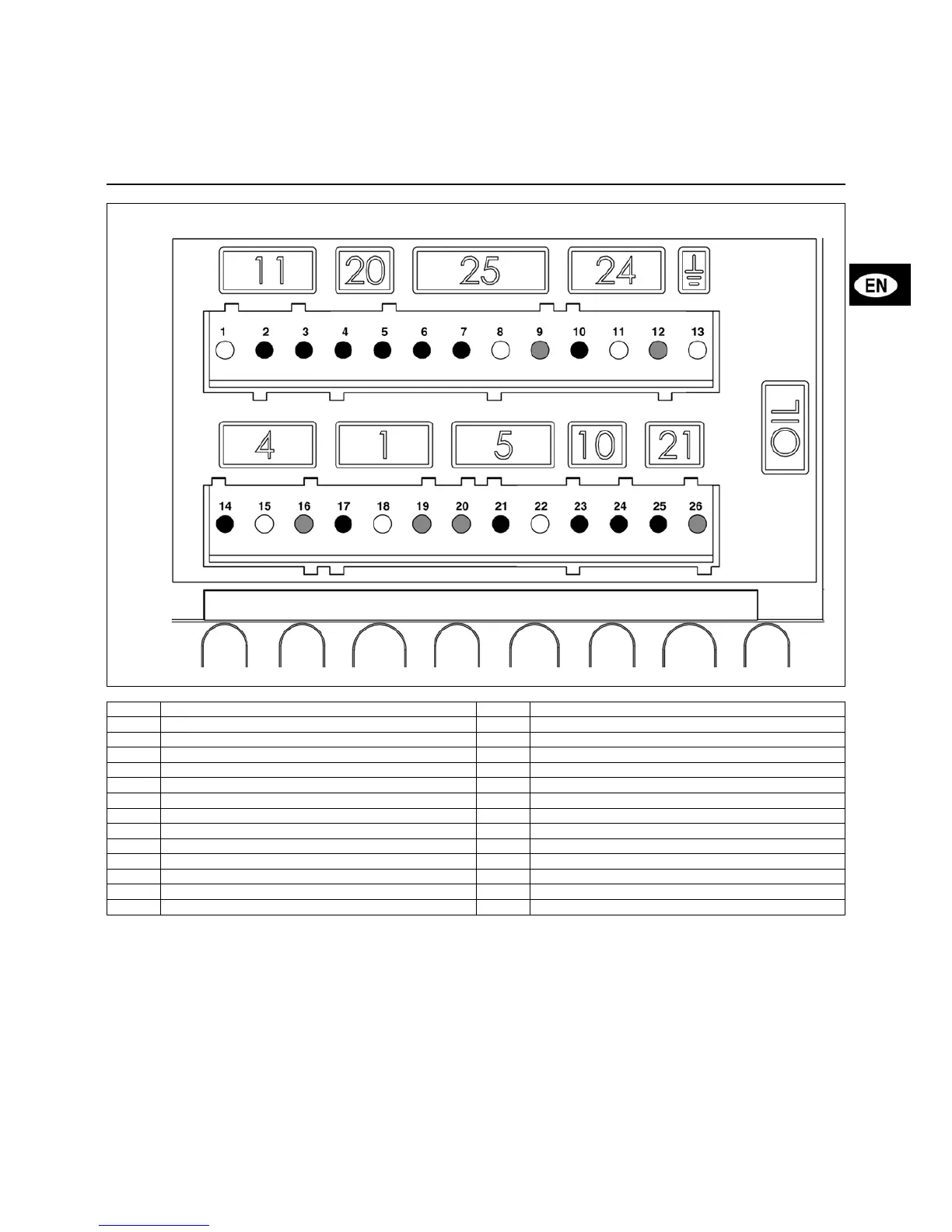

Terminal Designation Terminal Designation
1 Earth 14 Fan motor live
2 Flame detection signal 15 Earth
3 Live 16 Neutral
4 Remote unlocking signal 17 L1 on valve, electrical net side
5Live 18Earth
6 Live 19 Neutral
7 Nozzle line preheater/release contact 20 Neutral
8 Earth 21 Electronic igniter live
9 Neutral 22 Earth
10 Live 23 Reserved (non available)
11 Earth 24 Reserved (non available)
12 Neutral 25 Fault warning light live
13 Earth 26 Neutral
