Installation 11
Cat. No. 01029343
Suggested Piping Installation
CAUTION! Make sure that the plumbing connections to the inlet and outlet are all securely fas-
tened using items, such as pipe hangers, clamp, etc, to prevent damage to the valve.
The plumbing connections should also allow for 1/4” of movement.
NOTE Interconnecting pipe and fittings, bypass valves and isolation valves are not supplied.

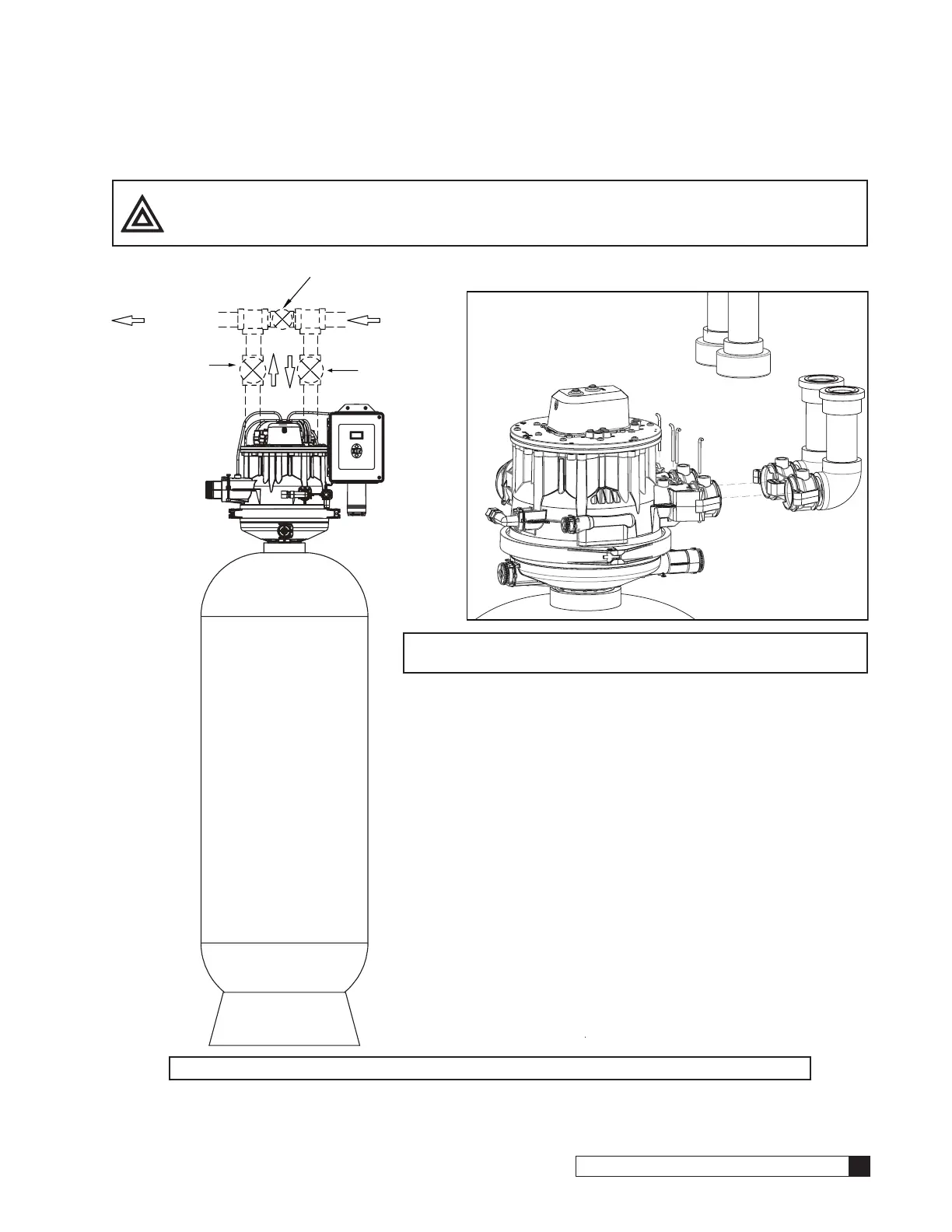

Figure 8. Three-Valve Bypass CTM Single Tank Piping.
Bypass Valve (Normally Closed)
Filtered
Water
Manual Outlet
Valve
Unfiltered
Water
Manual Inlet
Valve
Inlet/Outlet
NOTE Connecting piping must allow the valve to be removed
without interference
