14 Culligan® Culligan Top Mount (CTM) Water Filters
14 Cat. No. 01029343
Drain Line Flow Control (DLFC) and 1.5” Drain Adapter
Table 5. Drain Line Flow Control
Model
Carbon Depth
21” 24” 30” 36” 21” 24” 30” 36”
Backwash
20 gpm 30 gpm 50 gpm 70 gpm 30 gpm 50 gpm 70 pgm 90 gpm
Body
3 Position 3 Position 8 Position 8 Position 3 Position 8 Position 8 Position 8 Position
Inserts
2 Orange,
1 Plug*
3 Orange
3 Orange,
1 Black,
4 Plug*
5 Orange,
1 Black,
2 Plug*
3 Orange
3 Orange,
1 Black,
4 Plug*
5 Orange,
1 Black,
2 Plug*
7 Orange,
1 Black
*The plug’s color is black.

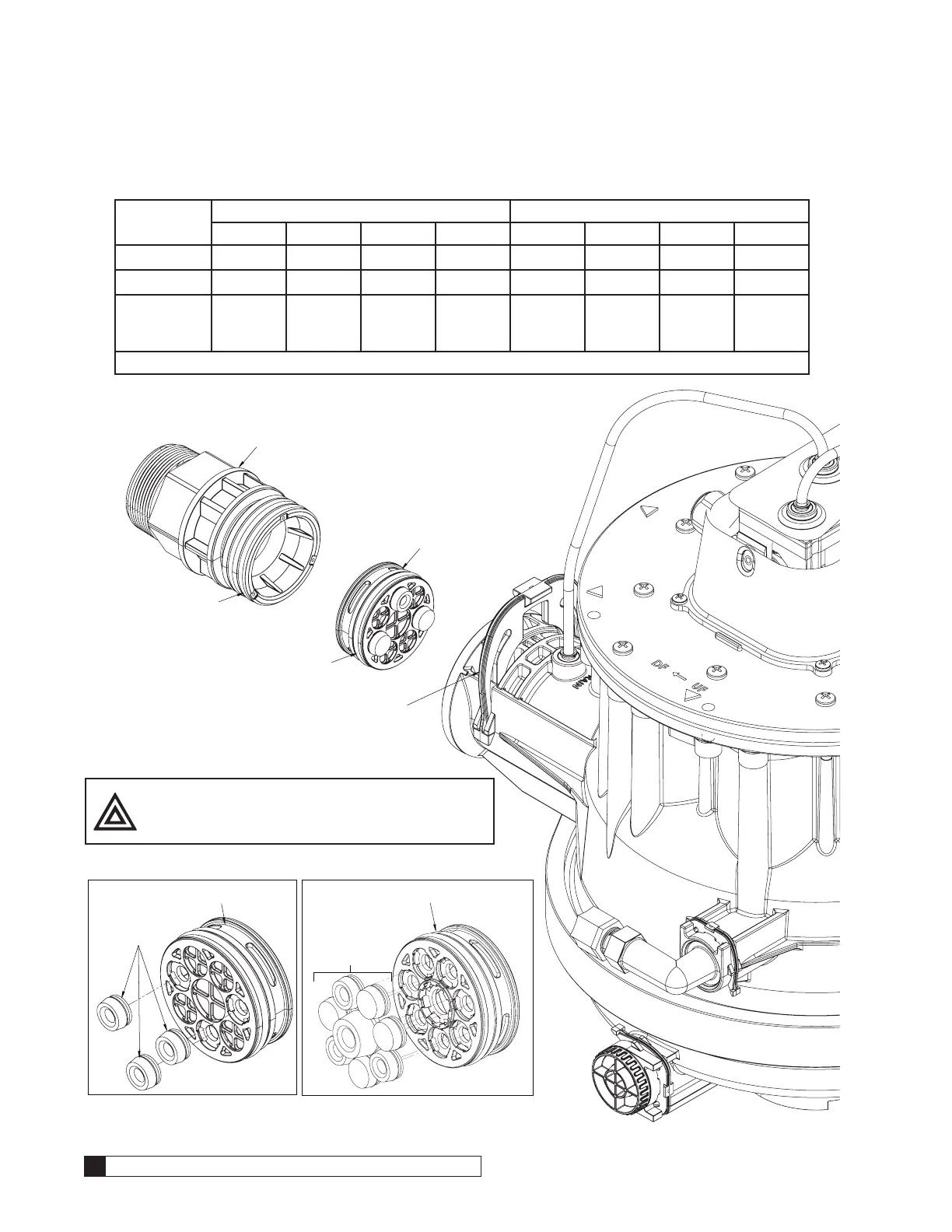

Figure 11.
Push in hard on drain adapter until this
corner is flush with the valve.
Lubricate o-ring
Lubricate
o-ring
Insert drain line flow control in
this orientation.
Push down on clip, while
holding the adapter in place.
CAUTION! Clip was designed to stay attached
to the valve. Do NOT try to detach.
Flow Control Body
Flow
Control
Inserts
8 Position3 Position
Flow
Control
Inserts
Flow Control Body
