Troubleshooting 63
Cat. No. 01029343

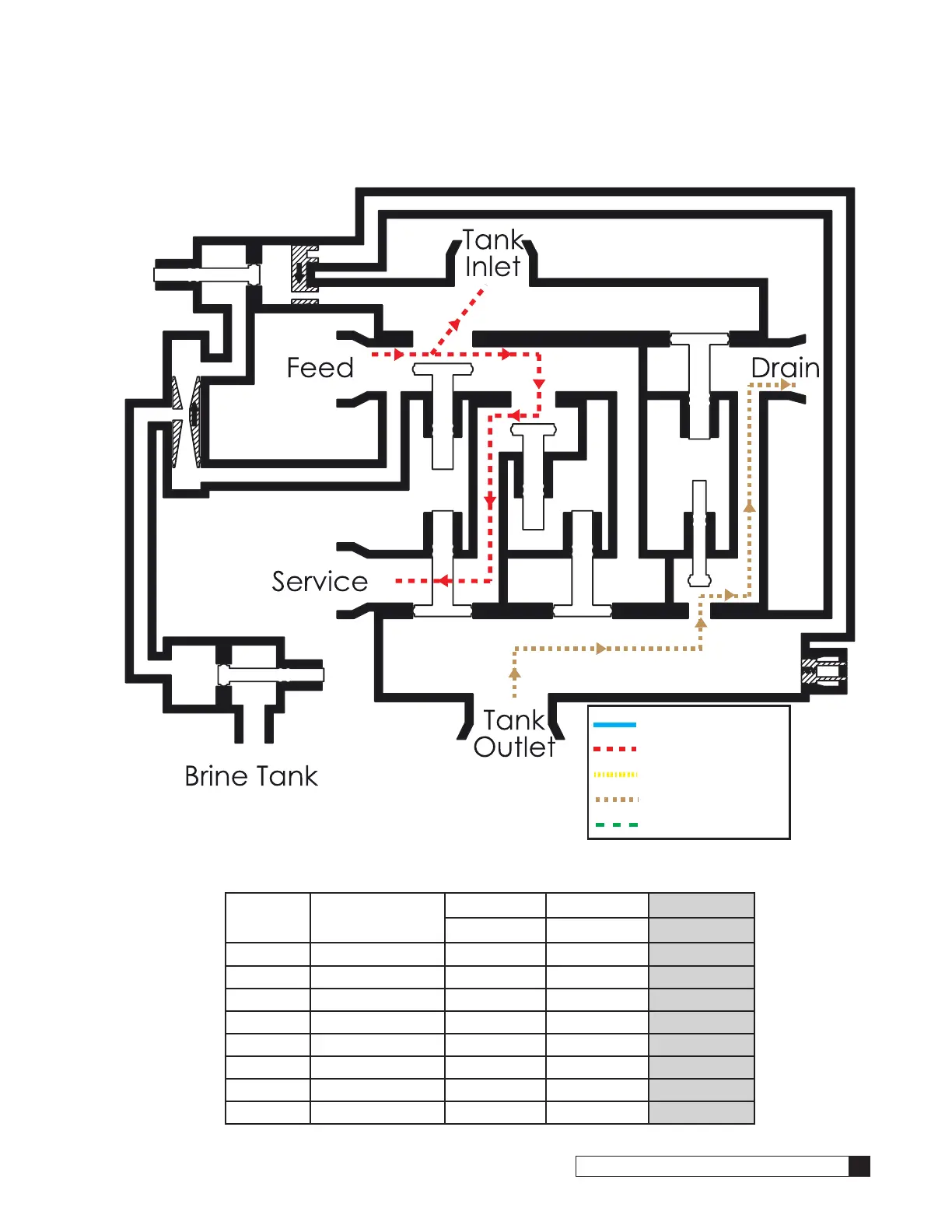

Fast Rinse
Treated
Brine
Hard
Key
Waste
Diluted Brine
7
8
1
2
6
3
4
5
Table 12. Piston Cycle Positions, Fast Rinse
Piston
Number
Piston
Position 1 Position 2 Position 3
Service Backwash Fast Rinse
1 Valve Inlet Up Down Up
2 Valve Outlet Up Down Down
3 Backwash Down Up Down
4 Drain - Backwash Down Up Down
5 Drain - Fast Rinse Down Down Up
6 Hard Water Bypass Down Up Up
7 Refill Down Down Down
8 Brine Draw Down Down Down
